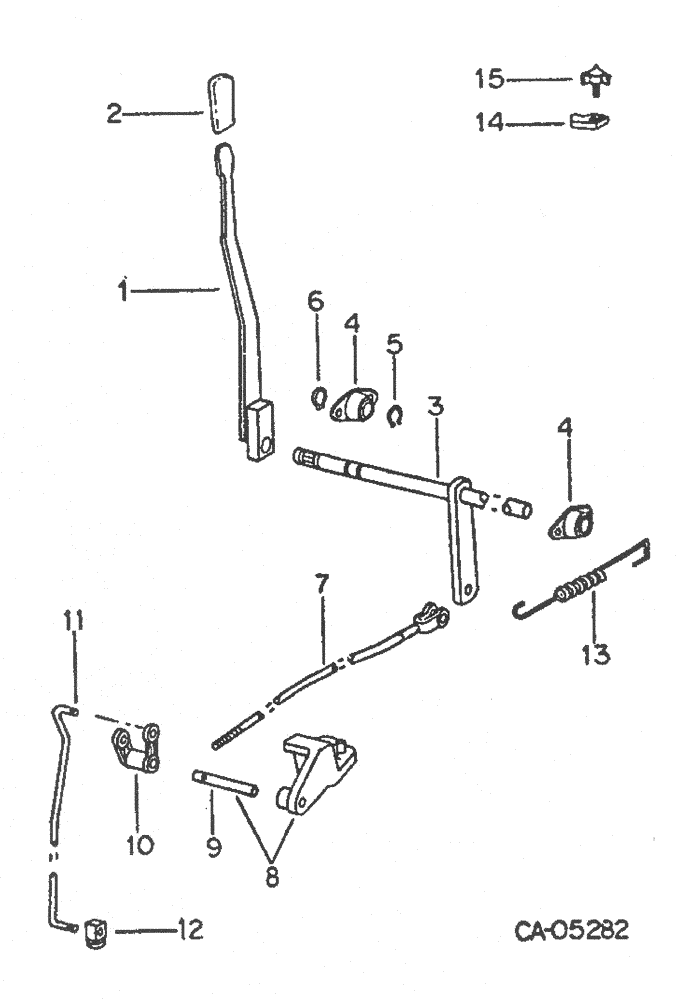

Запчасти Case IH 3788 (07-51) - DRIVE TRAIN, INDEPENDENT PTO CONTROLS, 3588 TRACTOR, 3388 TRACTOR S/N 10385 & ABOVE, 3788 TRACTOR (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
104691C2
LEVER
ASSY, independent PTO control
1шт.
2
1259760C1
BALL KNOB
KNOB, cover
1шт.
3
104244C1
SHAFT
ASSY, independent PTO pivot
1шт.
4
382508R91
BEARING ASSY,0.752" ID x 0.81"
BEARING, flange
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
4шт.
120376
NUT,5/16"-18, G5
4шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
4шт.
5
23090R1
SNAP RING,#75, Ext
Ring, Snap, , independent PTO shaft #75, Ext
3шт.
6
384098R1
SNAP RING,#62, Ext
Ring, Snap, , independent PTO handle #62, Ext
1шт.
7
104421C1
ROD
ASSY, independent PTO front
1шт.
114494
NUT,Jam, 3/8"-24, G5
1шт.
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8 rod end adj
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
865197R1
CLEVIS PIN,3/8" x 1.218"
PIN, 3/8 x 1.218 phc clevis
2шт.
8
104423C1
SUPPORT
ASSY, independent PTO linkage
1шт.
9
120001C1
PIN
valve linkage support
1шт.
20024R1
PIN
3/8 x 1.000 pln hdn dowel
1шт.
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
1/2 x 2-1/4 pln type 5
1шт.
10
104428C1
PIVOT
over center
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
11
104420C1
ROD
independent PTO actuating
1шт.
REF 11, 104420C1 IS NOT PICTURED CORRECTLY. IT HAS A BEND ON ONLY ONE END. IF DLR LOOKING FOR PART BENT ON BOTH ENDS, ORDER 104257C1.
1шт.
12
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8 rod end
1шт.
865197R1
CLEVIS PIN,3/8" x 1.218"
PIN, 3/8 x 1.218 phc clevis
1шт.
114494
NUT,Jam, 3/8"-24, G5
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
13
104354C1
SPRING
IPTO linkage anti-friction
1шт.
14
120015C1
STOP
governor PTO over speed
1шт.
15
399023R2
KNOB
fluted
1шт.
16559R1
WASHER,1/4"
.266 x .625 x .036
1шт.
Выбрано товаров: 32
