Запчасти Case IH 3788 (07-38) - DRIVE TRAIN, TRANSMISSION CONTROL, EXTERNAL, 3788 TRACTORS (04) - Drive Train

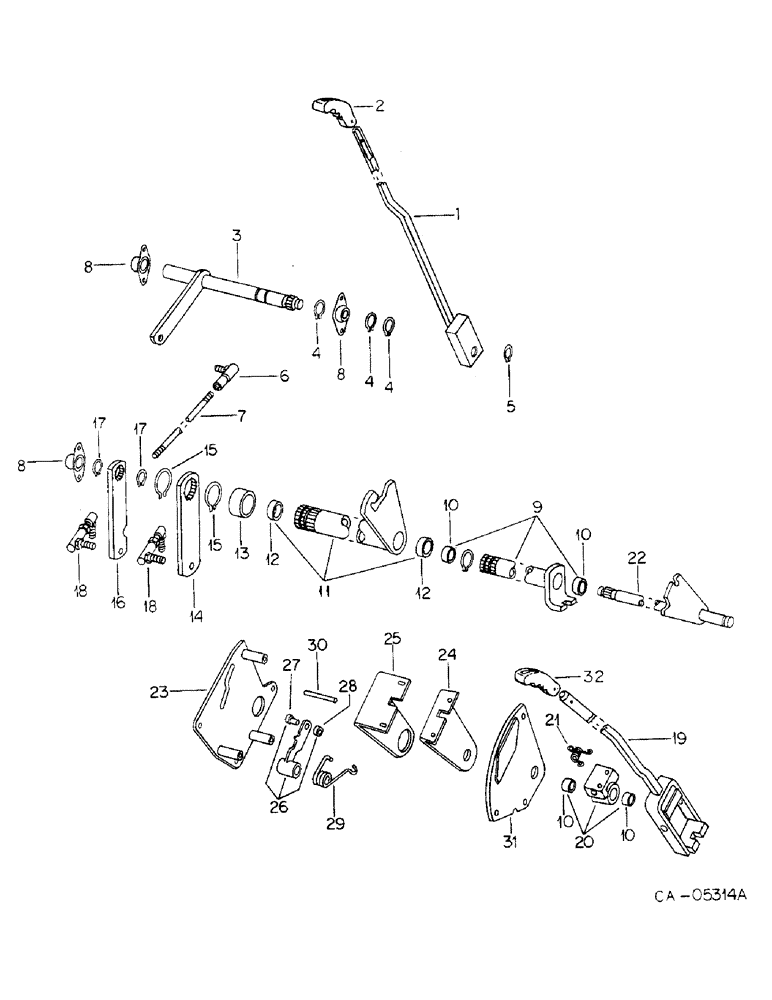

Схема запчастей Case IH 3788 - (07-38) - DRIVE TRAIN, TRANSMISSION CONTROL, EXTERNAL, 3788 TRACTORS (04) - Drive Train
2
4
3
12
4
10
25
12
26
30
17
15
1
10
22
10
7
31
28
8
8
5
32
21
15
17
24
18
8
14
9
20
18
6
27
11
16
29
10
19
13
23
4

Артикул

Название

Примечание

Количество

1

104885C4

HANDLE

ASSY, 3 speed shift

1шт.

2

148841C1

KNOB

3 speed shift handle

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

3

104432C1

PIVOT

ASSY, transmission shift

1шт.

4

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

4шт.

5

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

6

158397H1

BALL JOINT

JOINT, 3/8-24 RH thd ball speed trans

2шт.

118625

NUT

3/8 - NF phc jam type 5

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8 - NF cad p/t lock type 5

2шт.

7

104100C1

ROD

speed transmission

1шт.

8

382508R91

BEARING ASSY,0.752" ID x 0.81"

BUSHING

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

6шт.

120376

NUT,5/16"-18, G5

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

6шт.

9

120480C91

PLATE

ASSY, hi-lo shift

1шт.

10

363768R1

BUSHING

or

4шт.

10

142373C1

BUSHING

4шт.

11

104113C92

PLATE

ASSY, rev shift

1шт.

25883R1

WASHER

SHIM, 1.594 x 2.250 x .054

1шт.

12

487139R1

BUSHING,28.65mm ID x 31.77mm OD x 12.7mm L

2шт.

13

104259C1

SEAL

1шт.

14

104127C1

ARM

rev shift

1шт.

15

233041R1

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8 - NF cad p/t lock type 5

2шт.

16

120478C1

LEVER

hi-lo pivot

1шт.

17

454319R1

RING

retaining

2шт.

18

104110C1

BALL JOINT

JOINT, ball

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8 - NF cad p/t lock type 5

2шт.

19

143888C2

HANDLE

ASSY, range shift

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 phc p/t lock type 5

1шт.

20

104104C91

HUB

ASSY, range shift

1шт.

21

104236C1

SPRING

shift lever

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

22

104880C1

PLATE

ASSY, primary

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln

1шт.

23

120454C1

PLATE

ASSY, primary

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

3шт.

25883R1

WASHER

1.594 x 2.250 x .054

1шт.

24

104118C1

PLATE

rev park shift

1шт.

25

104119C1

PLATE

rev park shift

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

26

104438C91

PAWL

DETENT ASSY, park

1шт.

27

104442C1

ROLLER

rev park detent

1шт.

28

104443C1

ROLLER

rev park detent

1шт.

29

104444C1

SPRING

park detent

1шт.

30

104124C2

CAM

shuttle

1шт.

31

104120C1

PLATE

ASSY, intermediate

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

3шт.

32

148840C1

KNOB

range shift

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

Выбрано товаров: 54
