Запчасти Case IH 3788 (07-22) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

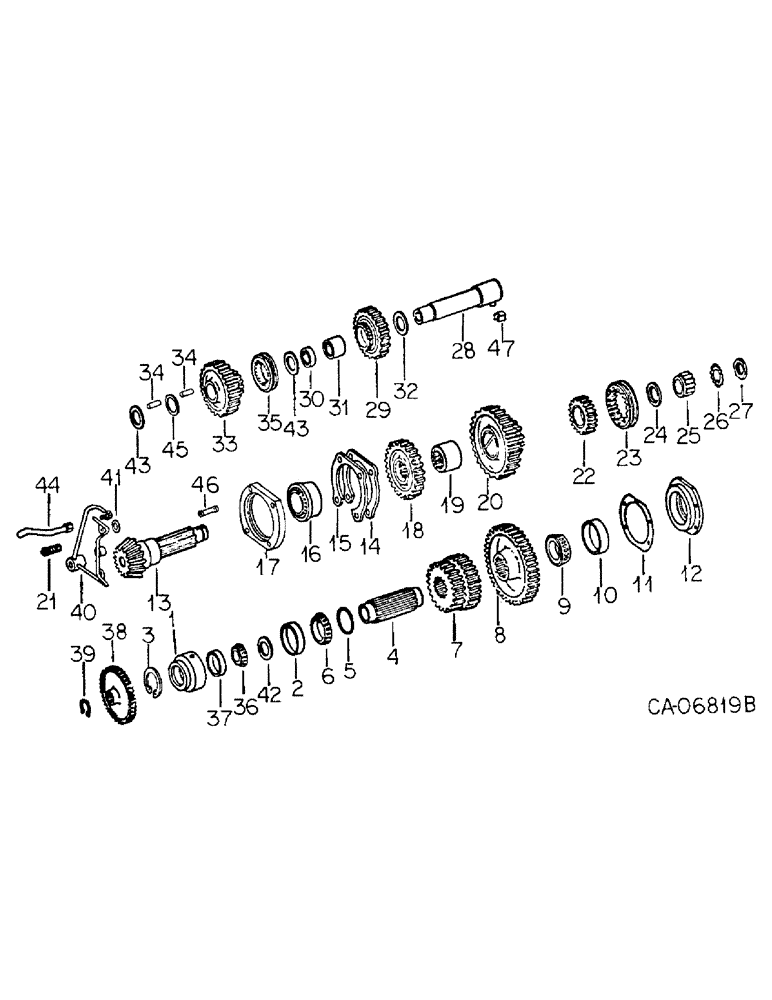

Схема запчастей Case IH 3788 - (07-22) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train
14
17
30
44
46
10
5
42
3
2
40
35
43
31
12
20
6
8
45
21
19
1
18
41
15
9
43
39
37
47
34
33
4
27
7
36
32
26
22
38
25
24
13
23
11
29
16
34
28

Артикул

Название

Примечание

Количество

1

67768C1

CAGE

ASSY, countershaft rear brg, 3588 and 3788 tractors

1шт.

1

68523C1

CAGE

ASSY, countershaft rear brg, 3388 tractors

1шт.

2

610513C1

BEARING CUP,101.6mm OD x 19.84mm W

BEARING, countershaft cup, 3588 and 3788 tractors

1шт.

2

ST2164

BEARING ASSY,90mm OD x 19.99mm W

BEARING, countershaft cup, 3388 tractor

1шт.

3

26522R1

SNAP RING,4.625", Int, #462

Ring, Snap, , brg cage rear 4.625", Int, #462

1шт.

4

67770C1

SHAFT

COUNTERSHAFT, 3588 and 3788 tractors

1шт.

4

531799R1

SHAFT

COUNTERSHAFT, 3388 tractor

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap, 3388 tractor

1шт.

6

364465C91

BEARING ASSY,3.47" ID x 4" OD x 1"

BEARING ASSY, countershaft cone, 3588 and 3788 tractors

1шт.

6

ST2010

BEARING ASSY,52.39mm ID x 25.4mm W

countershaft cone, 3388 tractor

1шт.

7

67771C1

GEAR

low drive, 28T, 3588 and 3788 tractors

1шт.

7

528681R1

GEAR

low drive, 28T, 33T, 3388 tractor

1шт.

8

127456C1

GEAR

constant mesh, 50T, 3588 tractor

1шт.

8

406028R1

GEAR

constant mesh, 50T, 3388 tractor

1шт.

8

67772C1

GEAR

constant mesh, 48T, 3788 tractor

1шт.

9

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

ASSY, countershaft cone, 3588 and 3788 tractors

1шт.

9

625742C91

BEARING

ASSY, countershaft cone, 3388 tractor

1шт.

10

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, countershaft cup, 3588 and 3788 tractors

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup, 3388 tractor

1шт.

11

67603C1

SHIM

countershaft bearing, .004/.005 (Or as required)

1шт.

11

67604C1

SHIM

countershaft bearing, .0299 (Or as required)

1шт.

11

67605C1

SHIM

countershaft bearing, .012 (Or as required)

2шт.

11

67606C1

SHIM

countershaft bearing, .007 (Or as required)

1шт.

11

67607C1

SHIM

countershaft bearing, .0035/.0025 (Or as required)

1шт.

12

67598C1

CAGE

countershaft frt brg. 3388 tractor

1шт.

12

67773C1

CAGE

countershaft front brg, 3588 and 3788 tractors

1шт.

NLS

NO LONGER SERVICED

4шт.

13

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, matched set, 3388 & 3588 tractors, See end of unit for details

1шт.

13

142258C91

GEAR SET

PACKAGE, bevel gear and pinion, matched set, 3788 tractors, Order package, 1268693C91, See end of unit for details

1шт.

14

380283R2

SHIM

main shaft brg, .004

1шт.

15

380284R2

SHIM

main shaft bearing, .007 (Or as required)

2шт.

16

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

ASSY, main shaft rear

1шт.

17

135770C2

RETAINER

main shaft rear brg

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

18

138764C2

GEAR

reverse driven, 35T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

67766C1

GEAR

ASSY, hi-lo driven, 3588 and 3788 tractors

1шт.

20

528683R11

GEAR

ASSY, hi-lo driven, 3388 tractor

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket upper

2шт.

406579R1

WASHER

lub tube mtg bracket

1шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

530137R91

BEARING ASSY,40mm ID x 77.62mm OD x 32.38mm W

main shaft front, 3388 and 3588 tractors

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front, 3788 tractors

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

mainshaft

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT ASSY, reverse idler, Order package, 1258434C91

1шт.

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x .625 pln hdn dowel

1шт.

29

393523R1

GEAR

reverse idler, 30T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust, .100 thick

1шт.

32

1250218C1

THRUST WASHER

idler gear thrust, .125 thick

1шт.

33

NSS

NOT SOLD SEPARAT

GEAR, reverse drive, 34T, Order package, 1258434C91

1шт.

34

134546C1

NEEDLE,Needle, 7.5mm OD x 34.92mm L

PIN, roller bearing needle, Order package, 1258434C91

38шт.

35

393524R1

COLLAR

forward reverse shift

1шт.

36

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, IPTO driven shaft, 3588 and 3788 tractors

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft, 3388 tractor

1шт.

37

663558R1

BEARING CUP

BEARING, IPTO driven shaft cup, 3588 and 3788 tractors

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup, 3388 tractor

1шт.

38

128044C1

GEAR

pump drive, 61T, 3588 and 3788 tractors

1шт.

38

128064C1

GEAR

pump drive, 61T, 3388 tractor

1шт.

39

233041R1

SNAP RING,#156, Ext

Ring, Snap, , pump drive gear, 3588 and 3788 tractors #156, Ext

1шт.

39

152450R1

SNAP RING,#125, Ext

Ring, Snap, , pump drive gear, 3388 tractor #125, Ext

1шт.

40

68688C1

TUBE

lub pressure, 3388 and 3588 tracors

1шт.

40

138688C1

TUBE,214.38, 118.1 mm Length

ASSY, lub pressure, 3788 tractors

1шт.

41

67745C1

SEALING RING

RING, main shaft fitting

1шт.

42

67778C1

SPACER

IPTO shaft rear bearing

1шт.

43

127325C1

THRUST WASHER

reverse idler thrust

2шт.

44

67748C2

TUBE

diff pressure lub rear

1шт.

45

127326C3

WASHER

bearing retainer

1шт.

46

68057C1

TUBE,0.38" ID, 0.625" OD, 1.6" Length

lube jumper, 3788 tractor

1шт.

47

127562C1

PLUG

lube oil

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, 3388 and 3588 tractors, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHAFT, 13T

1шт.

NSS

NOT SOLD SEPARAT

BEVEL GEAR, 51T

1шт.

380283R2

SHIM

1шт.

380284R2

SHIM

2шт.

529464R1

RETAINER

2шт.

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

1шт.

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

1шт.

359082R2

NUT

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

142258C91

GEAR SET

PACKAGE, bevel gear and pinion, 3788 tractors, Order package, 1268693C91, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHAFT, 11T

1шт.

NSS

NOT SOLD SEPARAT

GEAR

1шт.

NSS

NOT SOLD SEPARAT

TAG

1шт.

1258434C91

PACKAGE

reverse idler shaft, Consists of ref. nos. 28, 29, 30, 31, 32, 33, 34, 35, 43, 45 & 47 plus instructions

1шт.

1277023C91

STRIPPER PACKAGE

PACKAGE, range transmission bearing improvement service, 3388 tractors, Consists of

1шт.

1277022C1

CAGE

ASSY, countershaft rear bearing

1шт.

19955R1

PIN,1/4" x 1/2", Coiled

1шт.

1268527C91

ROLLER BEARING,2.4705" ID x 4.001" OD x 1"

countershaft rear cone

1шт.

1268528C1

BEARING CUP,2.4705" ID x 4.001" OD x 1"

countershaft rear cup

1шт.

67770C1

SHAFT

COUNTERSHAFT

1шт.

127456C1

GEAR

constant mesh range, 50T

1шт.

67771C1

GEAR

lo-rev drive, 28-33T

1шт.

67773C1

CAGE

countershaft frt brg

1шт.

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

countershaft frt cone

1шт.

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, countershaft frt cup

1шт.

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

BEARING, IPTO shaft rear cone

1шт.

ST991

BEARING CUP

BEARING, IPTO shaft rear cup

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, installing

1шт.

If tractor has been changed per bulletin 54329, brgs are #166957R91, and 205369R91. If not, old packaging number was 146622C91 not available but some are available by dealer search.

1шт.
