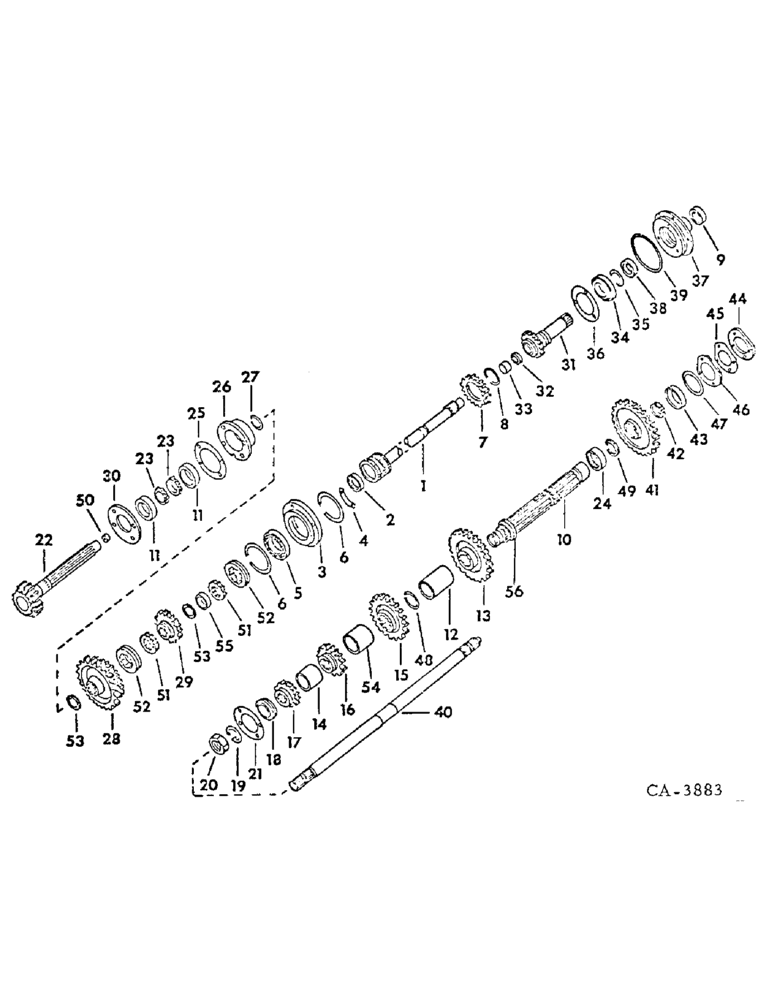

Запчасти Case IH 3788 (07-20) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING, 3788 TRACTORS (04) - Drive Train

1

68040C1

SHAFT

transmission drive

1шт.

2

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING, main shaft front

1шт.

3

68041C1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

4шт.

5

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg cage int snap

2шт.

7

68042C1

GEAR

constant mesh drive, 28T

1шт.

8

68623C1

RING

constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

148951C2

SHAFT

COUNTERSHAFT, LH thread, Replaces 71484C1 countershaft RH thread by also ordering LH thread nut 148952C1

1шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup

2шт.

12

384091R3

SPACER

constant mesh gear, tractors w/torque amplifier

1шт.

13

68142C2

GEAR

TA driven, 47T, tractors w/torque amplifier

1шт.

14

68046C2

SPACER

countershaft rear

1шт.

15

68043C3

GEAR

constant mesh, 45T

1шт.

16

143962C1

GEAR

2nd speed driving, 39T

1шт.

17

120774C1

GEAR

1st speed driving, 31T

1шт.

18

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

countershaft rear

1шт.

19

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut, Used only w/countershaft 71784C1

1шт.

20

539281R1

NUT

countershaft brg lock, RH thread

1шт.

20

148952C2

NUT

countershaft brg lock, LH thread

1шт.

21

380093R1

RETAINER

countershaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

68048C1

SHAFT

ASSY, main, 25T, tractors w/o torque amplifier

1шт.

22

68141C1

SHAFT

ASSY, main, 25T, tractors w/torque amplifier

1шт.

23

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone

2шт.

24

384114R91

NEEDLE BEARING

countershaft front needle

1шт.

25

380095R1

SHIM

main shaft rear bearing

1шт.

26

529283R2

CAGE

main shaft rear brg

1шт.

27

380097

RING, main shaft rear brg snap

1шт.

28

120775C1

GEAR

1st speed driven, 42T

1шт.

29

143963C1

GEAR

2nd speed driven, 33T

1шт.

30

380098R2

RETAINER

main shaft rear bearing

1шт.

143049H1

CAPSCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW, 3/8 x1.500 pln type 8 12 pt flg

4шт.

31

104401C1

SHAFT

IPTO drive

1шт.

32

67790C2

SEAL

drive shaft oil

1шт.

33

69751C1

BUSHING

ASSY, drive shaft w/spacer

1шт.

69752C1

SPACER

drive shaft bushing

1шт.

34

70227C91

BEARING ASSY,55mm ID x 100mm OD x 21mm W

roller

1шт.

ST453

RING

bearing snap

1шт.

35

384337R1

RING

shaft brg retaining

1шт.

36

384184R1

RETAINER

shaft brg

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

3шт.

37

67753C1

CAGE

drive shaft brg

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 7/8 pln type 5

5шт.

38

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

shaft brg cage oil

1шт.

39

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8 shaft brg cage sealing

1шт.

40

67754C1

SHAFT

IPTO driven

1шт.

41

104400C1

GEAR

IPTO driven, 58T

1шт.

42

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

ASSY, IPTO shaft frt cone

1шт.

43

376463C1

BEARING CUP

BEARING, IPTO shaft frt cup

1шт.

44

67757C1

RETAINER

driven shaft brg

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

4шт.

45

67758C1

SHIM

shaft brg retainer, .028

1шт.

46

67760C1

SHIM

shaft brg retainer, .007

4шт.

47

67761C1

SEAL RETAINER

IPTO front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap frt

1шт.

49

67755C1

RING

IPTO driven ring snap

1шт.

50

68050C1

PLUG

1шт.

51

68053C1

ADAPTER

shifter collar

2шт.

52

68054C1

SYNCHRONIZER,26T

1st & 2nd gear shifter

2шт.

53

68051C1

THRUST WASHER,54.36mm ID x 63.5mm OD x 3.02mm Thk

driven gear thrust

2шт.

54

68044C2

SPACER

countershaft rear

1шт.

55

69053C1

SPACER

shifter adapter .593

1шт.

55

69054C1

SPACER

shifter adapter .602

1шт.

55

69055C1

SPACER

shifter adapter .611

1шт.

56

71147C2

SPACER

TA driven gear, tractor w/torque amplifier

1шт.

1268693C91

PACKAGE

rear bevel set, range/sped transmission field improvement, 3788 tractors, Consists of

1шт.

1268694C91

PACKAGE

BEVEL GEAR AND PINION, matched set

1шт.

380283R2

SHIM

main shaft bearing

1шт.

380284R2

SHIM

main shaft bearing

2шт.

1258368C1

RETAINER

main shaft bearing

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 12pt flg

2шт.

1258370C91

TAPERED BEARING,2.5938" ID x 5.25" OD x 2.75"

BEARING ASSY, main shaft rear

1шт.

1258369C1

GEAR

reverse driver, 35T

1шт.

133685C2

MANIFOLD

suction line

1шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 class 5

1шт.

67742C1

TUBE

ASSY, trans lube

1шт.

67745C1

SEALING RING

main shaft fitting

1шт.

406579R1

WASHER

lube tube mtg bracket

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12 pt flg

2шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 phc hdn

2шт.

67768C1

CAGE

ASSY, countershaft rear brg

1шт.

1268527C91

ROLLER BEARING,2.4705" ID x 4.001" OD x 1"

ASSY, cone

1шт.

1268528C1

BEARING CUP,2.4705" ID x 4.001" OD x 1"

cup

1шт.

26522R1

SNAP RING,4.625", Int, #462

RING, 5.076 int ret

1шт.

67772C1

GEAR

constant mesh, 48T

1шт.

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

ASSY, cone

1шт.

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, cup

1шт.

67603C1

SHIM

countershaft brg .004/.005

1шт.

67604C1

SHIM

countershaft brg .0299

1шт.

67605C1

SHIM

countershaft brg .012

2шт.

67606C1

SHIM

countershaft brg .007

1шт.

67607C1

SHIM

countershaft brg .0035/.0025

1шт.

1250294C91

ROLLER BEARING,1.5748" ID x 3.056" OD x 1.1811"

BEARING, main shaft front

1шт.

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft locking

1шт.

79021C92

PACKAGE

chassis overhaul gasket

1шт.

1250295C1

SHAFT

ASSY, main, 25T

1шт.

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, cone

2шт.

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, cup

2шт.

380095R1

SHIM

main shaft rear bearing

1шт.

71147C2

SPACER

TA driven gear

1шт.

148952C2

NUT

countershaft brg lock

1шт.

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

countershaft rear

1шт.

384091R3

SPACER

speed countershaft front

1шт.

68044C2

SPACER

speed countershaft center

1шт.

68046C2

SPACER

speed countershaft rear

1шт.

79569H

BALL BEARING

BEARING, side drive output shaft or

1шт.

1258438C91

NO LONGER SERVICED

BEARING ASSY, output shaft

1шт.

619585C91

SEAL,51.94mm ID x 76.33mm OD x 9.5mm Thk

brg chge oil

1шт.

127451C1

GASKET

brg cage

1шт.
