Запчасти Case IH 3788 (07-17) - DRIVE TRAIN, REAR FRAME COVER (04) - Drive Train

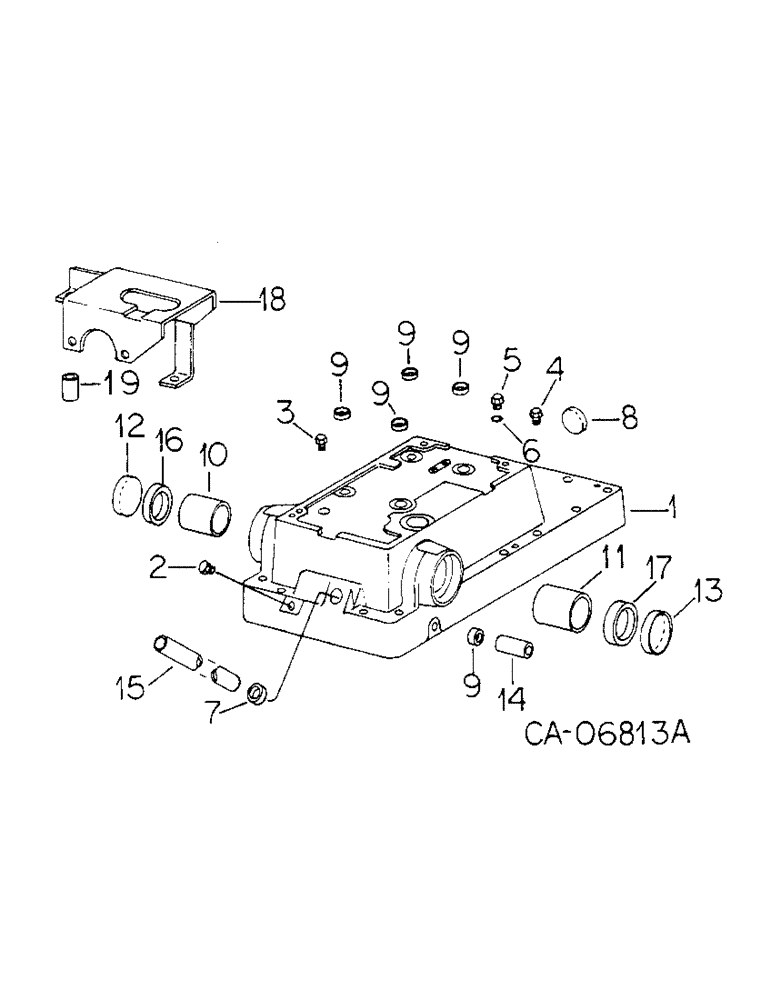

Схема запчастей Case IH 3788 - (07-17) - DRIVE TRAIN, REAR FRAME COVER (04) - Drive Train
8
9
1
9
9
19
14
16
5
7
3
9
15
9
11
12
10
17
18
13
4
2

Артикул

Название

Примечание

Количество

104779C91

COVER

ASSY, rear frame

1шт.

1

COVER, rear frame w/tubes, Not serviced separately, Order cover assy

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

5/8 x 3-7/8 pln type 5

16шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto Hex Socket

1шт.

3

444691

PLUG

1/4-18 auto hex-socket pipe

1шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 auto hex-socket pipe

1шт.

5

9410357

PLUG

1/2-20 st-thrd o-ring boss

1шт.

7

104731C1

PLUG

filler neck opening cup

1шт.

8

343828R1

PLUG,Cup, 1 13/16"

1-13/16 cup, speedometer drive opening

1шт.

9

380263R1

PLUG

cup, hyd port opening

5шт.

10

382774R2

BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L

BEARING, rockshaft LH

1шт.

11

382775R2

BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L

BEARING, rockshaft RH

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH, tractor w/o draft control Cup, 3.510"

1шт.

13

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH, tractor w/o draft control Cup, 3.762"

1шт.

14

382798R1

BUSHING

eccentric shaft position opening

1шт.

15

104051C1

TUBE,1.03" ID, 1.187" OD, 8" Length

oil filler

1шт.

16

382776R91

OIL SEAL

rockshaft oil LH, tractor w/draft control

1шт.

17

382778R91

OIL SEAL

rockshaft oil RH, tractor w/draft control

1шт.

18

138984C2

BRACKET

ASSY, upper link

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2 pln type 5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

upper link bracket

1шт.

6

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

Выбрано товаров: 24
