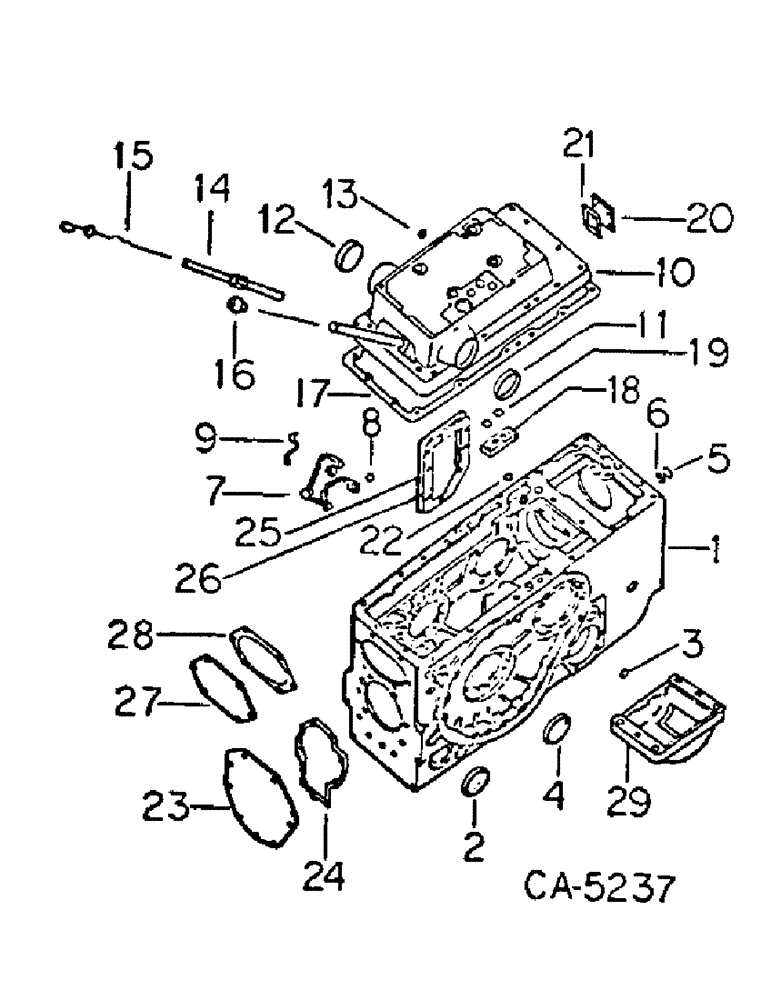

Запчасти Case IH 3788 (07-16) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
127910C91
FRAME
ASSY, rear, Consists of
1шт.
NSS
NOT SOLD SEPARAT
FRAME W/TUBES
1шт.
537545R92
SEAL
OIL SEAL
1шт.
19846R1
DOWEL,1/2" x 1 1/4"
PIN
1шт.
19968R1
DOWEL,3/4" x 1 3/4"
PIN
4шт.
19969R1
DOWEL,3/4" x 2 1/4"
PIN
2шт.
172558
PLUG,Exp, 1 1/4"
1шт.
172574
PLUG,Exp, 1 1/2"
1шт.
383331R1
PLUG,Cup, 4.26"
2шт.
444788
DRAIN PLUG,Sq Soc, 1/2"-14 NPTF
PLUG
2шт.
9409948
PLUG,Sq Soc, 3/4"-14 NPTF
1шт.
19846R1
DOWEL,1/2" x 1 1/4"
PIN, 1/2 x 1-1/4 dowel, clutch housing
1шт.
19968R1
DOWEL,3/4" x 1 3/4"
PIN, 3/4 x 1-1/4 dowel, rear axle carrier
4шт.
19969R1
DOWEL,3/4" x 2 1/4"
PIN, 3/4 x 2-1/4 dowel, cover
2шт.
444788
DRAIN PLUG,Sq Soc, 1/2"-14 NPTF
PLUG, 1/2-14 auto sq-soc pipe
2шт.
FO445751
PLUG
1/2-14 auto sq-soc pipe
2шт.
9409948
PLUG,Sq Soc, 3/4"-14 NPTF
3/4-14 auto sq-soc pipe
1шт.
9409949
DRAIN PLUG
3/4-14 auto sq-soc pipe
1шт.
444691
PLUG
1/4-18 auto sq-soc pipe
1шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1шт.
2
383331R1
PLUG,Cup, 4.26"
torsion bar cup
2шт.
3
172574
PLUG,Exp, 1 1/2"
1-1/2 expansion pump suction port
1шт.
4
172558
PLUG,Exp, 1 1/4"
1-1/4 expansion
1шт.
5
707253R1
O-RING,-222, 70 Duro, 1.484" ID x .139" Thk
1-1/2 x 1-3/4 x 1/8 clutch housing suction tube
1шт.
6
127903C1
RETAINER
sealing ring
1шт.
7
68688C1
TUBE
ASSY, trans lub, 3388 and 3588 tractors
1шт.
7
138688C1
TUBE,214.38, 118.1 mm Length
ASSY, trans lub, 3788 tractors
1шт.
8
67745C1
SEALING RING
mainshaft fitting
1шт.
380286R1
BOLT,Flg, 1/2" - 13 x 1 1/2"
SCREW, 1/2 x 1.500 pln type 8 12 pt flg
2шт.
406579R1
WASHER
lub tube mounting bracket
2шт.
9
67748C2
TUBE
ASSY, diff ret upper lub
1шт.
10
COVER, rear frame, refer to rear frame cover this group
1шт.
20203R1
BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5
5/8 x 3-7/8 pln type 5
16шт.
444776
PLUG,Sq Soc, 1/4"-18 NPTF
1/4-18 sq-soc pipe
1шт.
444782
PLUG,Sq Soc, 3/8"-18 NPTF
3/8-18 sq-soc pipe
1шт.
11
380173R1
PLUG,Cup, 3.762"
Rockshaft opening RH Cup, 3.762"
1шт.
12
380174R1
PLUG,Cup, 3.510"
Rockshaft opening LH Cup, 3.510"
1шт.
13
380263R1
PLUG
eccentric shaft & mounting bolt openings cup
5шт.
14
104161C1
TUBE,5.62" Length
ASSY, oil level gauge
1шт.
15
104164C1
DIPSTICK
GAUGE ASSY, oil level
1шт.
16
367677R91
BREATHER
ASSY, oil filler tube cup
1шт.
17
380264R2
GASKET
rear frame cover
1шт.
18
382758R1
COVER
draft control port
1шт.
179843
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
2шт.
19
387926R2
RING
draft control port cover seal
2шт.
20
382415R1
COVER
valve adj opening
1шт.
179814
SPACER
5/16 x 5/8 pln type 5
6шт.
21
382416R1
GASKET
valve adj opening
1шт.
22
388306R1
RING,32.77mm ID x 39.12mm OD x 3.17mm Thk
SEAL, rear frame pressure port oil
1шт.
23
380272R1
COVER
independent PTO opening
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
1/2 x 1-1/8 pln type 5
9шт.
24
381467R1
GASKET
independent PTO opening cover
1шт.
25
NOT USED IN THIS APPLICATION
1шт.
26
NOT USED IN THIS APPLICATION
1шт.
27
383329R1
COVER
draft control adj opening
1шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 cap
6шт.
28
383330R1
GASKET
draft control adj opening cover
1шт.
29
72475C1
SUPPORT
ASSY, swinging drawbar pivot
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5, 3388
4шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5, 3588 w/o cam sway limiting system using 1-3/4 IPTO shaft, Start Serial: 8912
4шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5, 3788 w/o cam sway limiting system using 1-3/4 IPTO shaft
4шт.
29
108508C1
SUPPORT
ASSY, swinging drawbar pivot
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5, 3588, Serial Range: -8911
4шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5, 3588 w/cam sway limiting system using 1-3/4 IPTO shaft, Start Serial: 8912
4шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5, 3788 w/cam sway limiting system using 1-3/4 IPTO shaft
4шт.
Выбрано товаров: 65
