Запчасти Case IH 3788 (07-12) - DRIVE TRAIN, FLYWHEEL (04) - Drive Train

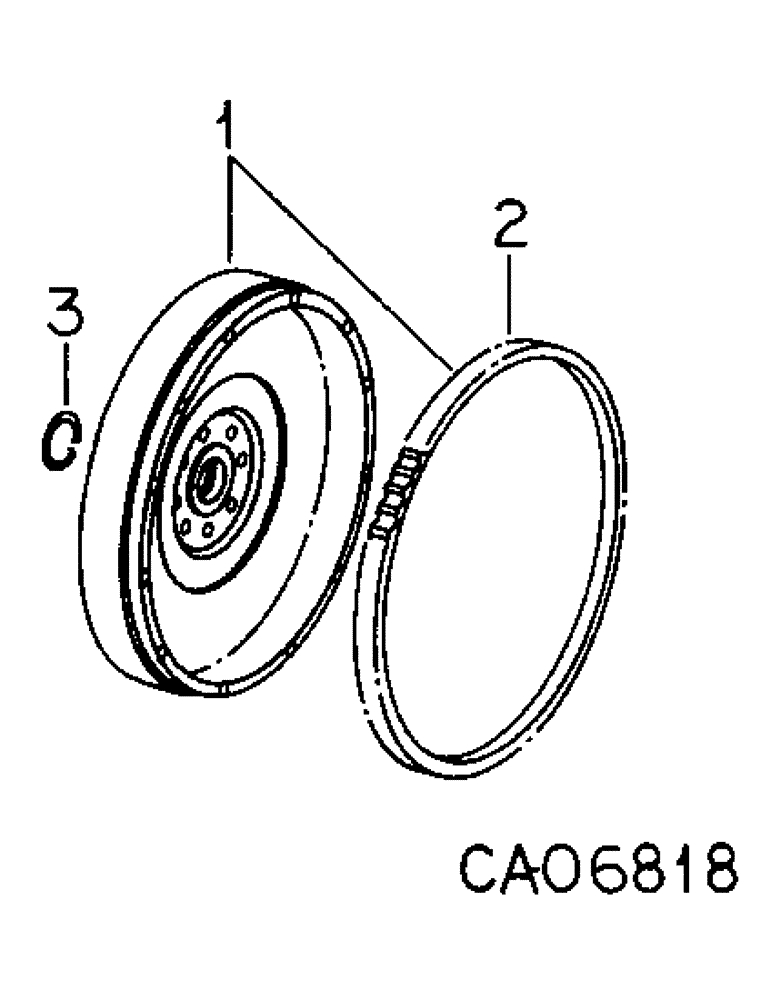

Схема запчастей Case IH 3788 - (07-12) - DRIVE TRAIN, FLYWHEEL (04) - Drive Train
1
3
2

Артикул

Название

Примечание

Количество

1

142022C91

FLYWHEEL

ASSY, transfer case

1шт.

INSURE REBALANCE!!!!!!!

1шт.

To replace 3588 flywheel when none are available, use the 1066 flywheel & resurface 1/8" thinner & rebalance.

1шт.

685902C1

WASHER

.545 x 1.00 x .092

1шт.

25276R1

BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 8

1/2 - NF x 1-5/8 phc type 8

8шт.

2

326759R1

GEAR

flywheel ring, 132T

1шт.

3

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

Выбрано товаров: 7
