Запчасти Case IH 3788 (07-10) - DRIVE TRAIN, REAR DRIVE AXLE, 3788 TRACTORS (04) - Drive Train

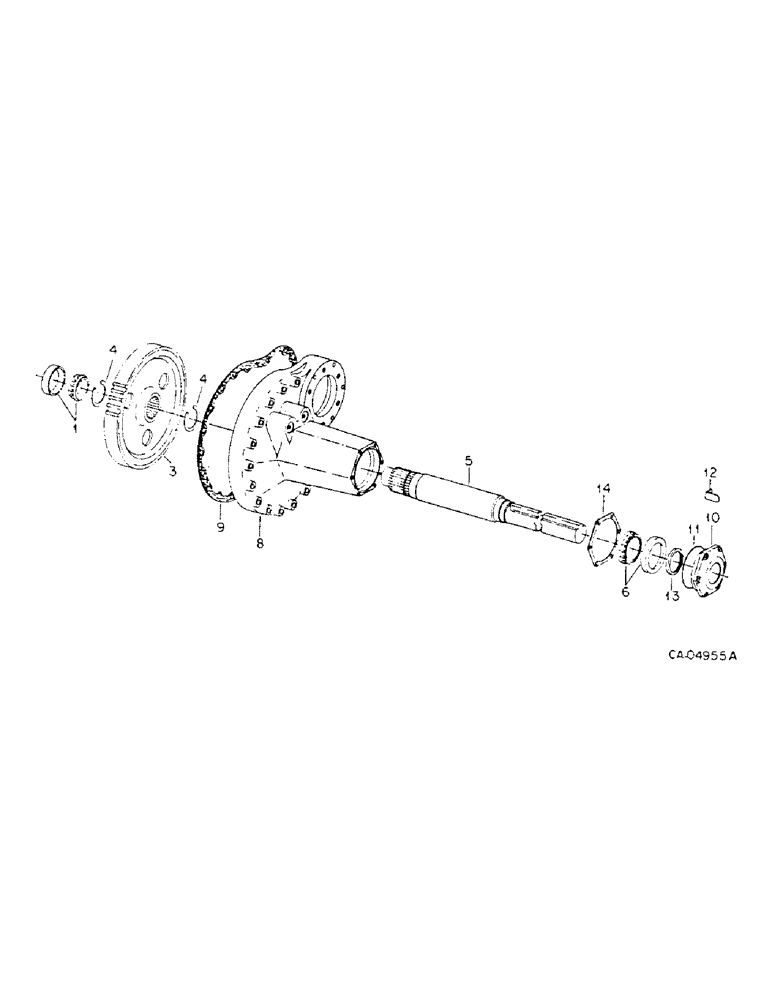

Схема запчастей Case IH 3788 - (07-10) - DRIVE TRAIN, REAR DRIVE AXLE, 3788 TRACTORS (04) - Drive Train
13
3
5
14
10
4
6
11
8
1
9
4
12

Артикул

Название

Примечание

Количество

1

ST2111

BEARING ASSY,66.68mm ID x 122.24mm OD x 38.1mm W

axle inner

2шт.

2

NOT USED THIS APPLICATION

1шт.

3

528712R1

GEAR

bull, 73T

2шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer

2шт.

4

535666R1

SPACER

bull gear

2шт.

5

535665R3

AXLE

rear, 104 in.

2шт.

5

535663R2

AXLE

rear, 118 in.

2шт.

6

ST2184

BEARING ASSY

rear axle outer

2шт.

7

NOT USED THIS APPLICATION

1шт.

8

143528C1

CARRIER

rear axle

2шт.

NLS

NO LONGER SERVICED

5/8 x 3-1/2 pln type 5

20шт.

271571

SEALING RING COLLAR

BOLT, 5/8 x 4-1/4 pln type 5

16шт.

9

380225R2

GASKET

rear axle carrier

2шт.

10

536471R1

CAP

rear axle carrier

2шт.

11

529133R1

RING

rear axle carrier cap sealing

2шт.

12

392346R1

BRACKET

rear wheel inner position cage

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

535667R91

OIL SEAL

rear axle carrier cap oil

2шт.

14

380227R2

SHIM

rear axle carrier cap, .007 (Or as required)

6шт.

14

380228R2

SHIM

rear axle carrier cap, .012 (Or as required)

4шт.

14

380229R2

SHIM

rear axle carrier cap, .030

1шт.

14

380230R2

SHIM

rear axle carrier cap, .004

1шт.

14

385158R2

SHIM

rear axle carrier cap, .003

1шт.

Выбрано товаров: 24
