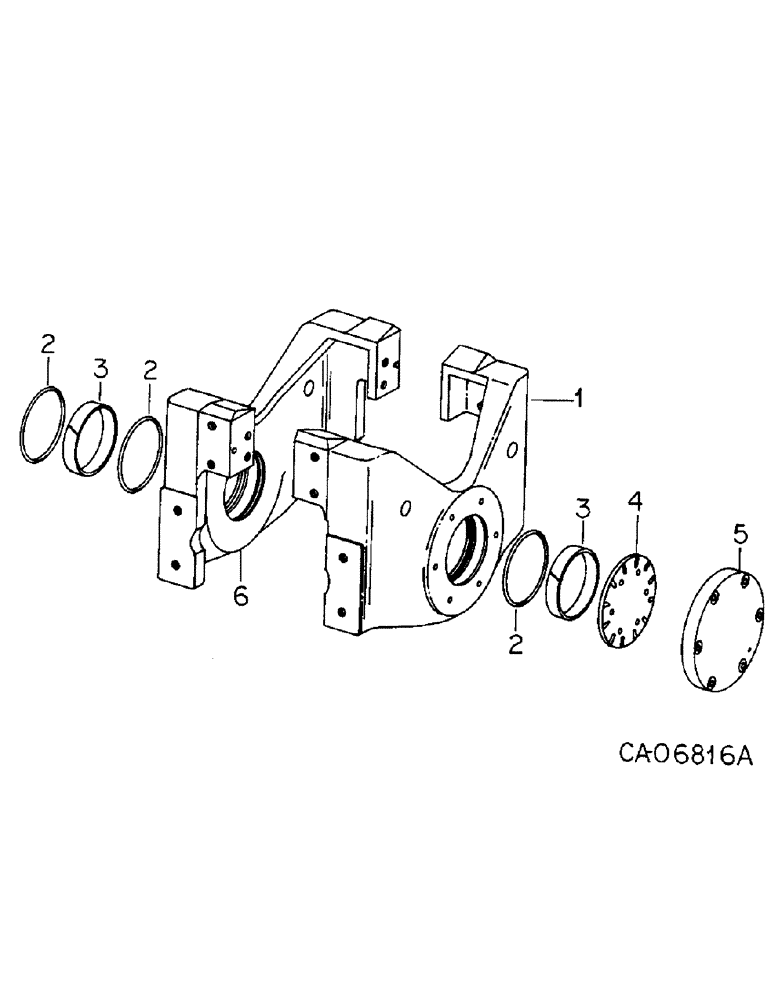

Запчасти Case IH 3788 (07-08) - DRIVE TRAIN, FRONT DRIVE AXLE BOLSTER (04) - Drive Train

1

138898C2

BOLSTER

ASSY, front

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1.250 pln hdn dowel

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

10шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

8шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

BOLT, 3/4 x 2-1/2 pln type 5

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4 x 1-3/4 pln type 5

8шт.

2

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

6-3/4 ID x 7-1/4 OD x .275

3шт.

3

1280900C1

STRIP

2шт.

4

142009C1

PLATE

thrust, Replaces 964439C2

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

6шт.

25536R1

WASHER

.531 x 1.062 x .095 phc hdn

6шт.

5

934438C2

CAP

trunnion thrust

1шт.

24865R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

Hex, 1/2"-13 x 2 1/4", G8

6шт.

25536R1

WASHER

.531 x 1.062 x .095 phc hdn

6шт.

6

1258435C1

BOLSTER

ASSY, rear, Replaces 138899C2

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1.250 pln hdn dowel

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

2шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

8шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

BOLT, 3/4 x 2-1/2 pln type 5

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4 x 1-3/4 pln type 5

8шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 ptf short 90D lub

2шт.
