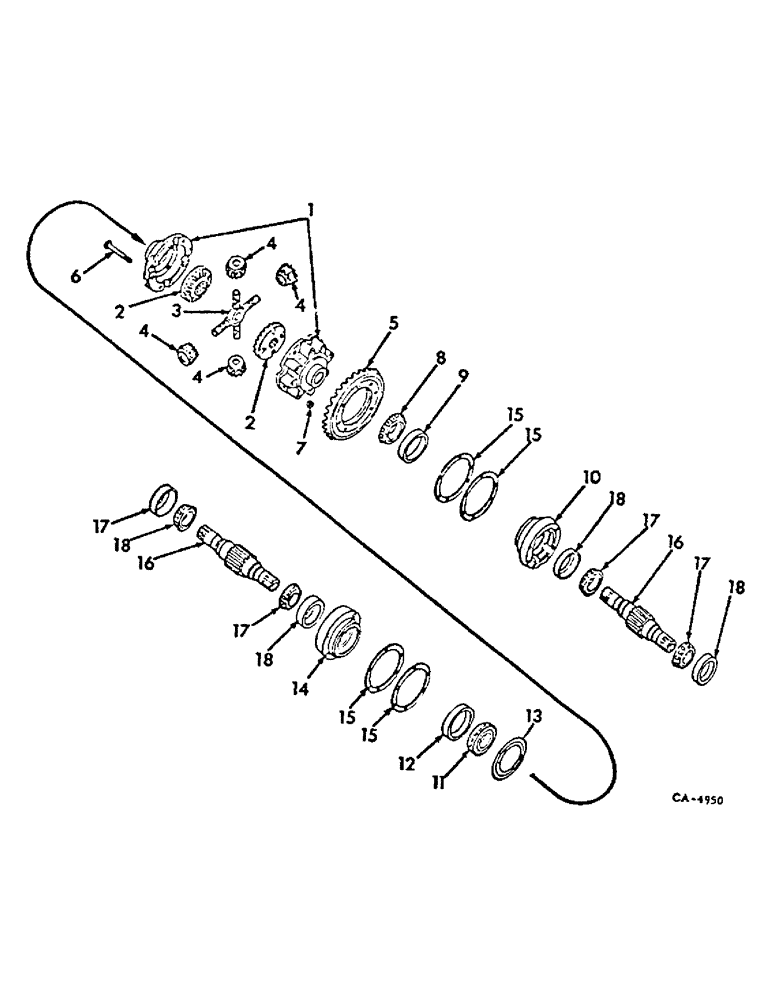

Запчасти Case IH 3788 (07-07) - DRIVE TRAIN, DIFFERENTIAL, 3788 TRACTORS (04) - Drive Train

1

528706R3

CASE

ASSY, differential

1шт.

2

380190R2

GEAR

differential, 27T

2шт.

3

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

4

361061R3

PINION

differential, 15T

4шт.

5

BEVEL GEAR, Not serviced separately, Order package 142258C91

1шт.

6

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

7

381368R1

NUT,Hex, 1/2" - 20, Gr 8

diff case bolt

12шт.

8

622336C91

ROLLER BEARING

ASSY, diff RH roller cone

1шт.

9

622337C91

BEARING, diff RH roller cup

1шт.

10

68683C1

RETAINER

diff bearing RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

11

529452R91

ROLLER BEARING

ASSY, diff LH cone

1шт.

12

529453R1

BEARING, CUP

BEARING, diff LH cup

1шт.

13

67397C1.

BAFFLE, LH diff brg oil (replaces 64397C1)

1шт.

14

67595C2

RETAINER

differential brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

15

380202R1

SHIM

diff brg retainer, .007

2-4шт.

15

380203R1

SHIM

diff brg retainer, .012 (Or as required)

4шт.

15

380204R1

SHIM

diff brg retainer, .030

1шт.

15

380205R1

SHIM

diff brg retainer, .004

1шт.

15

385155R1

SHIM

diff brg retainer, .003

1шт.

16

104657C1

SHAFT

bull pinion & brake

2шт.

17

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

bull pinion shaft cone

4шт.

18

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion shaft cup

4шт.

142258C91

GEAR SET

PACKAGE, bevel gear and pinion, Order package, 1268693C91, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHAFT, 11T

1шт.

NSS

NOT SOLD SEPARAT

BEVEL GEAR, 52T

1шт.

NSS

NOT SOLD SEPARAT

TAG

1шт.
