Запчасти Case IH 3788 (07-05) - DRIVE TRAIN, CLUTCH BOOSTER (04) - Drive Train

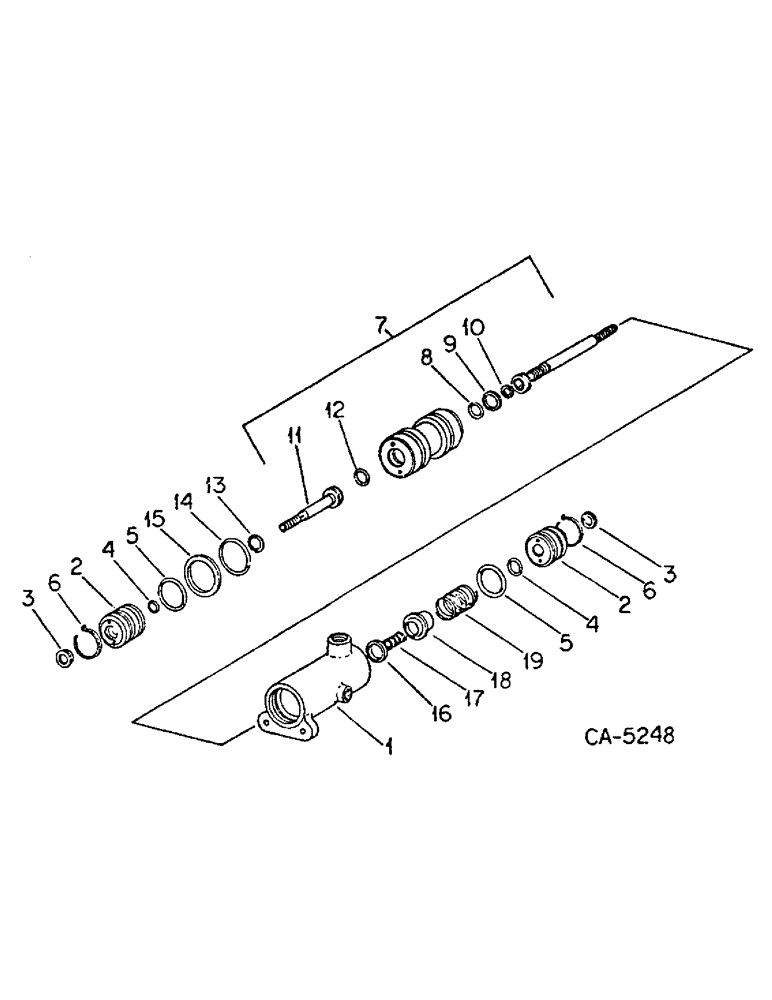

Схема запчастей Case IH 3788 - (07-05) - DRIVE TRAIN, CLUTCH BOOSTER (04) - Drive Train
12
8
5
1
5
15
9
6
3
4
6
2
19
7
16
2
18
11
10
4
13
3
14
17

Артикул

Название

Примечание

Количество

113965C93

CYLINDER

BOOSTER ASSY, clutch

1шт.

1

BODY, clutch booster, Not serviced separately, Order booster assy 113965C93

1шт.

2

133794C1

CAP

end

2шт.

3

SWIPER, rod, Order package, 75414C91

2шт.

4

O-RING, 11/16 x 1/2 x 3/32, Order package, 75414C91

2шт.

5

O-RING, 2 x 1-13/16 x 3/16, Order package, 75414C91

2шт.

6

113968C1

SPRING

retaining ring

2шт.

7

123293C92

PISTON

ASSY, booster

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

11/16 x 9/16 x 1/16

1шт.

9

113972C1

RING

reaction piston seal

1шт.

10

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

11

123026C2

STUD,25.15mm OD x 134.62mm L

output rod

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

13

303322R1

SNAP RING,1.00", Int, #100

1шт.

14

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1-3/4 x 1-9/16 x 3/32

2шт.

15

114199C2

SEAL,44.68mm ID x 51.03mm OD x 3.17mm Thk

teflon

2шт.

16

529044R1

LOCK WASHER

diff lock boot

1шт.

17

114003C1

SPRING

valve

1шт.

18

113975C1

CUP

spring retainer

1шт.

19

114198C1

SPRING

booster piston

1шт.

75414C91

SEAL

clutch booster, Consists of ref. nos. 3, 4 ,5, 6, 8, 9, 10, 12, 13, 14 & 15

1шт.

Выбрано товаров: 21
