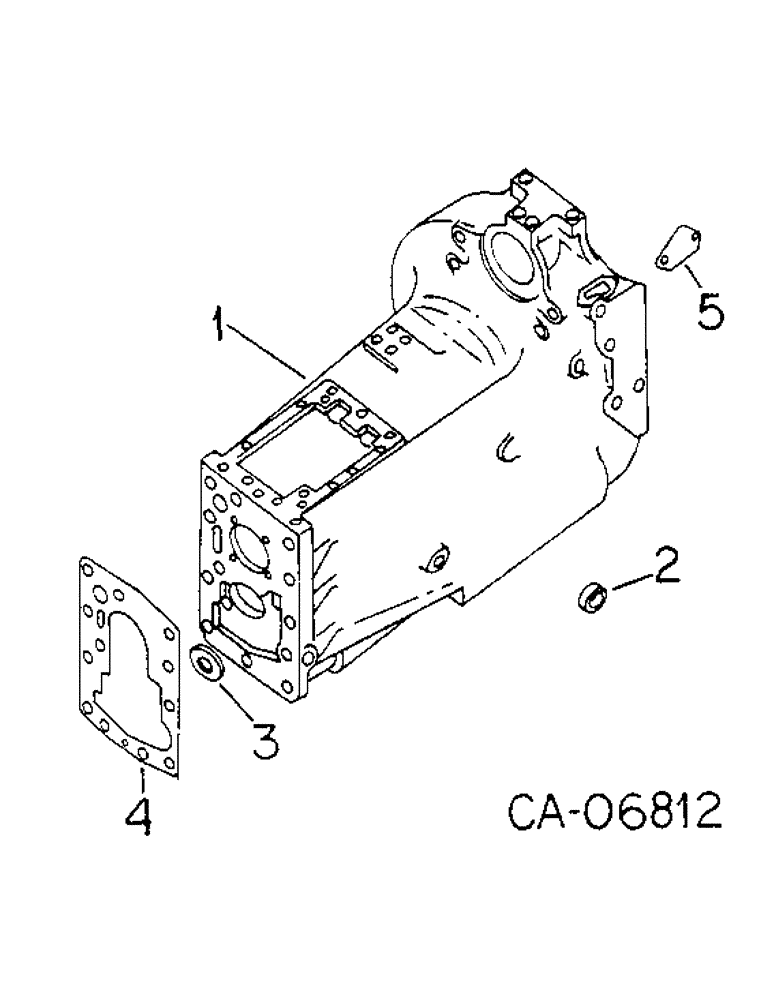

Запчасти Case IH 3788 (07-02) - DRIVE TRAIN, CLUTCH HOUSING (04) - Drive Train

1

139156C93

HOUSING

ASSY, clutch, Consists of

1шт.

NSS

NOT SOLD SEPARAT

HOUSING W/TUBES

1шт.

NSS

NOT SOLD SEPARAT

TUBE, suction

1шт.

NSS

NOT SOLD SEPARAT

TUBE, differential lub

1шт.

NSS

NOT SOLD SEPARAT

TUBE, spray lub

1шт.

NSS

NOT SOLD SEPARAT

TUBE, PS pressure

1шт.

NSS

NOT SOLD SEPARAT

TUBE, P.S. return

1шт.

1017956R1

PLUG,Cap, .610" OD

4шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc pipe

1шт.

381611R1

SEAT

valve

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto. sq-soc hd pipe

1шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

7шт.

26166R1

12 PT SCREW,Flg, 5/8" - 11 x 2 1/4"

SCREW, 5/8 x 2.250 phc type 8 12 pt flg

1шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

10шт.

28592

SCREW, 5/8 x 2 phc h/shd cap

2шт.

2

381611R1

SEAT

valve

1шт.

3

384114R91

NEEDLE BEARING

countershaft frt needle

1шт.

4

380067R4

GASKET

clutch housing, 3388, Serial Range: -10490

1шт.

4

380067R4

GASKET

clutch housing, 3588, Serial Range: -13014

1шт.

4

380067R4

GASKET

clutch housing, 3788, Serial Range: -9786

1шт.

4

224903C1

GASKET

clutch housing, 3388, Start Serial: 10491

1шт.

4

224903C1

GASKET

clutch housing, 3588, Start Serial: 13015

1шт.

4

224903C1

GASKET

clutch housing, 3788, Start Serial: 9787

1шт.

5

104402C1

COVER

engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
