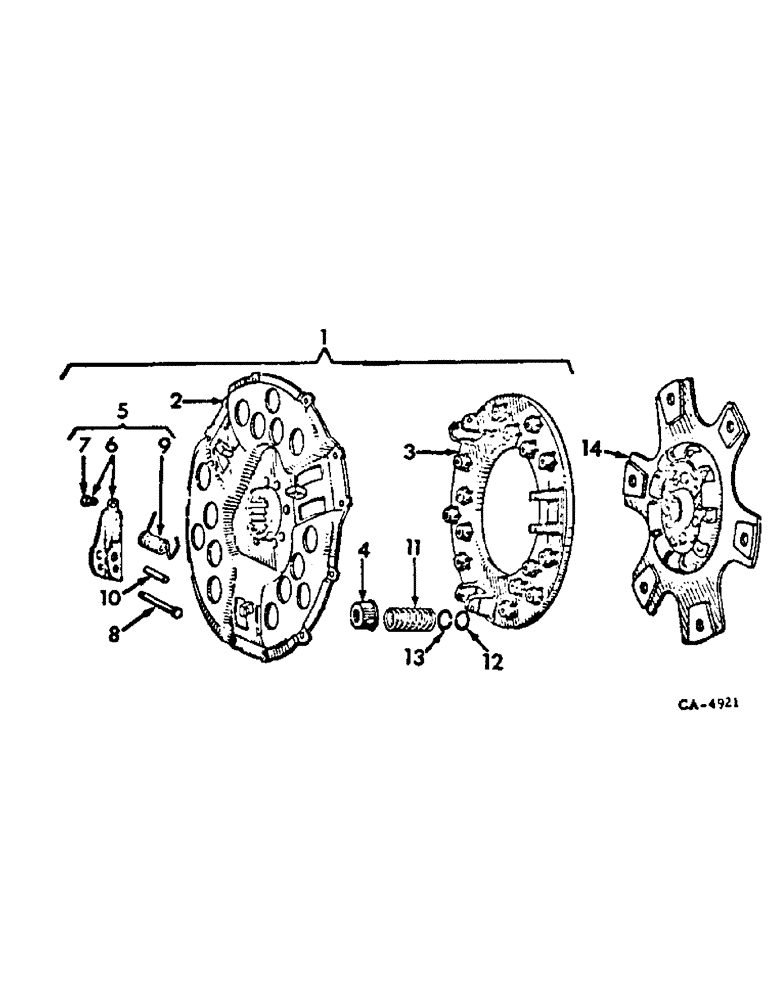

Запчасти Case IH 3788 (07-01) - DRIVE TRAIN, CLUTCH (04) - Drive Train

1

142079C91

PLATE

PLATE ASSY, clutch pressure, 3388 tractor

1шт.

1

142078C91

PLATE

PLATE ASSY, clutch pressure, 3588 tractor

1шт.

1

142184C91

PLATE

PLATE ASSY, clutch pressure, 3788 tractors

1шт.

1

142184C91R

REMAN-CLUTCH PLATE

Remanufactured 14" FA, 18 Tooth Hub, 15 Spring Clutch Plate

1шт.

1

142184C91C

CORE-CLUTCH PLATE

Return Part Number, 14" FA, 18 Tooth Hub, 15 Spring Clutch Plate

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8 x 7/8 pln type 5

12шт.

2

69597C1

PLATE

PLATE ASSY, clutch pressure back

1шт.

3

146619C1

PLATE

PLATE, clutch pressure

1шт.

4

353316R1

SPRING CUP

CUP, clutch pressure spring

15шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever

1шт.

6

390810R92

LEVER

LEVER ASSY, clutch

3шт.

7

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW, clutch lever adj

3шт.

8

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

9

390809R2

SPRING

SPRING, clutch lever

3шт.

10

NOT USED THIS APPLICATION

1шт.

11

172062R1

SPRING

SPRING, clutch pressure, 3588 tractors

15шт.

11

146883C1

SPRING

SPRING, clutch pressure, 3788 tractors

15шт.

11

71805C1

SPRING

SPRING, clutch pressure, 3388 tractors

15шт.

12

311291C1

INSULATING WASHER

WASHER, insulating

15шт.

13

311292C1

WASHER

WASHER, retainer

15шт.

14

142198C2

CLUTCH

DISC ASSY, clutch driven, dyna life, 3388 tractors

1шт.

14

142197C4R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc, 14 in., 11Tooth Hub, 1 1/4 in. OD Of Splines, Full Round Disc, 8 Buttons

1шт.

14

142197C4C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

142197C2

DISC

DISC ASSY, clutch driven, dyna life, 3588 tractors

1шт.

14

142200C1

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, dyna life, 3788 tractors

1шт.

14

142200C2R

REMAN-CLUTCH DISC

3788, Reman For New P/N 142200C1

1шт.

14

142200C2C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

389774A1

REMAN-CLUTCH KIT

Remanufactured Clutch Kit

1шт.

14

389774A1C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.
