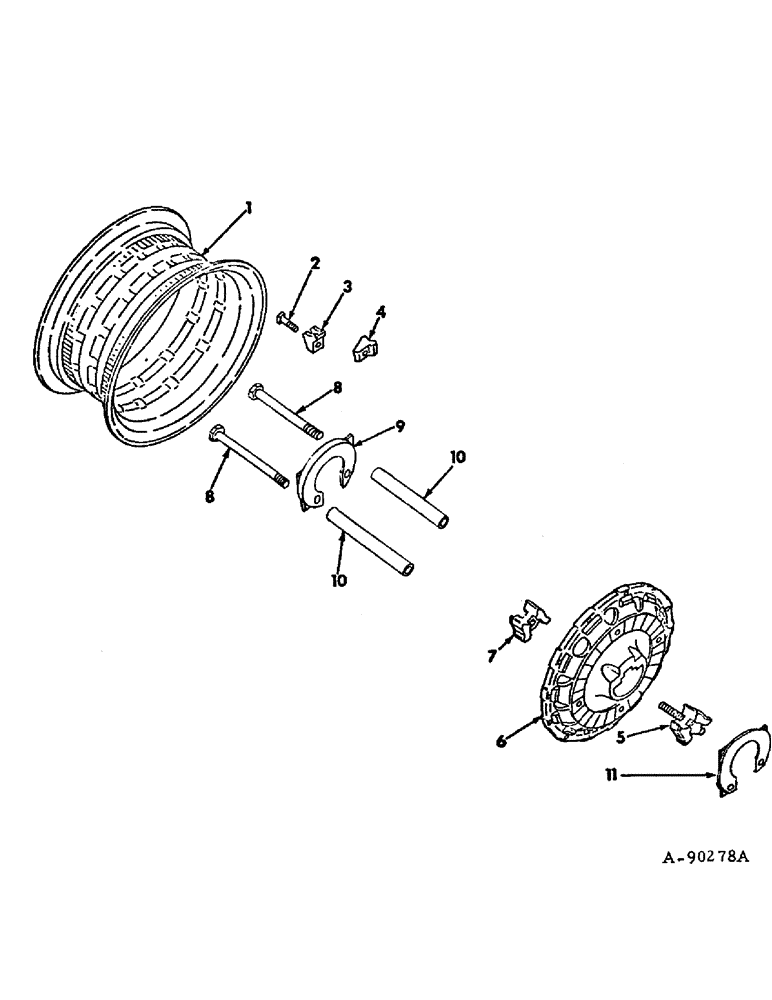

Запчасти Case IH 3788 (15-02) - WHEELS AND TRACTION, WHEELS, WEDGE LOCK TYPE Wheels & Traction

1

384068R91

RIM

wheel, DW20-30 rim for 23.1-30 tire

4шт.

1

380868R1

RIM

wheel, W16L-34 rim for 18.4-34 tire

4шт.

1

392647R1

RIM

wheel, W14L-38 rim for 15.5-38 tire

4шт.

1

392031R1

RIM

wheel, W16L-38 rim for 18.4-38 tire

4шт.

1

392032R1

RIM

wheel, W15L-38 rim for 16.9-38 tire

4шт.

1

65319C1

RIM

wheel, W18L-38 rim for 20.8-38 tire

4шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

wheel rim clamps, For 34 in. and 38 in. rims

48шт.

2

380877R1

BOLT,3/4" - 16 x 4 3/4"

wheel rim clamps, For rim 384068R1

40шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.

352536R1

NUT

wheel rim clamp bolt, one per bolt

1шт.

3

380870R1

CLAMP

wheel rim

1шт.

4

397251R1

CLAMP

wheel, fixed

8шт.

5

397189R2

WEDGE

ASSY, wheel

4шт.

6

398544R2

WHEEL

30 in.

4шт.

6

398545R2

WHEEL

34 in.

4шт.

6

397188R3

WHEEL

38 in.

4шт.

7

397193R2

WEDGE

wheel

4шт.

8

535561R1

SCREW

3/4-16 x 9-3/4 hex-hd cap

2шт.

9

535559R2

PLATE

AND SPACER ASSY

1шт.

10

535546R1

BUSHING,19.74mm ID x 22.23mm OD x 180.34mm L

bolt tube

2шт.

11

535557R2

PLATE

AND SPACER ASSY

1шт.

536022R92

PACKAGE

wedge wheel remover tool service, Consists of ref nos 8 through 11, strip, 535409R1 and wrench, 529959R1

1шт.

535409R1

STRIP

wrench grip

1шт.

529959R1

TOOL

WRENCH, wedge wheel socket 7/8

1шт.

27549R1

VALVE STEM

TR 618A, Tubeless tire

4шт.
