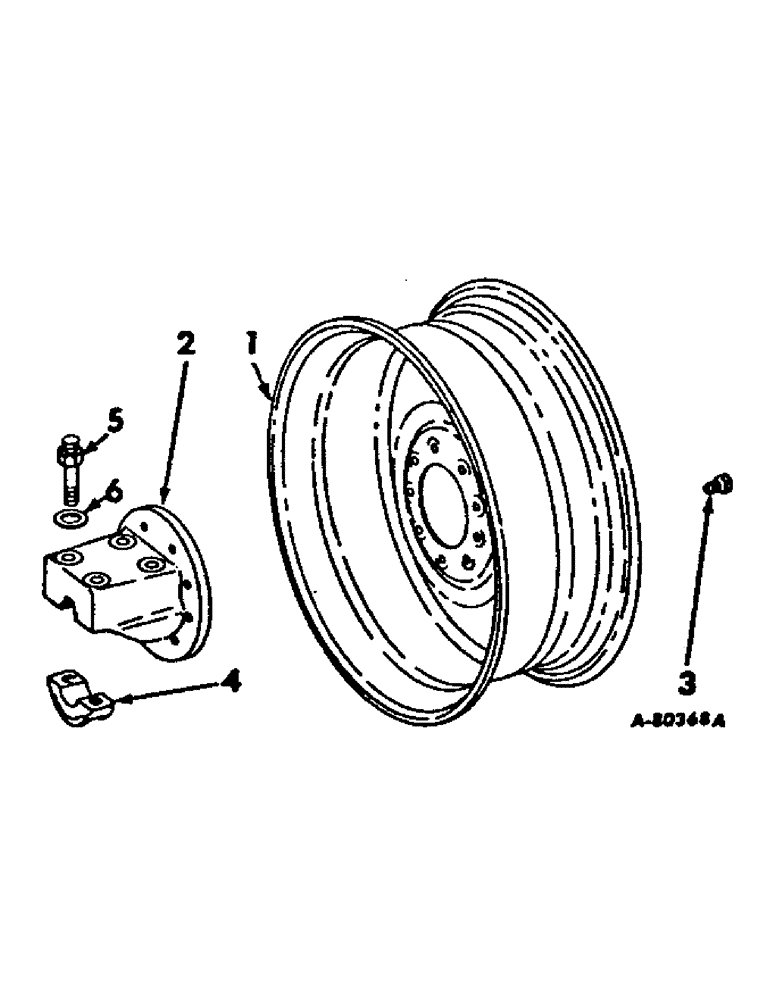

Запчасти Case IH 3788 (15-01) - WHEELS AND TRACTION, OUTER DUAL WHEELS, DISC TYPE Wheels & Traction

1

142069C1

WHEEL

ASSY, W16L-38 rim, For 16.9-38 tire

1шт.

1

142070C1

WHEEL

ASSY, W14L-38 rim, For 15.5-38 tire

1шт.

1

142073C1

WHEEL

ASSY, W15L-34 rim, For 18.4-34 tire

1шт.

2

110415C1

HUB

dual wheel

4шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT, wheel mounting

36шт.

4

68806C1

CLAMP

wheel hub

8шт.

5

539827R2

STUD

ASSY, wheel hub clamp stud

16шт.

6

384697R1

WASHER

wheel hub clamp stud

16шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

536705R91

VALVE

TR416 tubeless tire

4шт.
