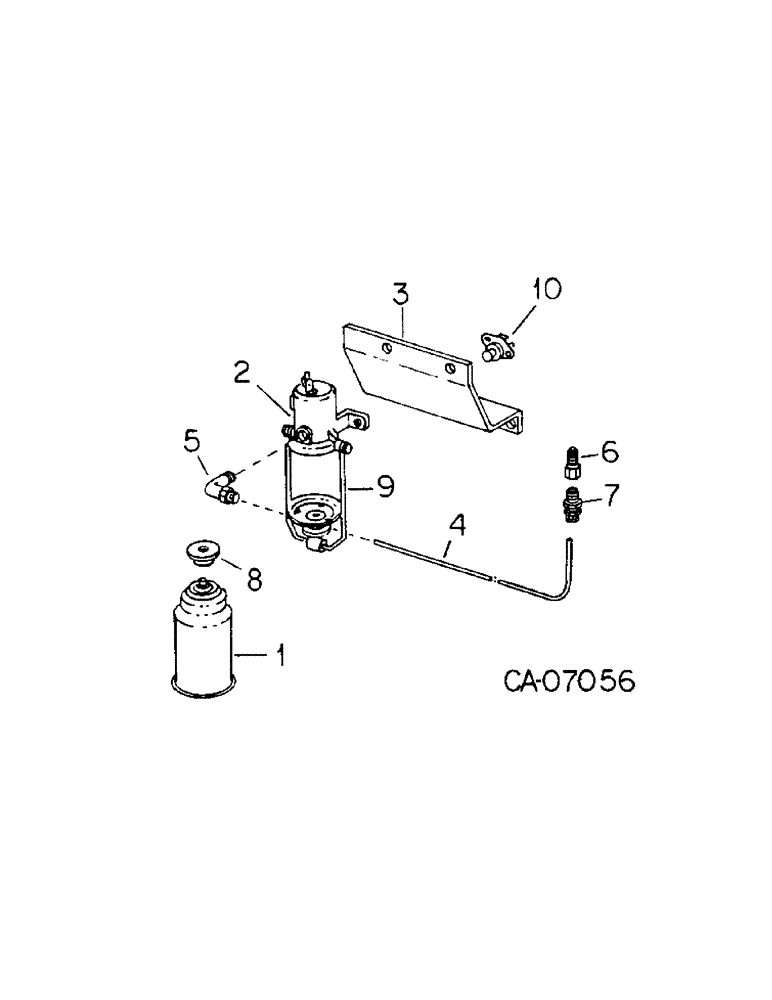

Запчасти Case IH 3788 (12-12) - POWER, ETHER STARTING Power

1

385064R91

FLUID

ether starting 12 oz can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injection, Includes ref. nos. 10 and 11

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

104412C2

BRACKET

ether starting solenoid, 3388, Serial Range: -10910

1шт.

3

104412C2

BRACKET

ether starting solenoid, 3588, Serial Range: -14208

1шт.

3

104412C2

BRACKET

ether starting solenoid, 3788, Serial Range: -11037

1шт.

138241

HEX SOC SCREW,3/8" - 16 x 3/4"

2шт.

4

TUBE ASSY, ether solenoid to manifold, Use 20 in. of 1/8 OD tubing from a 50 ft. roll marked 995059R1 and 2 nuts 121220, 2 sleeves 121322, 3388, Serial Range: -10910

1шт.

4

TUBE ASSY, ether solenoid to manifold, Use 20 in. of 1/8 OD tubing from a 50 ft. roll marked 995059R1 and 2 nuts 121220, 2 sleeves 121322, 3588, Serial Range: -14208

1шт.

4

TUBE ASSY, ether solenoid to manifold, Use 20 in. of 1/8 OD tubing from a 50 ft. roll marked 995059R1 and 2 nuts 121220, 2 sleeves 121322, 3788, Serial Range: -11037

1шт.

4

TUBE, ether injection, Use 50 in. of 1/8 OD nylon tubing from 100 ft roll marked, 417195C1, 3388, Start Serial: 10911

1шт.

4

TUBE, ether injection, Use 50 in. of 1/8 OD nylon tubing from 100 ft roll marked, 417195C1, 3588, Start Serial: 14209

1шт.

4

TUBE, ether injection, Use 50 in. of 1/8 OD nylon tubing from 100 ft roll marked, 417195C1, 3788, Start Serial: 11038

1шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, 3388, Start Serial: 10911

1шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, 3588, Start Serial: 14209

1шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, 3788, Start Serial: 11038

1шт.

5

289970C91

FITTING

1/8 90 deg., 3388, Start Serial: 10911

1шт.

5

289970C91

FITTING

1/8 90 deg., 3588, Start Serial: 14209

1шт.

5

289970C91

FITTING

1/8 90 deg., 3788, Start Serial: 11038

1шт.

6

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

7

165206C1

CONNECTOR, ELEC

FITTING, 1/8 straight

1шт.

8

395686R1

GASKET

ether starting injector

1шт.

9

121851C1

RETAINER

BAIL ASSY, injector

1шт.

10

397940R93

SWITCH

ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-NF x 1/2 znp p/hds mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.
