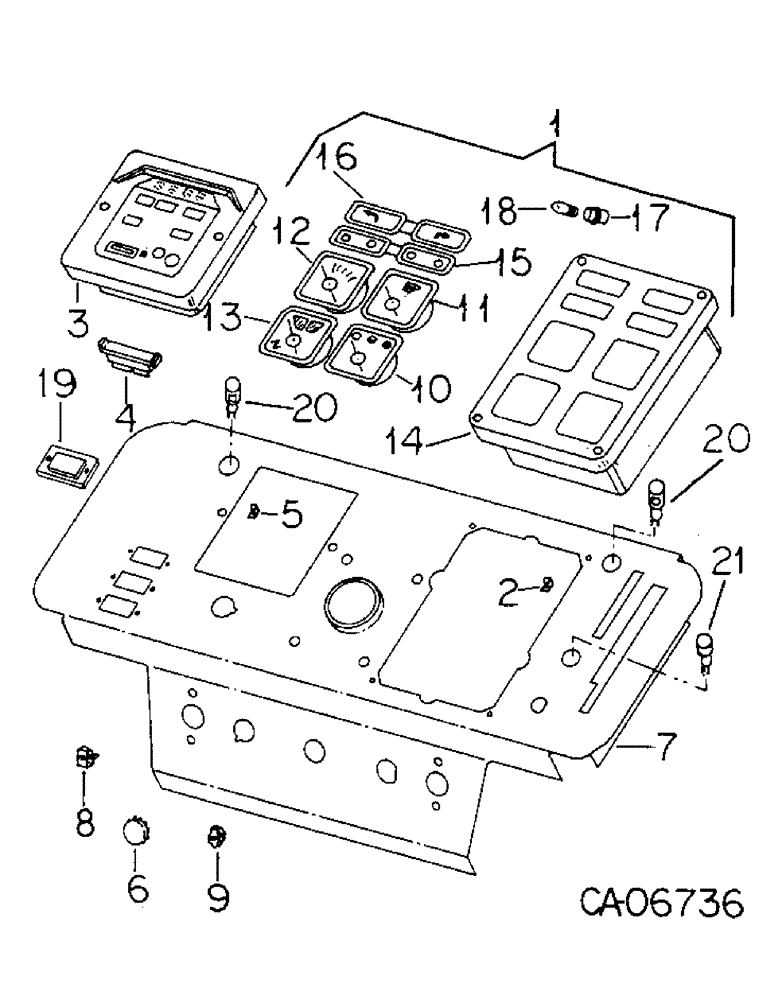

Запчасти Case IH 3788 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

107336C92

CLUSTER

ASSY, instrument

1шт.

2

103957C1

NUT

j-shape spring

4шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, #10 x 1 polyseal tap

1шт.

3

1265585C1

GAUGE

GAGE, digital data, Replaces 1252478C1 & 130784C1

1шт.

3

1935076C1

REMAN-INSTR CLUSTER

3388, 3588 Both (1/79-12/81), 3788 (1/80-12/81), All INTERNATIONAL ARTICULATED TRACTOR, GAUGE, digital data, Reman For New P/N 1265585C1

1шт.

3

1935077C1

CORE-CLUSTER, INSTR

Return Number

1шт.

4

131111C1

REGULATOR

gear ratio plug-in, 3388 and 3588 tractors

1шт.

4

131118C1

REGULATOR

gear ratio plug-in, 3788 tractors

1шт.

5

103957C1

NUT

j-shape spring

2шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, #10 x 1 polyseal tap

1шт.

6

432327

HOLE PLUG BUTTON,1"

PLUG, button, firewall

1шт.

7

138921C1

PANEL

ASSY, instrument

1шт.

7

138967C1

PANEL

ASSY, instrument, tractor w/torque amplifier

1шт.

7

148496C2

PANEL

ASSY, instrument, tractors w/tilt steering and w/o T.A.

1шт.

7

1280709C1

PANEL

ASSY, instrument, tractors w/tilt steering and w/T.A.

1шт.

8

104035C1

FASTENER

upper inst. hsg spacer, nut

1шт.

9

104036C1

NUT

instrument hsg. mtg.

10шт.

1270468C1

SELF-TAP SCREW,Cross Pan Hd, 5/16" - 18 x 1/2"

SCREW, 5/16 x 1/2 p/hd cr mach, polyseal, Replaces 160682

4шт.

10

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

11

121605C2

ELECTRICAL GAUGE

GAUGE, temp

1шт.

12

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

13

121607C1

METER

VOLTMETER

1шт.

14

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

15

121609C1

LENS

warning light

1шт.

16

121610C1

LENS

turn signal

1шт.

17

121611C1

SOCKET

ASSY, instrument cluster

8шт.

18

20627R1

BULB,C2F, #194, 14V

lamp no. 194

8шт.

19

NOT USED THIS APPLICATION

1шт.

20

107370C91

HOUSING

LIGHT ASSY, instrument panel, only serviceable items are

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

130894C1

LENS

1шт.

21

131404C91

INDICATOR LIGHT

LIGHT ASSY, EGT indicator, only serviceable item is

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

Decal - 1265520C2

1шт.

Per DT-466 engine book temp sending unit is p/n 121756C2.

1шт.
