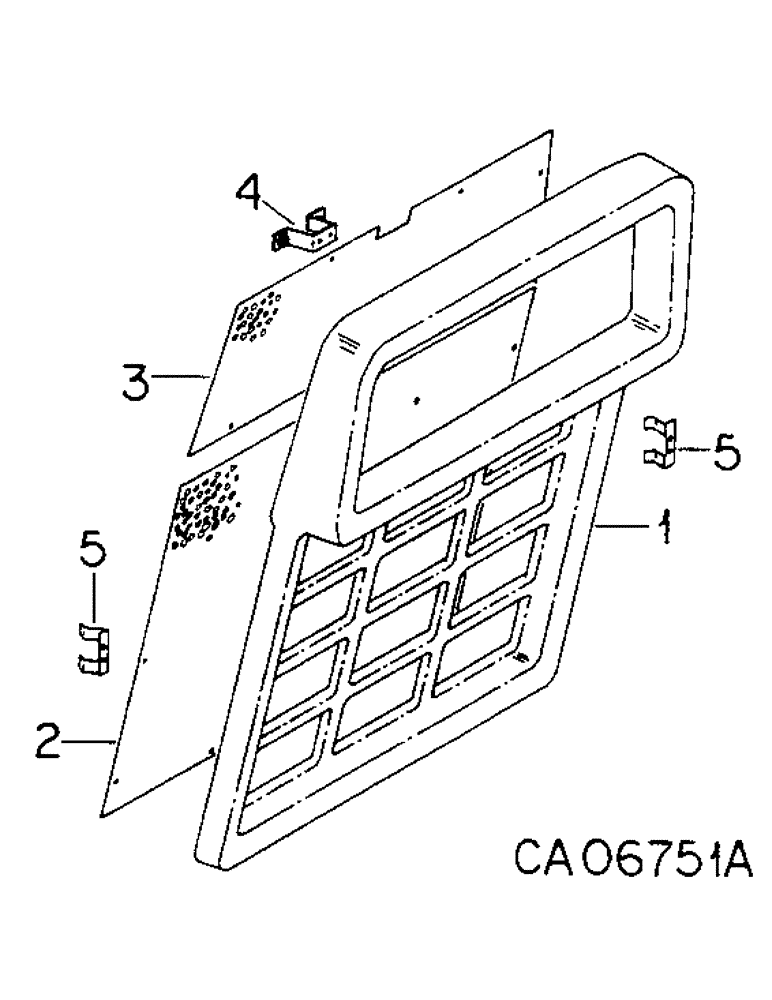

Запчасти Case IH 3788 (06-04) - COOLING, GRILLE AND SCREEN Cooling

1

127514C1

GRATE

GRILLE, front hood cap

1шт.

2

127322C1

SCREEN

grille

1шт.

120391

WASHER,#10

.219 x .500 x .036

10шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

10шт.

3

127429C2

SCREEN

grille upper

1шт.

120391

WASHER,#10

.219 x .500 x .036

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

488808R1

SCREW

no. 10 x 1/2 C-Z slt-pan-hd tap

18шт.

4

1258040C1

BRACKET

LATCH, radiator grille, top

1шт.

4

138741C2

LATCH

SPRING, radiator grille, top, latch, if used, (Not Shown)

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

5

141998C2

CLIP

radiator grille, side latch

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

488808R1

SCREW

no. 10 x 1/2 C-Z slt-pan-hd tap

4шт.
