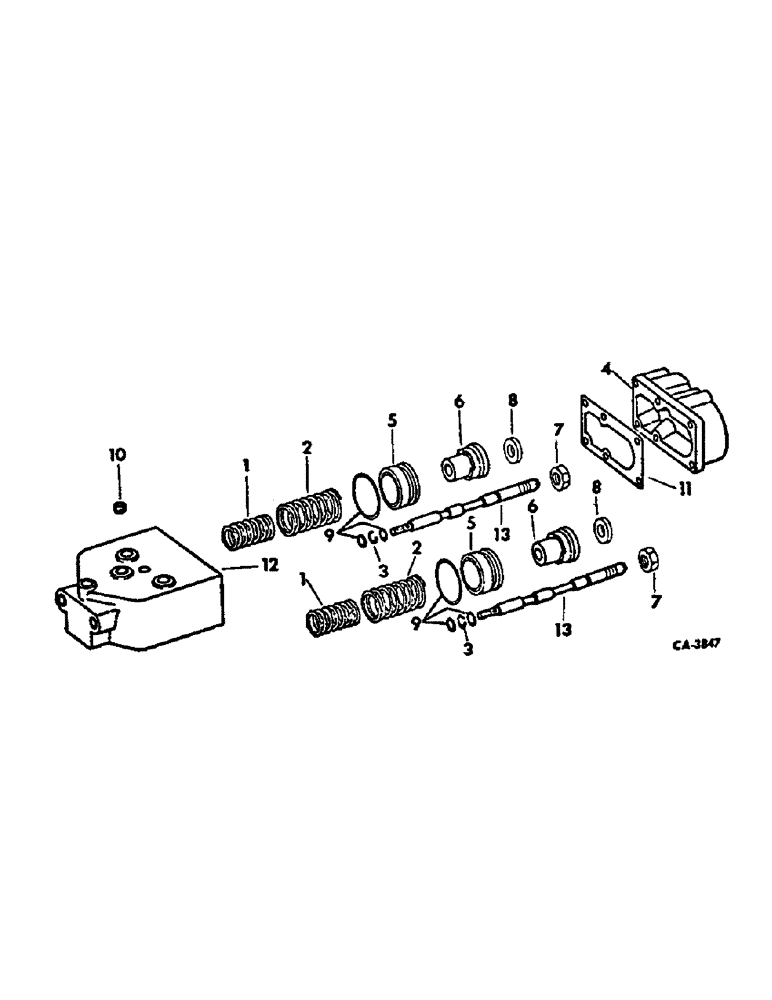

Запчасти Case IH 3788 (04-04) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES

1272218C91

VALVE

ASSY, hyd power brake

1шт.

1

71707C1

SPRING

return

1шт.

2

71708C1

SPRING

large piston

2шт.

3

85633R1

RING

1/2 sq sect snap

2шт.

4

384495R1

CAP

body

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/2-20 x 7/8 hex-hd cap

6шт.

5

69156C2

PISTON

large

2шт.

6

69157C1

PISTON

small

2шт.

7

274637

PIN

LOCKNUT, 1/2-20

2шт.

8

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

1шт.

9

71487C91

PACKAGE

brake valve o-ring and gasket service, Consists of

1шт.

384503R2

GASKET,0.38mm Thk

1шт.

NSS

NOT SOLD SEPARAT

O-RING

4шт.

NSS

NOT SOLD SEPARAT

O-RING

2шт.

NSS

NOT SOLD SEPARAT

O-RING

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

10

140720C1

PLATE

orifice

1шт.

11

384503R2

GASKET,0.38mm Thk

body cap

1шт.

12

BODY, power brake valve, Not serviced separately order 1272218C91

1шт.

13

SPOOL, valve, Not serviced separately order 1272218C91

2шт.
