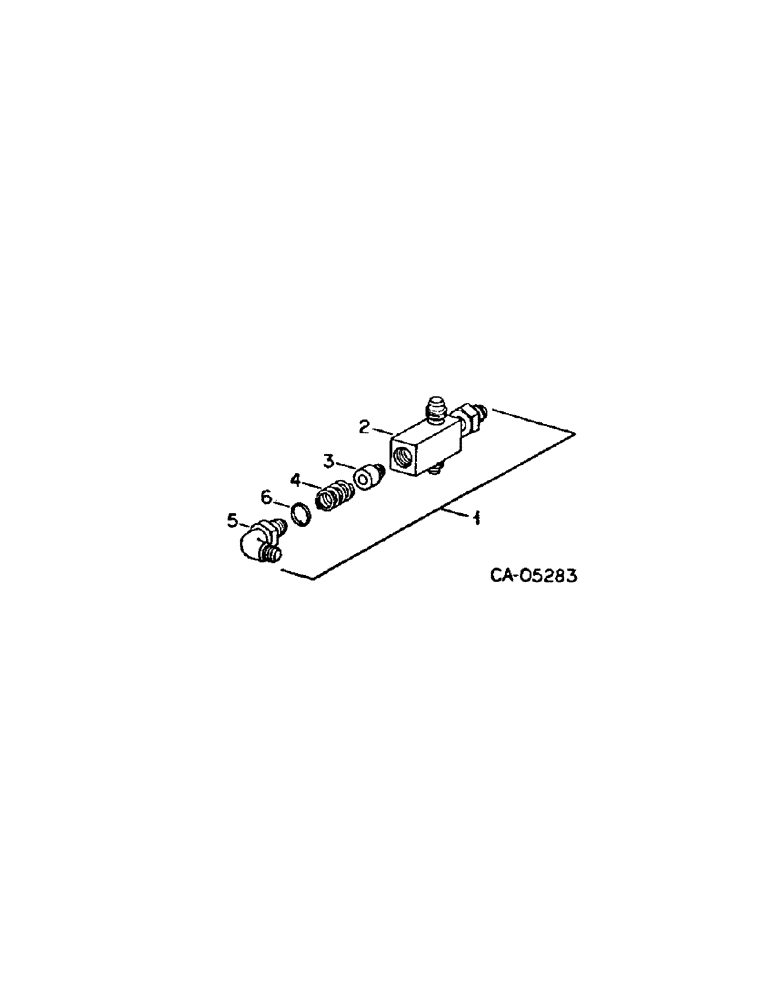

Запчасти Case IH 3788 (04-04[A]) - BRAKES, BRAKE CHECK VALVE (5.1) - BRAKES

1

108863C91

VALVE

ASSY, brake check, 3388 and 3588 tractors

1шт.

1

133546C91

VALVE

ASSY, brake check, 3788 tractors

1шт.

2

BODY, check valve, Not serviced separately order valve assy, 108863C91 or 133546C91

1шт.

3

382304R1

CHECK VALVE

VALVE, brake check

1шт.

4

113951C1

SPRING

check valve, 3388 and 3588 tractors

1шт.

4

133544C1

SPRING

check valve, 3788 tractors

1шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 dg flared tube adj str thd 90 deg

1шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
