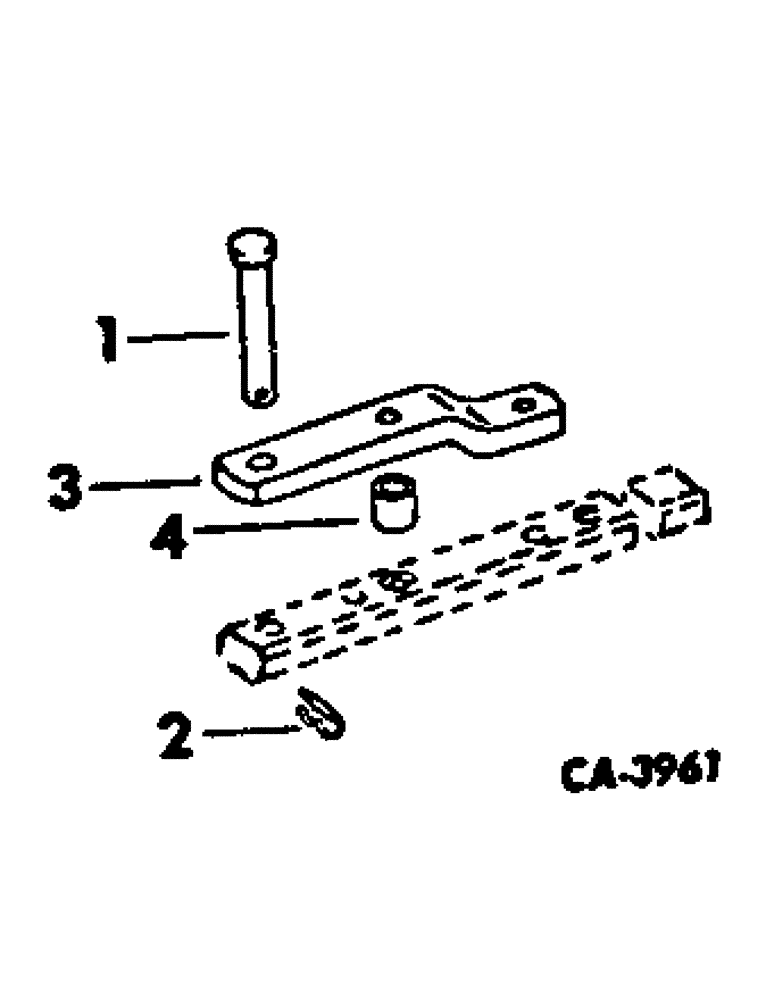

Запчасти Case IH 3788 (09-09) - FRAME, HAMMER STRAP (12) - FRAME

108511C91

PACKAGE

PARTS ACCESSORY, hammer strap, For tractors equipped with one piece swinging drawbar

1шт.

1

70498C1

PIN

swinging drawbar clevis

1шт.

2

520175R11

AXLE PIN

PIN ASSY, quick attachable cotter

1шт.

3

108506C1

STRAP

drawbar

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

3/4 x 3-3/4 pln type 5

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

1шт.

425-1012

NUT,3/4"-10, G5

3/4 pln type 5

1шт.

4

483858R1

SPACER

drawbar strap

1шт.
