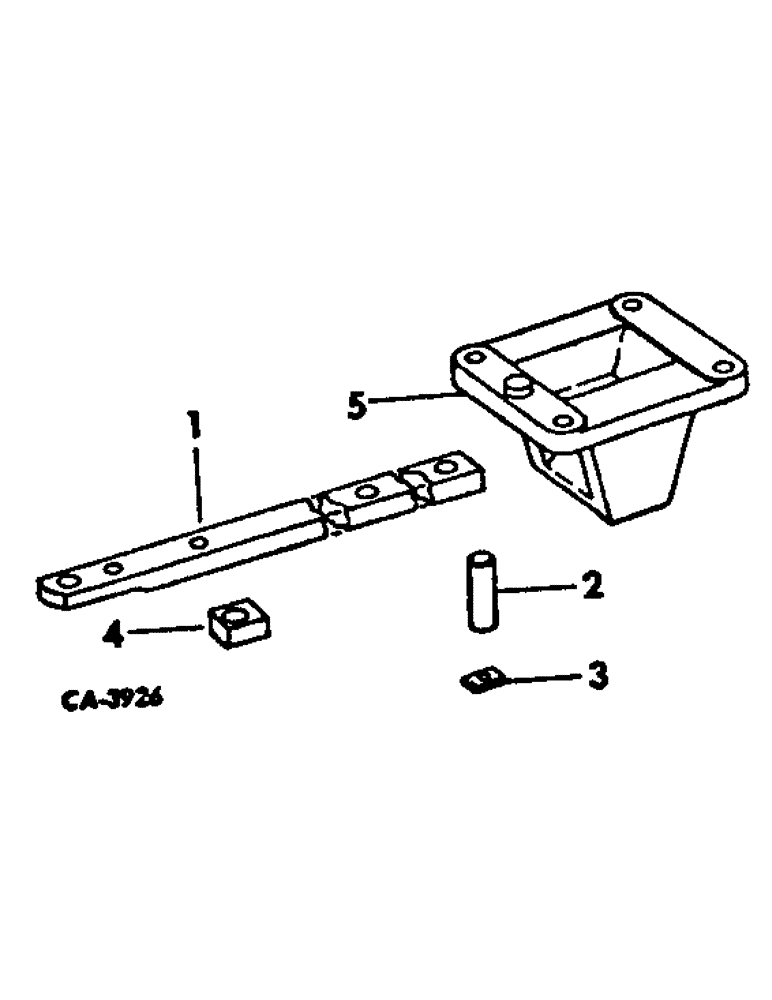

Запчасти Case IH 3788 (09-05) - FRAME, SWINGING DRAWBAR, ONE PIECE (12) - FRAME

1

72476C1

BAR

DRAWBAR, swinging, 56 in., 3388 tractors

1шт.

1

72571C1

BAR

DRAWBAR, swinging, 58 in., 3588 tractors w/1-3/8 IPTO shaft, Start Serial: 8912

1шт.

1

72571C1

BAR

DRAWBAR, swinging, 58 in., 3788 tractors w/1-3/8 IPTO shaft

1шт.

1

108504C1

BAR

DRAWBAR, swinging, 58 in., 3588 tractors w/1-3/8 IPTO shaft, Serial Range: -8911

1шт.

1

108503C1

BAR

DRAWBAR, swinging, 62 in., 3588 tractors w/1-3/4 IPTO shaft w/o cam sway limiting system

1шт.

1

108503C1

BAR

DRAWBAR, swinging, 62 in., 3588 tractors w/1-3/4 IPTO shaft & cam sway limiting system, Serial Range: -8911

1шт.

1

108503C1

BAR

DRAWBAR, swinging, 62 in., 3788 tractors w/1-3/4 IPTO shaft w/o cam sway limiting system

1шт.

1

73229C1

BAR

DRAWBAR, swinging, 62 in., 3588 tractors w/1-3/4 IPTO shaft & cam sway limiting system, Start Serial: 8912

1шт.

1

73229C1

BAR

DRAWBAR, swinging, 62 in., 3788 tractors w/1-3/4 IPTO shaft & cam sway limiting system

1шт.

2

108505C1

PIN

swinging drawbar

1шт.

3

67828C1

RETAINER

swinging drawbar pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

108507C1

BLOCK

swinging drawbar stop

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2-1/4 pln type 5, Use as a stop on tractors w/o cam sway limiter system

2шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

5/8 x 4-3/4 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, Use as a stop on tractors with cam sway limiter system

2шт.

5

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 3388 tractors

1шт.

5

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 3588 tractors w/o cam sway limiting system using 1-3/4 IPTO shaft, Start Serial: 8912

1шт.

5

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 3788 tractors w/o cam sway limiting system using 1-3/4 IPTO shaft

1шт.

5

108508C1

SUPPORT

ASSY, swinging drawbar pivot

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5, 3588, Serial Range: -8911

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5, 3588 w/cam sway limiting system using 1-3/4 IPTO shaft, Start Serial: 8912

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5, 3788 w/cam sway limiting system using 1-3/4 IPTO shaft

4шт.
