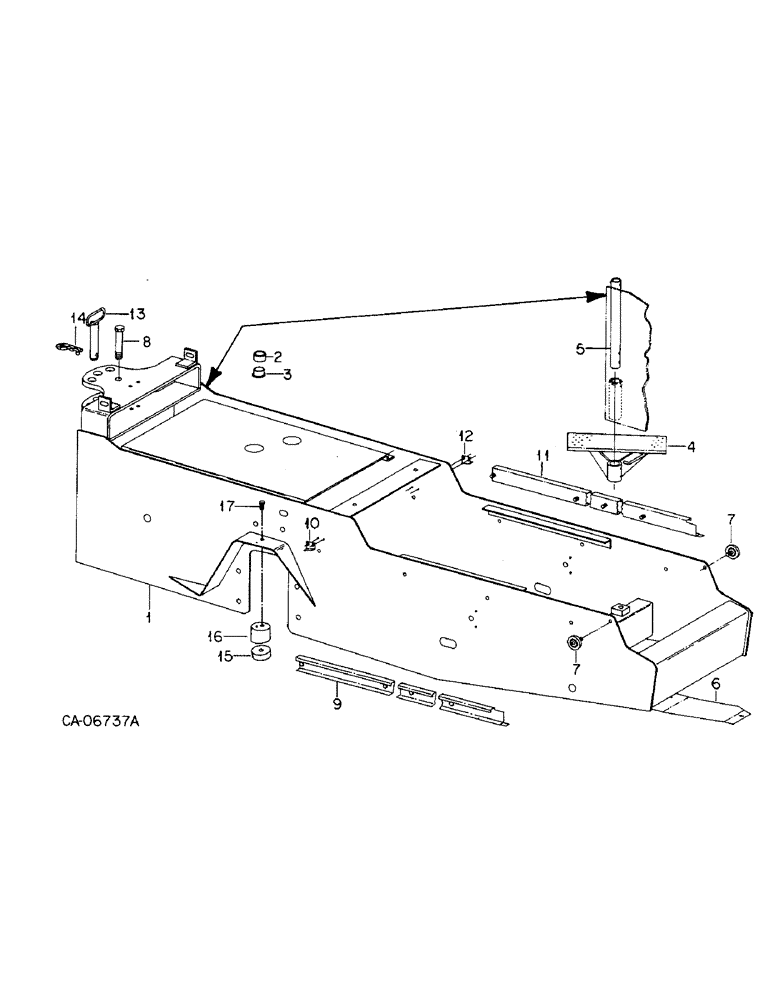

Запчасти Case IH 3788 (09-01) - FRAME, FRONT FRAME (12) - FRAME

1

224972C91

PACKAGE

front frame assy, Replaces frame, 142088C93 by also ordering four spacers, 132990C1 and four washers, 25724R1, 3388, Consists of, Serial Range: -10490

1шт.

1

224972C91

PACKAGE

front frame assy, Replaces frame, 142088C93 by also ordering four spacers, 132990C1 and four washers, 25724R1, 3588, Consists of, Serial Range: -13053

1шт.

1

224972C91

PACKAGE

front frame assy, Replaces frame, 142088C93 by also ordering four spacers, 132990C1 and four washers, 25724R1, 3788, Consists of, Serial Range: -10409

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

146512C91

INTERIOR LIGHT

LIGHT ASSY

2шт.

142225C2

SHIELD

ASSY, wind diverter

1шт.

143627C2

STRAP

ASSY

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

4шт.

STRIP, fuel tank strap, Use 1630MM from bulk roll marked 990543R1

2шт.

147023C94

FRAME ASSY, front

1шт.

124506C1

DECAL

PRODUCT GRAPHIC

2шт.

819809C2

DECAL

PRODUCT GRAPHIC, warning

1шт.

1

147023C94

FRAME ASSY, front w/product graphic, Includes ref nos 2 & 3, 3388, Start Serial: 10491

1шт.

1

147023C94

FRAME ASSY, front w/product graphic, Includes ref nos 2 & 3, 3588, Start Serial: 13054

1шт.

1

147023C94

FRAME ASSY, front w/product graphic, Includes ref nos 2 & 3, 3788, Start Serial: 10410

1шт.

2

146905C1

BUSHING,44.53mm ID x 59mm OD x 30.5mm L

steering lower, Replaces 132999C1

2шт.

3

133000C1

BUSHING,35mm ID x 47.5mm OD x 30mm L

steering upper

2шт.

4

134992C2

STEP

ASSY

1шт.

5

134986C1

TUBE

ASSY, step

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

6

142225C2

SHIELD

ASSY, wind diverter

1шт.

NLS

NO LONGER SERVICED

3шт.

102635

NUT,3/8"-16, G5

3шт.

120388

.438 x 1.000 x .064

3шт.

7

141832C4

ROLLER

track

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

8

21627R1

BOLT

frame pivot 1 x 7 type 8

2шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

4шт.

25531R1

NUT,1"-8, G8

1 phc type 8

2шт.

9

132979C2

CHANNEL

ASSY, frame track RH

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

4шт.

10

138789C2

STOP

SUPPORT, frame rear side (Stop)

1шт.

102635

NUT,3/8"-16, G5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

132980C2

CHANNEL

ASSY, frame track LH

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

4шт.

12

138787C2

STOP

SUPPORT, frame rear side (Stop)

1шт.

NLS

NO LONGER SERVICED

3/8 pln hi-crown stl

2шт.

NLS

NO LONGER SERVICED

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

13

134809C1

PIN

ASSY, frame lock

1шт.

14

591107R1

COTTER PIN

lower link

1шт.

15

216293H2

BUMPER

front axle

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

16

138647C1

SPACER

ASSY, oscillation stop

2шт.

20491R1

DOWEL,1/4" x 5/8"

PIN, 1/4 x .625 pln hdn dowel

2шт.

17

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 znd hex-hd mach

2шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

1266425C91

PACKAGE

front frame upper pivot service, Consists of

1шт.

26011R1

BOLT,Hex, 1" - 8 x 9", Gr 8

1 x 9 phc type 8

1шт.

25847R1

WASHER

1.062 x 2.00 x .209 hdn

2шт.

1258473C1

BUSHING

flange

1шт.

25531R1

NUT,1"-8, G8

1 phc type 8

1шт.

NSS

NOT SOLD SEPARAT

TEMPLATE, upper pivot rework

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
