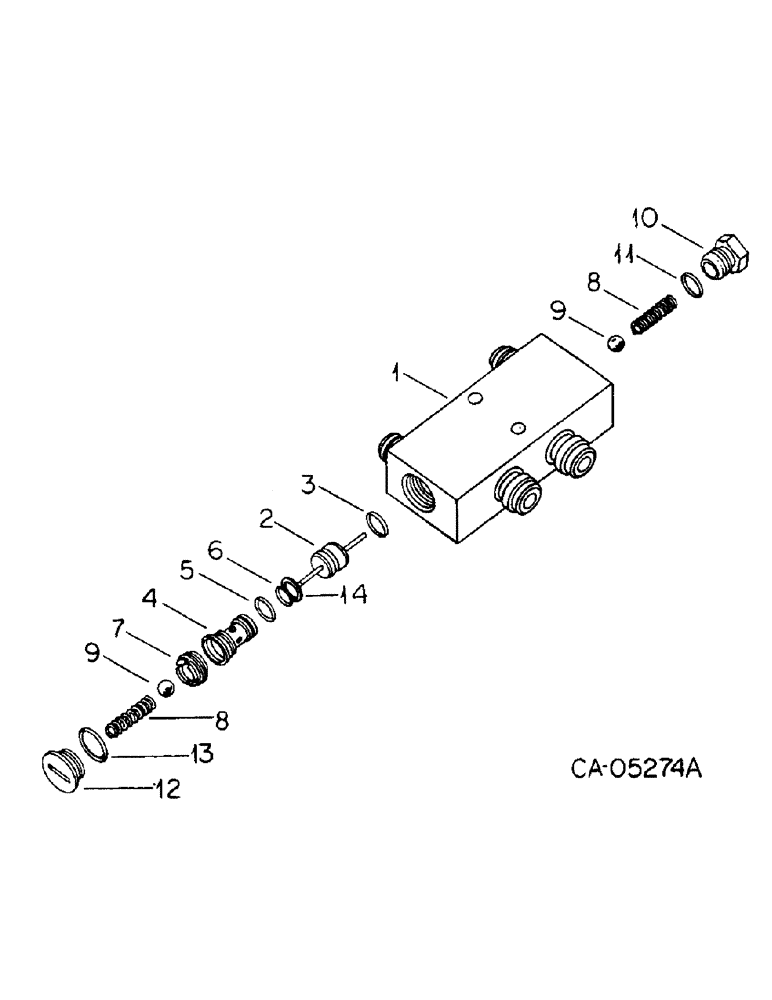

Запчасти Case IH 3788 (10-38) - HYDRAULICS, ALTERNATING CHECK VALVE (07) - HYDRAULICS

142864C95

VALVE

ASSY, alternating check

1шт.

1

BLOCK ASSY, check valve, Not serviced separately, Order check valve assy

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON ASSY, alternating check

1шт.

REF 2 IS NSS, WILL NOT BE EITHER PER ALLAN JANSSEN. MUST GO TO THE COMPLETE ASSY. CNS

1шт.

3

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, piston

1шт.

4

374087R21

RETAINER

ASSY, check valve ball

1шт.

5

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

6

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer small

1шт.

7

374172R1

NUT

check valve ball retainer

1шт.

8

372649R1

SPRING

check valve

2шт.

9

17016R1

BALL,1/2" Dia

2шт.

10

138168C2

PLUG, centering spring

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

12

374088R1

PLUG

check valve

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

1шт.

14

142865C1

SEAL

teflon

1шт.
