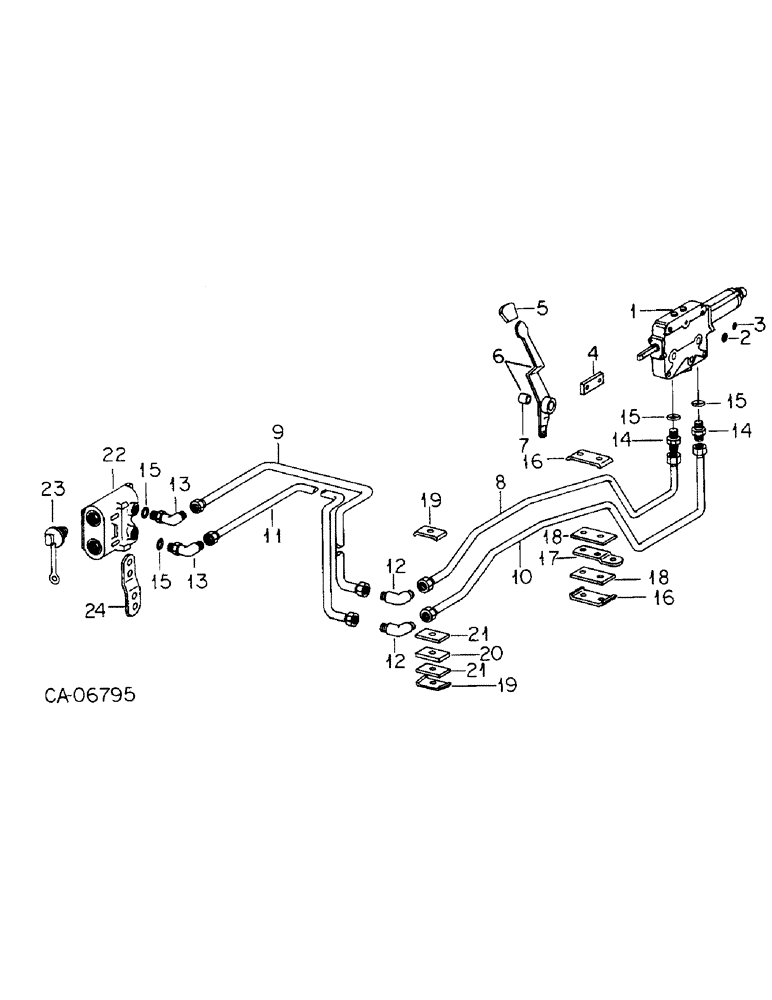

Запчасти Case IH 3788 (10-30) - HYDRAULICS, FOURTH VALVE FOR QUADRUPLE AUXILIARY VALVES (07) - HYDRAULICS

139165C91

PARTS ACCESSORY, fourth auxiliary valve

1шт.

1

113888C93

VALVE

ASSY, close center aux valve, refer to close center control valve this group for list of components

1шт.

20850R1

BOLT,Hex, 3/8"-16 x 8 1/2", G8

3/8 x 8-1/2 pln type 8

4шт.

2

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

4шт.

3

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

4

139013C1

LINK

aux valve operating

1шт.

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

2шт.

390304C1

WASHER

.344 x .688 x .065 hdn

1шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

1259763C1

KNOB

aux valve control, tan

1шт.

6

120472C91

HANDLE

ASSY, fourth aux valve

1шт.

7

120464C1

BUSHING,19.07mm ID x 20.68mm OD x 13.21mm L

valve operating lever

1шт.

16066R1

WASHER

SPACER, valve handle outer (Or as required)

2шт.

21018R1

WASHER

SPACER, valve handle outer

1шт.

8

1264793C1

TUBE

ASSY, fourth valve raise, front, Replaces 139079C1 by also ordering tube assys 1259803C1, 1264794C1 & 259804C1 and support 1259805C1

1шт.

9

1259803C1

HYD TUBE

TUBE ASSY, fourth valve raise, rear, Replaces 139080C1 by also ordering tube assys 1264793C1, 1264794C1 & 1259804C1 and support 1259805C1

1шт.

10

1264794C1

TUBE

ASSY, fourth valve drop, front, Replaces 139081C1 by also ordering tube assys 1264793C1, 1259803C1 & 1259804C1 and support 1259805C1

1шт.

11

1259804C1

HYD TUBE

TUBE ASSY, fourth valve drop, rear, Replaces 139082C1 by also ordering tube assys 1264793C1, 1259803C1 & 1264794C1 and support 1259805C1

1шт.

12

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 37 deg hyd flared tube 90 deg elbow

2шт.

13

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

16

120520C1

CLAMP

aux valve tubes

2шт.

17

120521C1

PLATE

isomount aux valve tubes

1шт.

18

120522C1

STRIP

isomount aux valve tubes

2шт.

19

139113C1

CLAMP

fourth valve tubes

2шт.

20

139116C1

SPACER

fourth valve tube clamp

1шт.

21

139117C1

STRIP

fourth valve tube clamp

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

22

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, refer to female coupler this group for list of components

1шт.

23

64757C1

PLUG

coupler dust

2шт.

24

120012C1

SUPPORT

BAR, coupler mtg

1шт.

179882

PIN

1/2 x 1-1/8 pln type 5

2шт.
