Запчасти Case IH 3788 (10-27) - HYDRAULICS, DOUBLE AUXILIARY VALVES, CLOSE CENTER (07) - HYDRAULICS

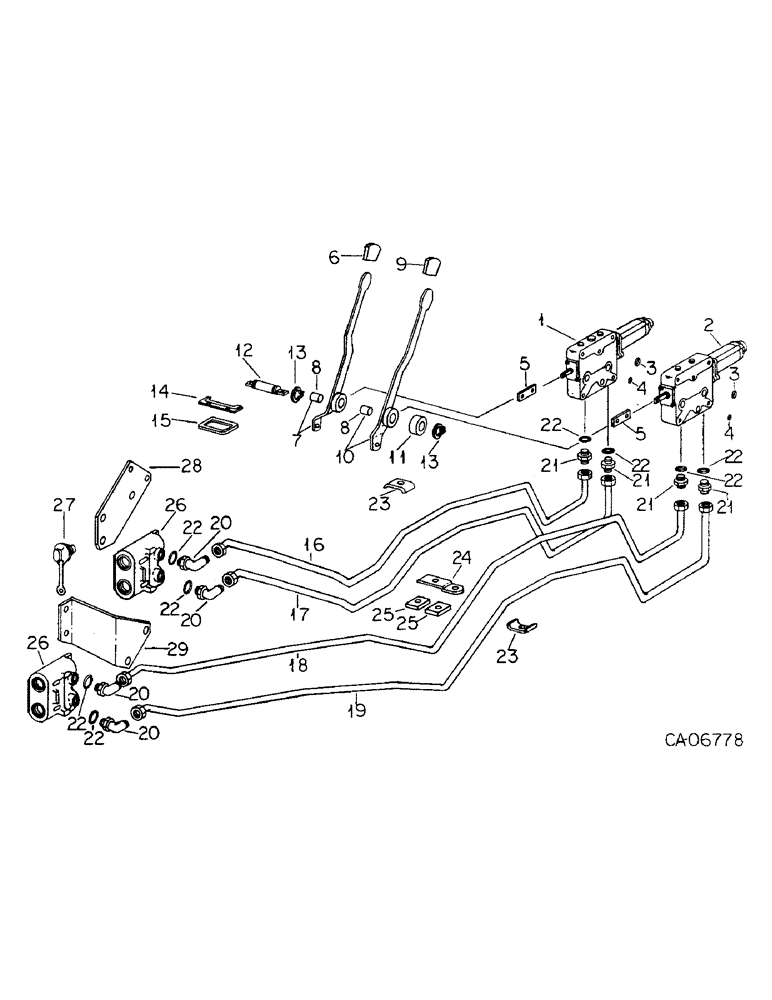

Схема запчастей Case IH 3788 - (10-27) - HYDRAULICS, DOUBLE AUXILIARY VALVES, CLOSE CENTER (07) - HYDRAULICS
23
24
5
7
8
14
13
12
13
20
9
22
27
10
15
21
18
22
22
2
22
16
5
22
21
23
6
22
22
1
26
11
20
25
4
20
20
21
19
3
29
17
8
26
25
21
28
22
4
3

Артикул

Название

Примечание

Количество

1

123032C93

VALVE

ASSY, motor control, refer to close center control valve this group for list of components

1шт.

ref #1 - (P/N 123032C93) - see SB 5054

1шт.

20063R1

BOLT

3/8 x 5 pln type 8

2шт.

2

113888C93

VALVE

ASSY, aux control, refer to close center control valve this group for list of components

1шт.

20063R1

BOLT

3/8 x 5 pln type 8

2шт.

3

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

8шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

4шт.

5

139013C1

LINK

valve operating

2шт.

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

4шт.

390304C1

WASHER

.344 x .688 x .065 hdn

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

6

1259760C1

BALL KNOB

KNOB, motor control valve, black

1шт.

7

120466C91

HANDLE

ASSY, motor control valve

1шт.

8

120464C1

BUSHING,19.07mm ID x 20.68mm OD x 13.21mm L

valve operating lever

2шт.

9

1259761C1

BUTTON

KNOB, aux control valve, yellow

1шт.

10

120468C91

HANDLE

ASSY, aux control valve

1шт.

11

120476C1

SPACER

valve handle hub

2шт.

12

104532C2

SHAFT

control pivot

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

661652R1

SNAP RING,#75, Ext

Control handle #75, Ext

2шт.

16066R1

WASHER

SPACER, inner & outer

1шт.

21018R1

WASHER

SPACER, outer

1шт.

14

RETAINER, control platform seal, Order 135877C1

1шт.

15

135877C1

SEAL

control, Replaces 104535C1 and 104533C1

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

4шт.

16

128010C1

HYD TUBE

TUBE ASSY, motor valve raise

1шт.

17

128011C1

HYD TUBE

TUBE ASSY, motor valve drop

1шт.

18

127966C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

19

127967C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

20

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

1/2 x 7/8 pln type 5

4шт.

21

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

4шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

8шт.

23

486004R1

CLAMP

aux valve tubes

2шт.

24

104796C1

PLATE

insulator aux valve tubes

1шт.

25

104799C1

STRIP

insulator aux valve tube

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

26

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female

2шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

1/2 x 7/8 pln type 5

4шт.

27

64757C1

PLUG

coupler dust

4шт.

28

535033R3

BRACKET

coupler mtg LH

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 cap

1шт.

29

1259805C1

BRACKET

coupler mtg RH, Replaces 104317C1

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 cap

2шт.
