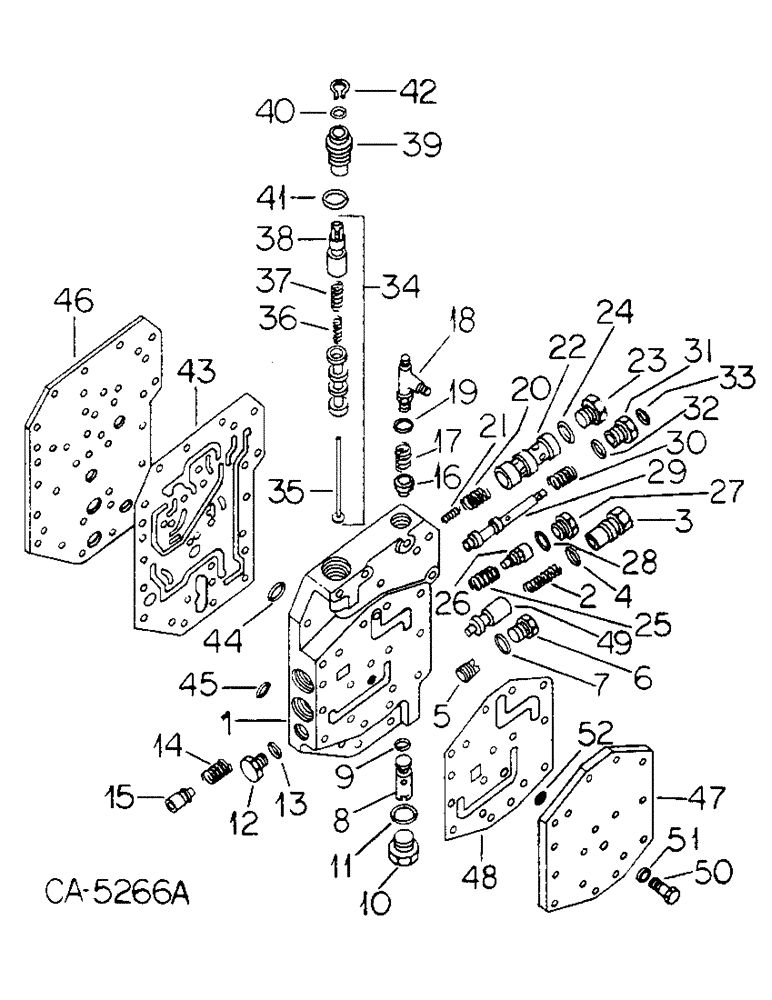

Запчасти Case IH 3788 (10-14) - HYDRAULICS, MULTIPLE CONTROL VALVE, TRACTORS WITH TORQUE AMPLIFIER (07) - HYDRAULICS

VALVE ASSY, multiple control, 133444C91

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

SCREW, 5/16-18 x 1-3/8 hex-hd cap type 8

1шт.

445625

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

SCREW, 5/16-18 x 1-3/4 hex-hd cap type 8

1шт.

454865

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 pln type 8

1шт.

454866

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

5/16 x 2-1/2 pln type 8

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

BODY ASSY, multiple control valve, Not serviced separately, Order service package, 63560C94

1шт.

2

379211R1

SPRING

flow control valve

1шт.

3

382297R1

PLUG

flow control valve

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube flow control valve plug

1шт.

5

63723C1

VENT

flow control, orifice

1шт.

6

9410357

PLUG

1/2-20 znd str-thd o-ring boss flow control orifice port

1шт.

8

NOT USED THIS APPLICATION

1шт.

9

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/1L x 3/32, safety valve

1шт.

10

536855R1

PLUG

3/4-16 znd str-thd o-ring boss, safety valve

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, safety valve plug

1шт.

12

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 znd str-thd o-ring boss, power steering input port

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube, Power steering input port plug

1шт.

14

123357C1

SPRING

oil cooler by-pass valve

1шт.

15

123356C1

VALVE

by-pass

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 chaffered str by-pass valve retaining

1шт.

16

382304R1

CHECK VALVE

VALVE, brake check

1шт.

17

113936C1

SPRING

brake check valve

1шт.

18

123051C1

TEE

ASSY, hyd tube

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube, regulator pressure port

1шт.

20

382306R1

SPRING

pressure regulator valve outer

1шт.

21

390819R1

VALVE SPRING

SPRING, pressure regulator valve inner

1шт.

22

382307R11

VALVE

ASSY, pressure regulator

1шт.

23

536855R1

PLUG

3/4-16 znd str-thd o-ring boss, pressure regulator valve

1шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, pressure regulator valve plug

1шт.

25

382312R1

SPRING

lube regulator

1шт.

26

382301R1

LOCK VALVE

VALVE

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 chaffered str

1шт.

27

384403R1

PLUG

lube regulator by-pass valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, lube regulator by-pass valve plug

1шт.

29

391942R2

VALVE

clutch dump

1шт.

30

382310R1

SPRING

dump valve

1шт.

31

387934R2

PLUG

dump valve

1шт.

32

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, dump valve plug

1шт.

33

529883R91

OIL SEAL

clutch dump valve plug

1шт.

34

382313R94

VALVE

ASSY, drive selector, Consists of ref nos 35, 36, 37 & 38

1шт.

35

382315R2

GUIDE

drive selector

1шт.

36

382317R1

SPRING

selector valve inner

1шт.

37

404290R1

SPRING

selector valve outer

1шт.

38

382319R2

PIN,20.32mm OD x 93.98mm L

1шт.

20347R1

PIN,5/64" x 3/4", Coiled

1шт.

39

382321R2

SCREW,1 3/16" - 18 x 1.60"

drive selector valve retaining

1шт.

40

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, drive selector valve stem

1шт.

41

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

11/16 x 1-1/4 x 3/32, valve retaining screw

1шт.

42

382627R1

SNAP RING,#59, Ext

Ring, Snap, , drive selector valve #59, Ext

1шт.

43

382323R3

GASKET

mulitple control valve inner

1шт.

44

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

1шт.

45

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

power steering input port

1шт.

46

133426C1

PLATE

multiple control valve inner

1шт.

47

138053C1

COVER

multiple control valve outer

1шт.

48

382326R4

GASKET

multiple control valve cover

1шт.

49

VALVE, flow control, Not serviced separately, Order service package, 63560C94

1шт.

50

25828R1

BOLT,Hex, 9/16" - 18 x 1", Gr 8

9/16-NF x 1 phc type 8

1шт.

51

138260C1

SEAL

dyna

1шт.

52

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

63560C94

PACKAGE

multiple control valve service, Consists of ref nos. 1 thru 52 and service parts not applicable to this tractor

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

9410360

PLUG

5/8 C-Z str thd o-ring boss

1шт.

113935C1

ELBOW

1шт.

384444R92

VALVE

1шт.

113937C1

SPRING

1шт.

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

CONNECTOR, 3/8 C-Z hyd fld long swivel

1шт.

59752C1

SPRING

1шт.

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube

1шт.

393877R91 Package O-Rings and gsk set.

1шт.

7

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Flow control orifice port plug

1шт.
