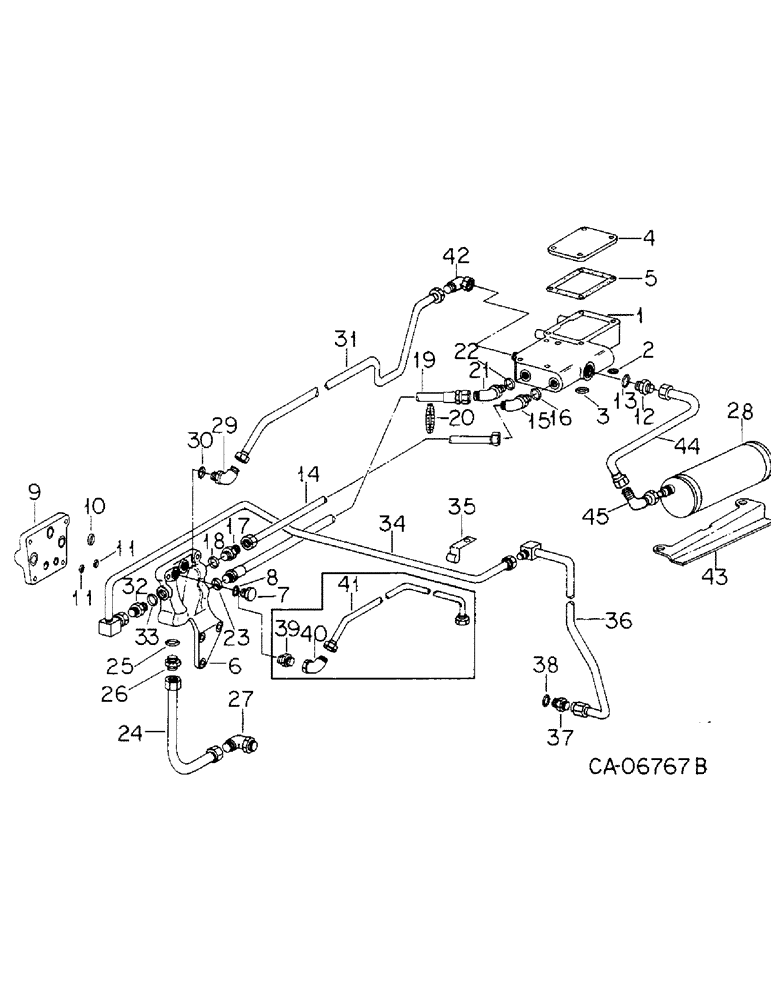

Запчасти Case IH 3788 (10-10) - HYDRAULICS, PRIORITY VALVE AND CONNECTIONS (07) - HYDRAULICS

1

133799C91

VALVE

ASSY, priority basic, refer to priority valve this group for list of components

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-15/16 x 3/32

1шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

4

108514C1

COVER

linkage access

1шт.

5

108515C1

GASKET

cover

1шт.

6

127841C1

BRACKET

aux valve

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

9410357

PLUG

o-ring boss hex, tractor w/o draft control

1шт.

9

127896C1

COVER

aux valve end

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

10

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

3шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

12

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4, 37 deg hyd flared tube

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

14

127935C1

HYD TUBE

TUBE ASSY, motor supply

1шт.

15

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4, 37 deg hyd flared tube adj str thd 45 deg

1шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4, 37 deg hyd flared tube

1шт.

18

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

19

142508C3

HOSE,15.88mm ID x 641.4mm L, SAE 100R2

auxiliary supply

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 3388, Serial Range: -10860

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 3588, Serial Range: -14079

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 3788, Serial Range: -10868

1шт.

21

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4 37 deg hyd flrd tube adj str thd 45 deg

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 O.D. tube

1шт.

23

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 O.D. tube

1шт.

24

127939C1

HYD TUBE

TUBE ASSY, aux valve bracket return

1шт.

25

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

26

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4-37 deg hyd flared tube

1шт.

27

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

3/4 c-z hyd flared tube 90D

1шт.

28

1252167C1

CYLINDER

ATTENUATOR ASSY, hyd pressure cylinder, tank, Replaces 140715C1 by also ordering the following parts

1шт.

336257R1

CLAMP

4.50 min hvy/duty t-bolt

1шт.

1252169C1

BRACKET

mounting

1шт.

1252168C1

HYD TUBE

TUBE ASSY, attenuator

1шт.

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 c-z hyd fld 90D swivel

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

2шт.

29

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

hyd 37 deg flare adj

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

31

148895C1

HYD TUBE

TUBE ASSY, motor prority signal, Replaces 127937C1 by also ordering elbow, 9410280

1шт.

145330C1

CLAMP

tube

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 O.D. tube

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

1шт.

34

224443C1

TUBE

ASSY, pump signal upper, Replaces 133372C1 by also ordering clip, 140733 & tube 244407C1

1шт.

35

140733C2

CLIP

signal tube

1шт.

36

224407C2

HYD TUBE

TUBE ASSY, pump signal lower, Replaces 133374C1 by also ordering clip, 140733 & tube 224443C1

1шт.

37

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 O.D.tube

1шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

39

127866C1

VALVE

ASSY, draft control signal check, tractors w/draft control

1шт.

40

9410279

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1/2-20 c-z 37 deg hyd flared tube 90 deg swivel, tractors w/draft control

1шт.

41

127936C2

HYD TUBE,0.312" OD, 257.05, 291.08 mm Length

TUBE ASSY, draft control signal, tractors w/draft control

1шт.

42

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 c-z hyd fld short swivel, 3388, Serial Range: -10240

1шт.

42

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 c-z hyd fld short swivel, 3588, Serial Range: -12441

1шт.

42

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 c-z hyd fld short swivel, 3788, Serial Range: -8807

1шт.

42

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel, 3388, Start Serial: 10241

1шт.

42

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel, 3588, Start Serial: 12442

1шт.

42

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel, 3788, Start Serial: 8808

1шт.

43

1252169C1

BRACKET

mounting

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

BOLT, 5/8 x 4-1/4 pln type 5

2шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

2шт.

44

1252168C1

HYD TUBE

TUBE ASSY, attenuator

1шт.

45

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

1шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
