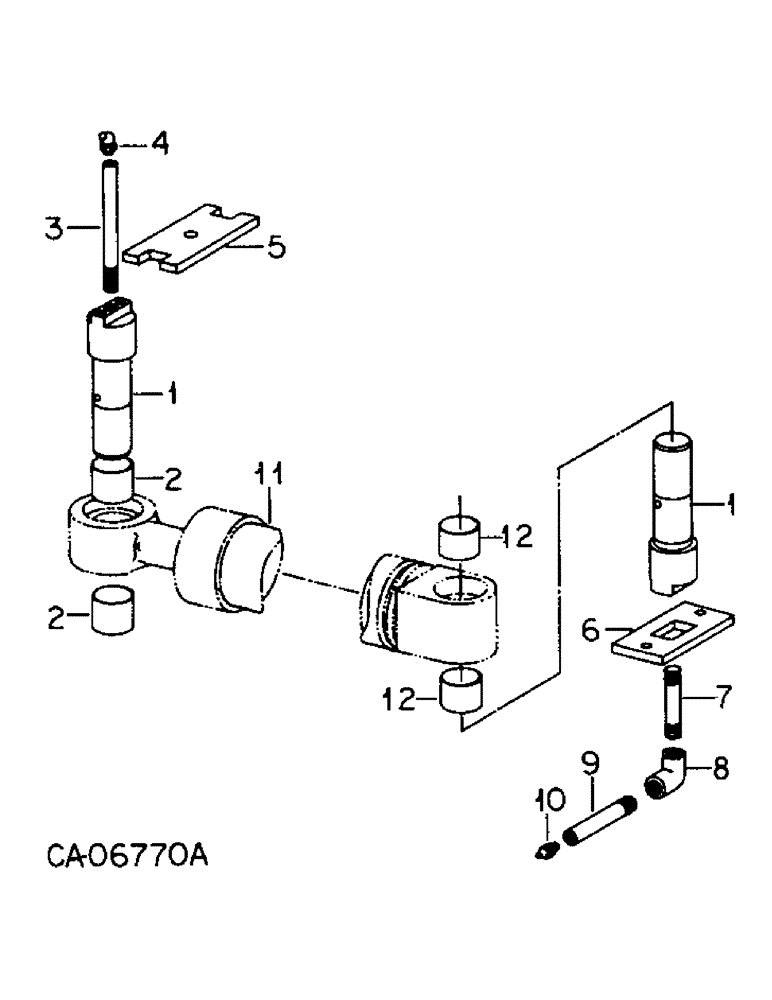

Запчасти Case IH 3788 (10-09) - HYDRAULICS, HYDRAULIC STEERING CYLINDER MOUNTING (07) - HYDRAULICS

1

1258209C1

SHAFT

steering cyl pivot, Replaces 132989C2, by also ordering spacer 132990C2

4шт.

2

132990C2

SPACER

steering cyl, transfer case

4шт.

3

146808C1

ADAPTER

lub fitting pipe, Replaces 14052GA

2шт.

4

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg angle lub

2шт.

5

132995C2

PLATE

shaft retainer rear

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

6

132996C2

LARGE PLATE

PLATE, shaft retainer front

2шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

4шт.

25724R1

WASHER

.406 x 1.125 x .134 hdn, 3388, Start Serial: 9431

4шт.

25724R1

WASHER

.406 x 1.125 x .134 hdn, 3588, Start Serial: 10331

4шт.

25724R1

WASHER

.406 x 1.125 x .134 hdn, 3788

4шт.

200458C1

CAP WASHER

3388, Serial Range: -9430

1шт.

200458C1

CAP WASHER

3588, Serial Range: -10330

1шт.

7

119247

PIPE,Nipple, 1/4" NPT x 4"

NIPPLE, 1/4 x 4 pipe

2шт.

8

444068

ELBOW

1/4-18 90 deg automotive pipe

2шт.

9

650410R1

ADAPTER

lub fitting pipe

2шт.

10

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 ptf special short lub

2шт.

11

CYLINDER, power steering, refer to power steering & connections this group for cylinders

1шт.

12

146944C1

SPACER

steering cyl, front frame, 3388, Serial Range: -9430

4шт.

12

146944C1

SPACER

steering cyl, front frame, 3588, Serial Range: -10330

4шт.

12

132990C2

SPACER

steering cyl, front frame, 3388, Start Serial: 9431

4шт.

12

132990C2

SPACER

steering cyl, front frame, 3588, Start Serial: 10331

4шт.

12

132990C2

SPACER

steering cyl, front frame, 3788 tractors

4шт.
