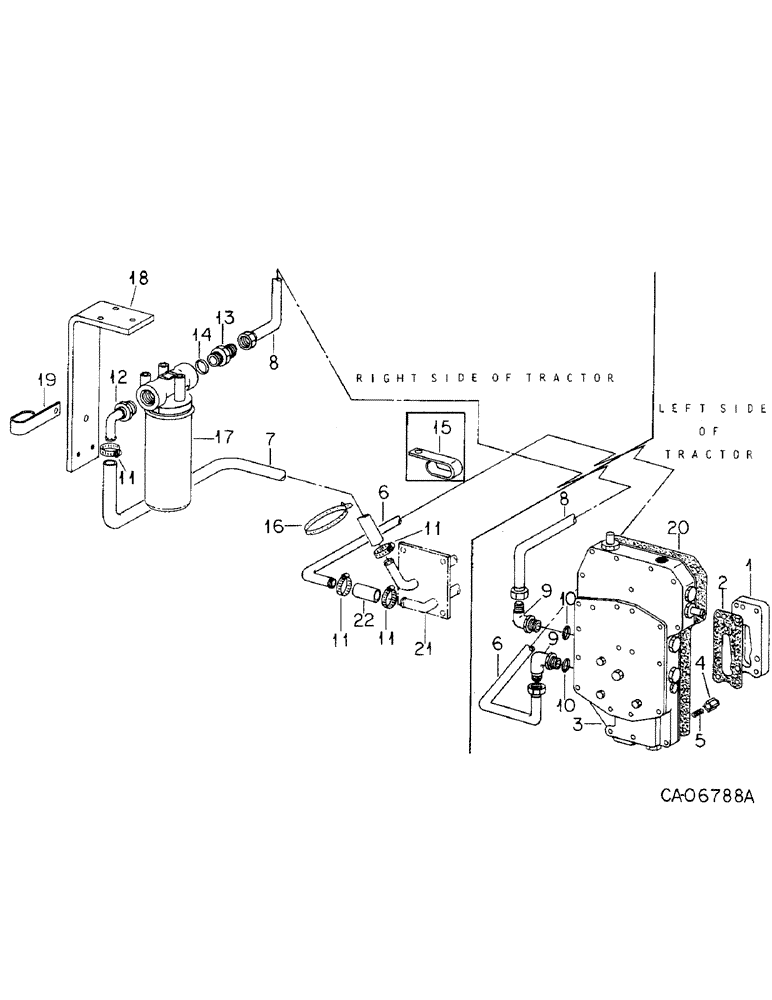

Запчасти Case IH 3788 (10-06) - HYDRAULICS, MULTIPLE CONTROL VALVE AND CONNECTIONS (07) - HYDRAULICS

1

133427C2

BLOCK

MCV jumper

1шт.

2

133428C2

GASKET

MCV jumper block

1шт.

454866

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

5/16 x 2-1/2 pln type 8

4шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

bolt sealing

4шт.

3

VALVE ASSY, multiple control, refer to multiple control valve this group for list of components

1шт.

454866

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

5/16 x 2-1/2 pln type 8

10шт.

445625

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 pln type 8

1шт.

454865

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 pln type 8

8шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

5/16 x 1-3/8 pln type 8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

354057R2

VALVE

power steering return check

1шт.

5

382334R1

SPRING

power steering return check valve

1шт.

6

HOSE, MCV to heat exchanger, Use 25 in. from bulk roll marked 146785C1

1шт.

7

HOSE, heat exchanger to filter, Use 35 in. from bulk roll marked 73199C1

1шт.

8

HOSE, filter to MCV, Use 44 in. from bulk roll marked 146785C1

1шт.

9

104776C3

ELBOW

45 deg barb end, MCV

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 tube

2шт.

11

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, hose

4шт.

12

133824C1

ELBOW

spin filter, Replaces 142036C1

1шт.

13

134958C1

ADAPTER

hose to spin filter

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

2шт.

15

104773C3

CLAMP

CLIP, clutch housing mounted

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

1шт.

16

289862C1

CABLE TIE,3/16" x 7"

STRAP, heat exchanger hose tie, wrap

1шт.

17

137938C91

HYDRAULIC OIL FILTER

FILTER ASSY, hyd, Replaces 562871C91

1шт.

1272942C1

FILTER, ELEMENT

ELEMENT, filter, Replaces 137939C1, service part of 137938C91

1шт.

18

134803C3

BRACKET

filter

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

19

141871C2

CLAMP

CLIP, filter bracket hose

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

20

382335R3

GASKET

multiple control valve plate

1шт.

21

HEAT EXCHANGER, refer to transfer case group 7

1шт.

22

HOSE, 1/2 ID connector, Use 4.2 in. from bulk roll marked 73199C1

1шт.
