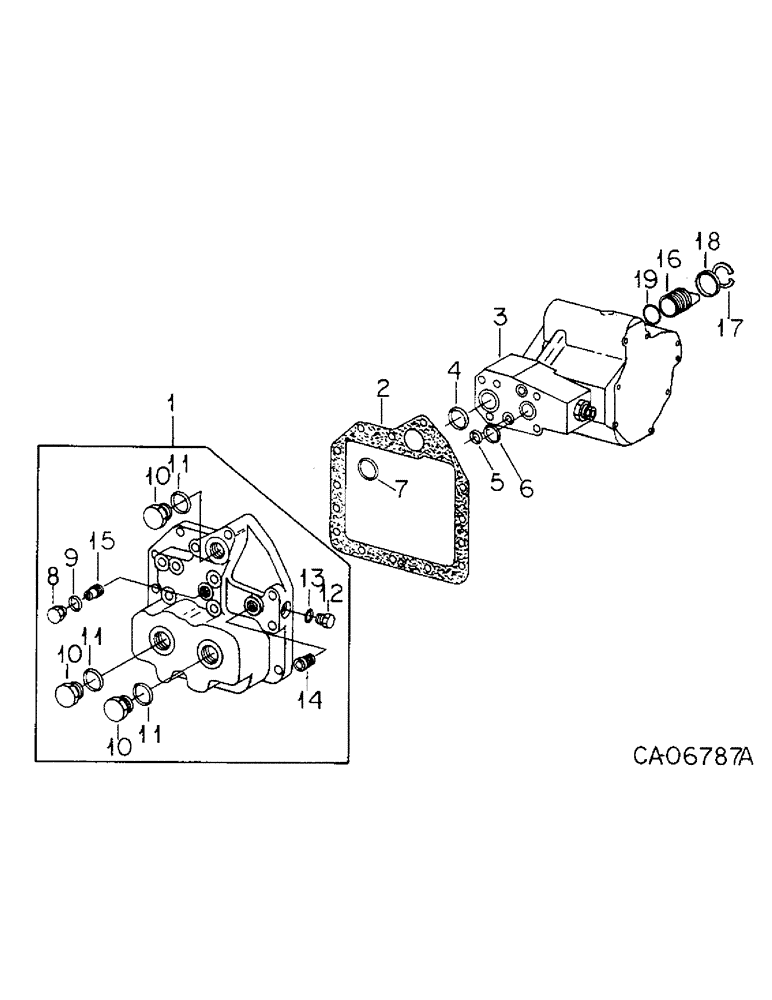

Запчасти Case IH 3788 (10-01) - HYDRAULICS, HYDRAULIC POWER SUPPLY (07) - HYDRAULICS

1

140628C91

FLANGE

ASSY, pump mtg, Includes ref nos. 8 thru 15

1шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

5шт.

130784C1

BOLT

3/8 x 2 pln type 5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 type 5

5шт.

565832R1

WASHER

pump mtg bolt

1шт.

121877C1

LOCK WASHER

WASHER, 3/8 pln lock

12шт.

2

382244R4

GASKET

pump mounting flange

1шт.

3

1255005C97

HYDRAULIC PUMP

PUMP ASSY, piston, renewed, Not serviced separately, Order service package 1263450C91

1шт.

Ref # 3 (1255005C97): Service part # is 1263450C92.

1шт.

3

1255005C97R

REMAN-HYD PUMP

Reman for New P/N 1255005C97, Pump Assy, Piston, Renewed

1шт.

3

1255005C97C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

4

25897R1

O-RING,-022, 90 Duro, .989" ID x .070" Thk

1 x 1-1/8 x 1/16, pressure port

1шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, attenuator port

1шт.

6

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32, signal port

1шт.

7

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame

1шт.

8

9410358

PLUG

3/8 c-z str thd o-ring boss

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

10

9410361

PLUG

PLU, 3/4 c-z str thd o-ring boss

5шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

5шт.

12

9410356

PLUG

1/4 c-z str thd o-ring boss

1шт.

13

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

14

127886C1

BLEEDER VALVE

VALVE ASSY, signal orifice

1шт.

15

140736C1

FILTER SCREEN

SCREEN ASSY, signal

1шт.

16

128186C2

TUBE,1.25" OD, 2.125" Length

pump suction

1шт.

17

27933R1

SNAP RING,#125, 1.188", Ext Spiral

RING, retaining

1шт.

18

537545R92

SEAL

pump suction tube oil

1шт.

19

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 class 5, pump inlet

1шт.

1263450C91

PACKAGE

pfc pump, renewed, Consists of

1шт.

1263450C91C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1263450C92R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump; For N.A. only

1шт.

1263450C92C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only (3388)

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSY, renewed

1шт.

1263472C91

PACKAGE

seal and gasket, Consists of

1шт.

537545R92

SEAL

pump suction tube

1шт.

382257R2

GASKET

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

92766C1

KIT

gear pump conversion, tractors w/Parker pfc pump, Consists of

1шт.

NSS

NOT SOLD SEPARAT

ORIFICE ASSY, signal

1шт.

NSS

NOT SOLD SEPARAT

FITTING

1шт.

NSS

NOT SOLD SEPARAT

SCREW

1шт.

NSS

NOT SOLD SEPARAT

SPOOL, unloading valve

1шт.

NSS

NOT SOLD SEPARAT

PLUG, unloading valve

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, installing

1шт.

See SB-5004, PPH Hitch pump kit, 92933C91 Coupler Kit, 92932C91 Rotating Grp. Kit, 92452C91 Control Blk Kit.

1шт.

See also SB-5023, Converting PPH to constant displacement pump (parts and inst.)

1шт.
