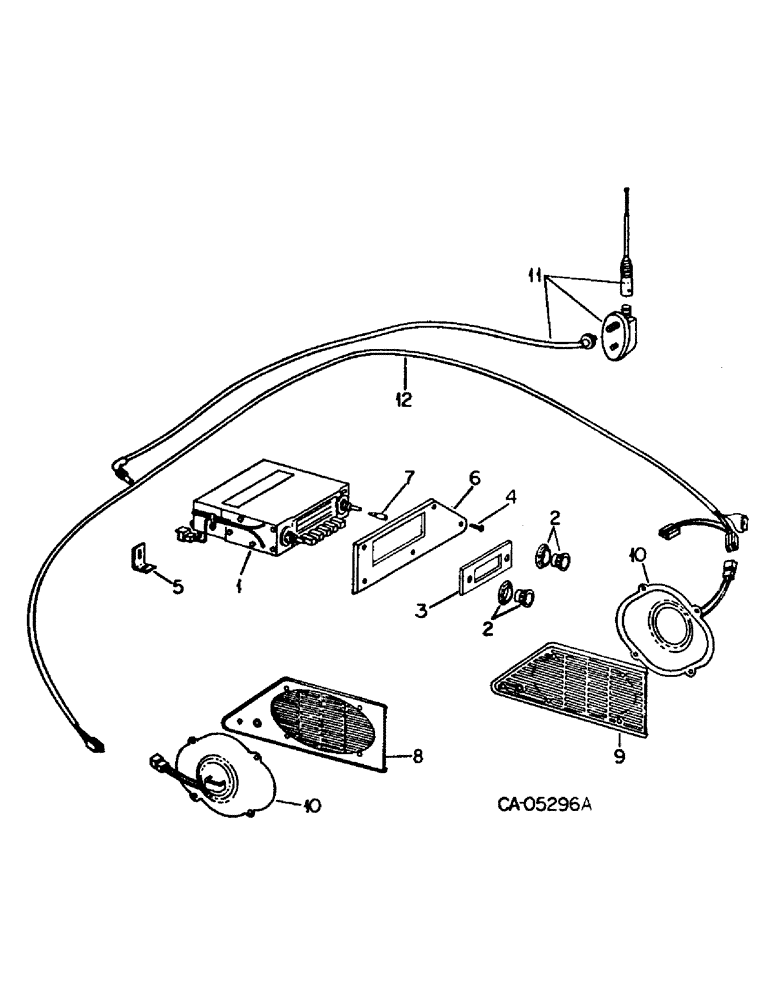

Запчасти Case IH 3788 (08-21) - ELECTRICAL, RADIO AND TAPE PLAYER (06) - ELECTRICAL

111640C92

RADIO

PARTS ACCESSORY, radio AM w/fader control, Consists of ref nos. 1 through 12 and instructions

1шт.

111641C92

RADIO

PARTS ACCESSORY, radio AM/FM monaural w/fader control, Consists of ref nos. 1 through 12 and instructions

1шт.

111642C92

RADIO

PARTS ACCESSORY, radio AM/FM multiplex w/8 track tape player, Consists of ref nos. 1 through 12 and instructions

1шт.

70566C91

JACK

PARTS ACCESSORY, headphone jack connecting cable

1шт.

1

111643C1

RADIO

AM w/fader control, Replaces 111644C1

1шт.

1

111645C1

RADIO

AM/FM monaural w/fader control, Replaces 111646C1

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape player

1шт.

142919C1

NUT

large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142921C1

NUT

small shaft

2шт.

2

117993C1

PACKAGE

KIT, radio control knobs

1шт.

3

117992C1

PLATE

trim

1шт.

4

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCRW, trim panel mtg

15шт.

5

117818C1

ANGLE

radio mouting, For use w/radio parts accessory

2шт.

5

143124C1

ANGLE

radio mounting, For deluxe cab

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

118376C1

PANEL

radio trim, Replaces 111401C1

1шт.

7

117995C1

PACKAGE

KIT, trim panel fastener, Consists of 5 fasteners

3шт.

8

111402C2

PANEL

speaker trim LH

1шт.

117730C1

PLUG

plastic

1шт.

142940C1

PLUG

plastic .625 dia

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8 x 1-3/4 polyseal tap

1шт.

9

111403C1

PANEL

speaker trim RH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8 x 1-3/4 polyseal tap

1шт.

10

70727C3

SPEAKER

4 x 8 8 ohm

2шт.

10

142956C1

SPEAKER

4 x 8 4 ohm

2шт.

11

111237C1

ANTENNA

ASSY

1шт.

169850C1

CLIP

1шт.

12

118440C2

HARNESS

ASSY, radio and speaker, Replaces 111431C2, Use w/speaker 70727C3

1шт.

12

143177C1

HARNESS

ASSY, radio and speaker, Use w/speaker 142956C1

1шт.

445635

FUSE,3 Amp, Type 1AG

aga 3 amp

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack, tractor w/rops frame, Consists of

1шт.

118070C1

CABLE

ASSY

1шт.

118258C1

PANEL

GRILLE

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

W/LOCKWASHER

8шт.

118120C1

SUPPORT

1шт.

28058R1

SCREW

8шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

187626C2

ANGLE

1шт.

187625C1

COVER ASSY

COVER

1шт.

118278C1

KIT

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.

1252467C1

COVER

dial

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

radio antenna cable

1шт.

118441C1

LARGE PLATE

PLATE, radio trim

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button multiplex stereo, Consists of ref nos. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 plus

1шт.

146560C1

RADIO

AM/FM push button stereo

1шт.

142919C1

NUT

large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142921C1

NUT

small shaft

2шт.
