Запчасти Case IH 3788 (08-19) - ELECTRICAL, AM-FM-CB RADIO (06) - ELECTRICAL

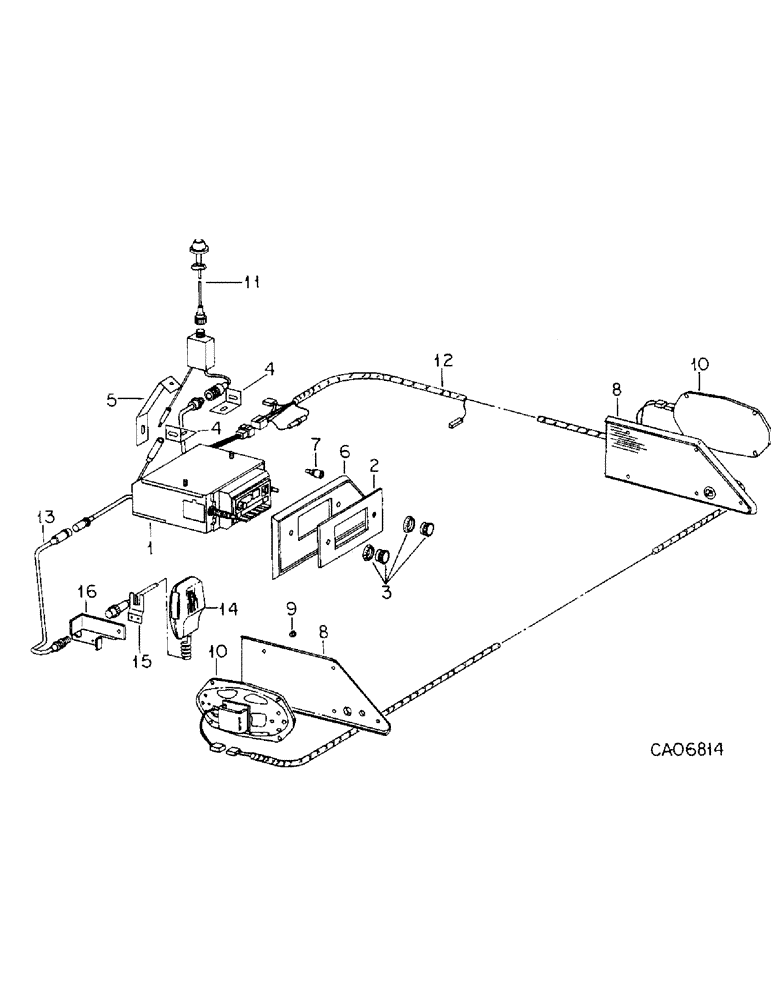

Схема запчастей Case IH 3788 - (08-19) - ELECTRICAL, AM-FM-CB RADIO (06) - ELECTRICAL
9
7
16
4
5
4
8
1
10
6
11
8
10
2
3
13
14
12
15

Артикул

Название

Примечание

Количество

142947C93

RADIO

PARTS ACCESSORY, AM-FM-CB mpx radio

1шт.

1

143228C1

RADIO, AM-FM-CB mpx, Replaces radio, 118438C1 by also ordering microphone, 1252436C91

1шт.

142920C1

WASHER

shaft

2шт.

142973C1

NUT

M9 x .75 large shaft

2шт.

142974C1

NUT

M9 x .75 small shaft

2шт.

142945C1

STUD, adapter

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

117993C1

PACKAGE

KIT, radio control knobs

1шт.

4

117818C1

ANGLE

radio mtg

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

118120C1

SUPPORT

BRACKET, radio mounting

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW, 1/4-14 x 5/8 phc h/hd tap

1шт.

6

118376C1

PANEL

radio trim, Used only w/radio, 118438C1

1шт.

6

1252433C1

PANEL, radio trim, Used only w/radio, 143228C1

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8 x 1-3/4 polyseal tap

5шт.

7

117995C1

PACKAGE

KIT, trim

3шт.

8

111402C2

PANEL

speaker trim LH

1шт.

8

111403C1

PANEL

speaker trim RH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8 x 1-3/4 polyseal tap, 5 per panel

1шт.

9

117730C1

PLUG

plastic

1шт.

10

70727C3

SPEAKER

4 x 8 ohm

2шт.

10

142956C1

SPEAKER

4 x 8 ohm

2шт.

132718C1

FASTENER

tgl type plastic

8шт.

11

118439C91

ANTENNA

ASSY, combination AM-FM-CB, Consists of

1шт.

142978C1

UNION

COUPLER ASSY

1шт.

142979C1

BASE

ASSY

1шт.

142982C1

VALVE SPRING

SPRING

1шт.

142980C1

SCREW,M6 x 0.86"

1шт.

142981C1

NUT

1шт.

143113C1

SCREW,Hex Skt, M5 x 0.156" L

1шт.

142983C1

BAR

MAST

1шт.

142969C1

NUT

1шт.

142984C1

SCREW,M3 x 3.70"

also purchase locally 2 inch of 1-3/4inch duct or plastic tape for use w/antenna assy 118439C91

1шт.

12

118440C2

HARNESS

ASSY, radio and speaker, Replaces 111431C2

1шт.

12

143177C1

HARNESS

ASSY, radio & speaker, For use w/speaker 142956C1

1шт.

126049

FUSE,5 Amp, Type 1AG

aga 5 amp

1шт.

13

142946C1

CABLE PULLING GRIP

CABLE ASSY, CB microphone extension

1шт.

13

142995C1

CABLE

ASSY, CB microphone extension, Use w/parts accessory 142947C93

1шт.

14

1252436C91

TRANSMITTER

MICROPHONE ASSY, CB radio, Use w/parts accessory 142947C93

1шт.

15

118598C1

CLIP

microphone mtg

1шт.

142937C1

SCREW,Phil Pan Hd, #8 - 18 x 1/2"

no. 8-18 x 1/2 cr tap

2шт.

16

118595C1

BRACKET

CB microphone mtg

1шт.

444272

SCREW, #8 x 1/4 znp p/hdcr l/w mach

2шт.

159592

SCREW,Cross Pan Hd, #8 - 32 x 1/2"

no. 8 x 1/2 znp p/hdcr mach

2шт.

445106

SPARE PART

NUT, 8-32 phc style I

2шт.

Выбрано товаров: 50
