Запчасти Case IH 3788 (08-14) - ELECTRICAL, ALTERNATOR-GENERATOR, NIEHOFF, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL

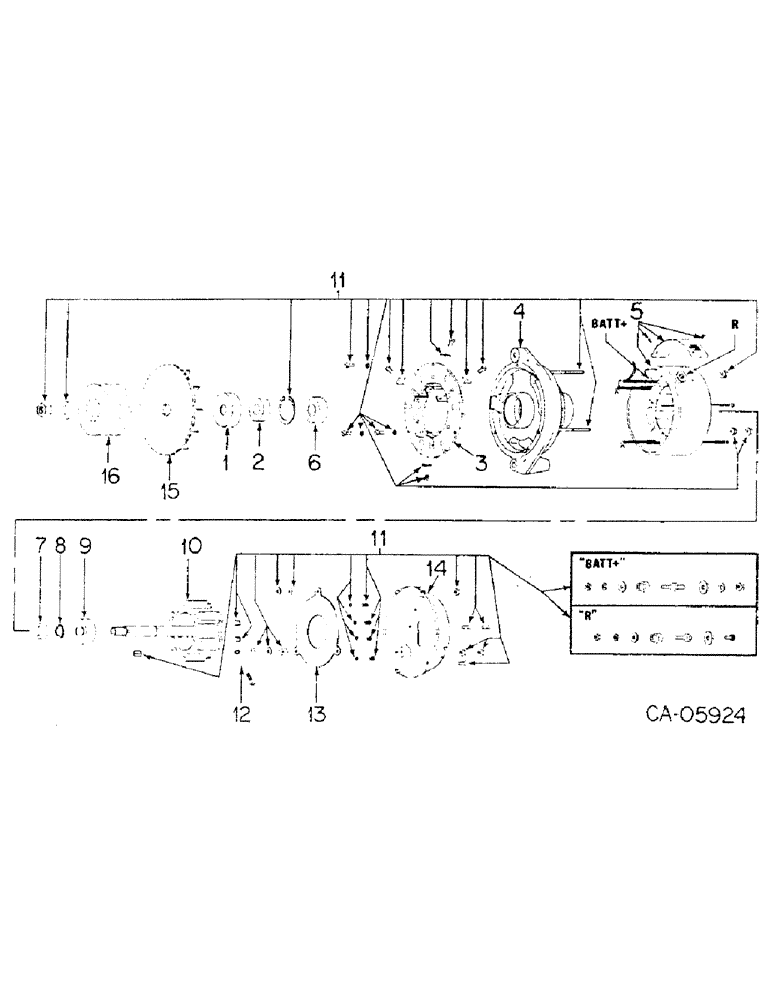

Схема запчастей Case IH 3788 - (08-14) - ELECTRICAL, ALTERNATOR-GENERATOR, NIEHOFF, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL
8
2
14
13
11
9
12
16
1
4
5
11
3
15
10
7
6

Артикул

Название

Примечание

Количество

131328C91

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 100 ampere, non metric, Order alternator-generator, 146472C91 and attaching hardware

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR ASSY, 100 ampere, metric

1шт.

1

130991C1

CUP WASHER

WASHER, front spring and bearing cover

1шт.

2

130992C1

SPACER

SPACER, front

1шт.

3

77791C1

AMPLIFIER

AMPLIFIER ASSY, rectifier and heat sink

1шт.

4

77792C2

FRAME

FRAME ASSY, field winding and end

1шт.

5

77793C2

SHELL

SHELL AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

BEARING, front

1шт.

7

130998C1

CUP WASHER

WASHER, retainer cup

1шт.

8

130993C1

RING

RING, retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, rear

1шт.

10

130999C1

ROTOR

ROTOR ASSY

1шт.

11

77795C2

PACKAGE

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

77794C1

REGULATOR

REGULATOR ASSY, voltage

1шт.

14

131006C1

COVER

COVER, voltage regulator

1шт.

15

221425R1

FAN

FAN, alternator-generator, Not included as part of alternator-generator assy

1шт.

16

131042C1

PULLEY

PULLEY, alternator-generator double, Not included as part of alternator-generator assy

1шт.

Выбрано товаров: 23
