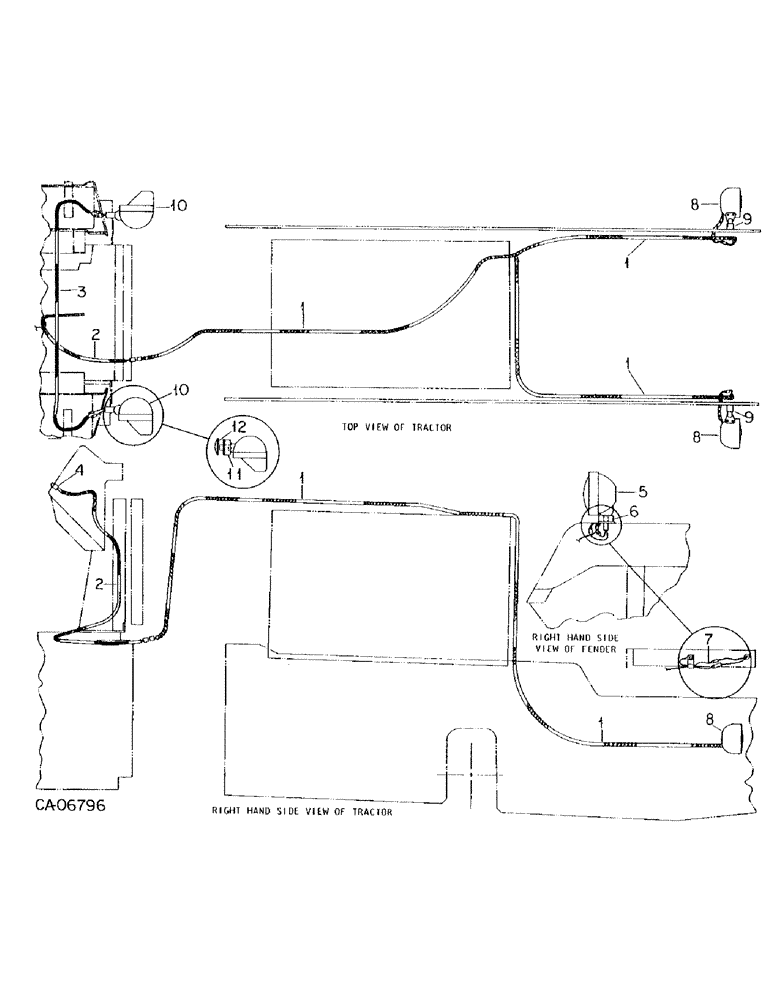

Запчасти Case IH 3788 (08-12) - ELECTRICAL, AUXILIARY LIGHTING (06) - ELECTRICAL

ATTACHMENT, auxiliary lighting, Consists of ref nos 1, 3, 4, 8, 9, 10, 11 & 12

1шт.

1

146385C2

HARNESS

aux lighting front frame

1шт.

2

146386C2

HARNESS

aux lighting rear frame

1шт.

455844

FUSE,25 Amp, Type 3AG

type AGC 1-1/4 long, furnished as part of 146386C2

2шт.

3

120158C1

HARNESS

center side lighting

1шт.

366460R1

CABLE CLIP

CLIP, centerside lighting harness

1шт.

4

195605C1

SWITCH

ASSY, rocker aux lighting

1шт.

5

131368C92

HEADLIGHT

LIGHT ASSY, auxiliary rear flood, only serviceable items are

2шт.

131203C1

LAMP

1шт.

676078R1

RETAINER

1шт.

6

370307R1

SEAT

rear flood mtg ball

2шт.

1255773C1

GASKET

light seat

2шт.

120371

NUT,1/2"-20, G5

2шт.

7

405209R1

CABLE

ASSY, aux rear flood light ground

1шт.

8

131367C94

LIGHT, WARNING

LIGHT ASSY, front side lighting, only serviceable items are

2шт.

131348C1

LAMP

1шт.

65003C2

SHIELD

1шт.

Ref. 8 - 65003C2, plastic shield, is not part of light assembly 131367C94. Must be purchased separately.

1шт.

9

141791C1

BRACKET

work light

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

131563

RIGID TUBE,Crown, 3/8"-24

3/8 pln hi-crown stl

4шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

10

131420C91

INTERIOR LIGHT

LIGHT ASSY, rear side lighting, only serviceable items are lamp 131348C1 and retainer 676078R1

2шт.

120253C1

CONDUIT

convoluted, 8-1/4 inches long

2шт.

11

370307R1

SEAT

lamp mtg ball, 1 used w/rear working lights, 1 used w/auxiliary lighting attach

1шт.

12

388947R1

RETAINER

lamp

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

11шт.

362126R1

CLIP

cable harness

2шт.

670043C1

CLIP

cable harness, Replaces 362120R1

2шт.

362667R1

CLIP

aux rear light cable

3шт.

76336C91

PARTS ACCESSORY, auxiliary lighting, For tractors equipped w/air conditioning, Consists of

1шт.

146385C2

HARNESS

1шт.

131328C91

ALTERNATOR

100 amp

1шт.

131042C1

PULLEY

alternator

1шт.

221425R1

FAN

alternator

1шт.

146386C2

HARNESS

ASSY

1шт.

455844

FUSE,25 Amp, Type 3AG

2шт.

120158C1

HARNESS

ASSY

1шт.

195605C1

SWITCH

1шт.

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

1шт.

370307R1

SEAT

ball

2шт.

120371

NUT,1/2"-20, G5

2шт.

131367C94

LIGHT, WARNING

LIGHT ASSY

2шт.

141791C1

BRACKET

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

131406

NUT

4шт.

95-11034

WASHER,1/4"

WAHSER

2шт.

131420C91

INTERIOR LIGHT

LIGHT ASSY

2шт.

388947R1

RETAINER

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie

10шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP

4шт.
