Запчасти Case IH 3688HC (13-08) - SUPERSTRUCTURE, SOUND INSULATION (05) - SUPERSTRUCTURE

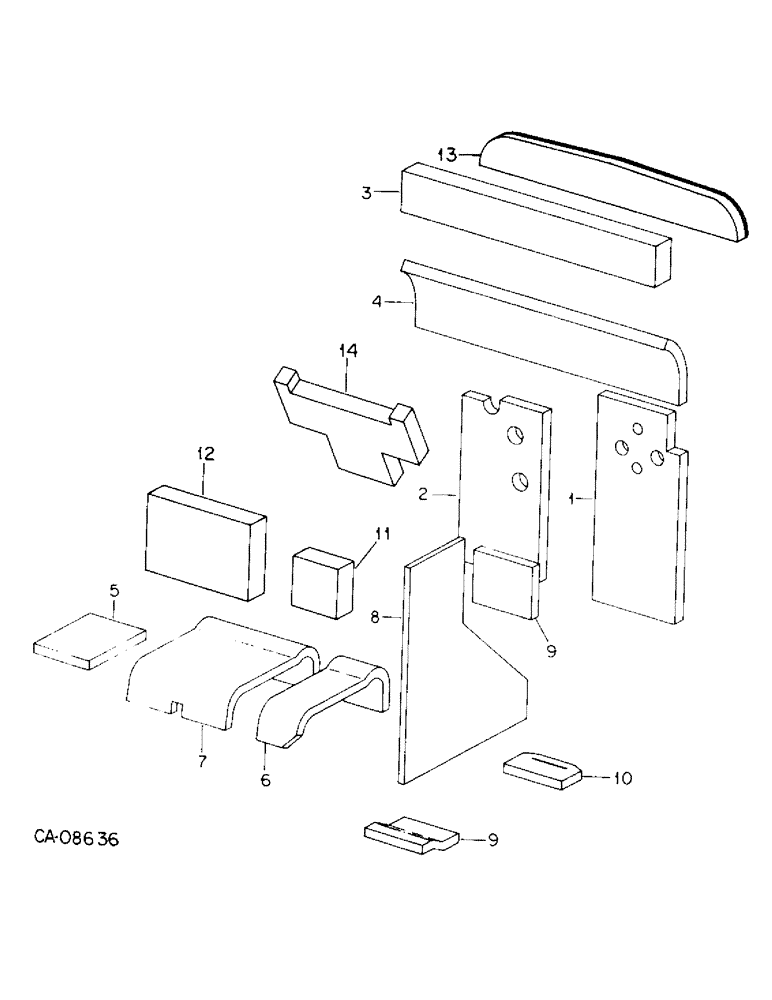

Схема запчастей Case IH 3688HC - (13-08) - SUPERSTRUCTURE, SOUND INSULATION (05) - SUPERSTRUCTURE
9
4
9
11
2
7
3
14
6
12
5
8
13
10

Артикул

Название

Примечание

Количество

1

120320C2

PAD

RH firewall sound insulation

1шт.

2

120321C3

PAD

LH firewall sound insulation

1шт.

3

1251803C3

PAD

upper instrument housing insulation

1шт.

For tractors w/cabs only.

1шт.

4

120356C1

PAD

upper instrument housing insulation, large

1шт.

5

120329C1

PAD

LH console bottom rear insulation

1шт.

6

144043C1

PAD

seat support outer insulation

1шт.

7

144044C2

PAD

seat support center insulation, w/vertical acting seat

1шт.

7

1270528C1

PAD

seat support center insulation, w/hydraulic seat

1шт.

8

1259544C1

PAD

RH console side insulation

1шт.

9

PAD, RH console front and bottom rear insulation, Furnish (1) piece of 120356C1 and, Serial Range: cut-size

2шт.

10

PAD, RH console bottom front insulation, Furnish (1) piece of 120356C1 and, Serial Range: cut-size

1шт.

11

1276082C1

PAD, inst hsg small sound barrier, 100 mm sq x 50.8

4шт.

12

1276083C1

STRIP

PAD, inst hsg large sound barrier, 229 mm x 152 mm x 50.8

1шт.

13

1276081C1

STRIP

PAD, inst hsg to glass sound barrier

1шт.

14

1251706C1

PAD

lower inst hsg insulation

1шт.

For tractors w/cabs only.

1шт.

Выбрано товаров: 17
