Запчасти Case IH 3688HC (13-06) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE

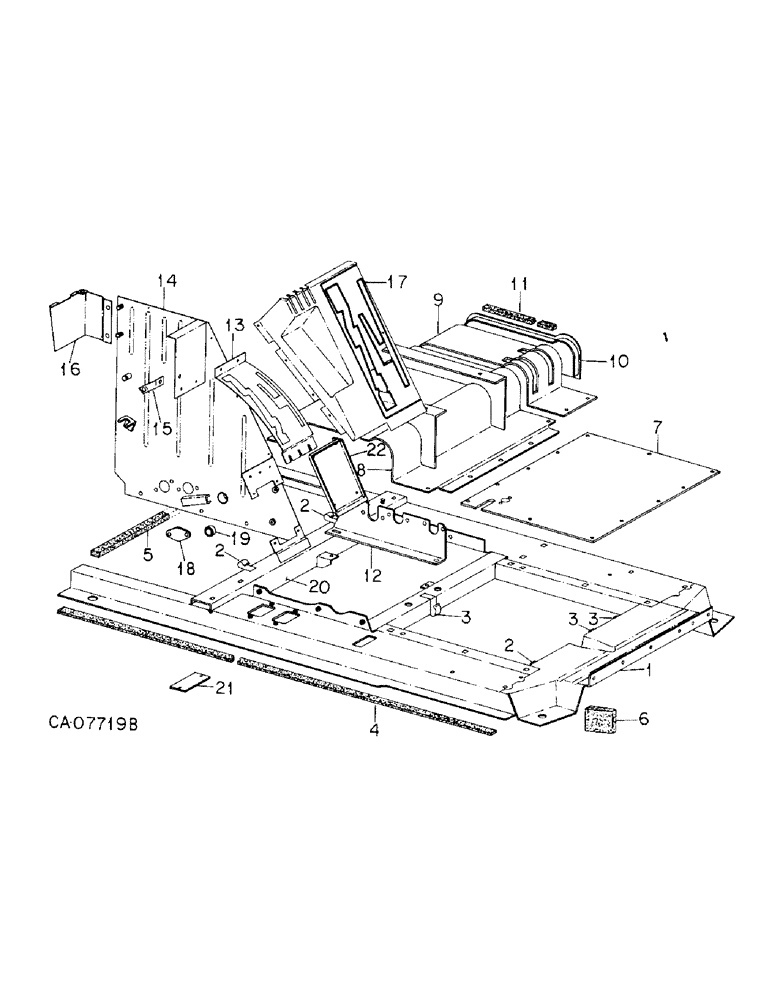

Схема запчастей Case IH 3688HC - (13-06) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE
3
1
10
16
2
20
5
7
15
2
13
18
3
4
14
3
17
22
11
8
2
3
21
12
19
9

Артикул

Название

Примечание

Количество

1

130318C8

FRAME

ASSY, platform sub

1шт.

30673R1

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

BOLT, M12 x 35 crg clas 8.8

2шт.

30169R1

NUT,M12 x 1.75, Cl 10

M12 phc class 10

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

130287C1

NUT

M8 x 1.25 cage

9шт.

143902C1

NUT

M10 x 1.5 cage

7шт.

2

384557R1

CLIP

floodlight and cab wiring harness

4шт.

3

366460R1

CABLE CLIP

CLIP, cable harness

3шт.

4

STRIP, sub frame side, seal, tractor equipped w/cab, Furnish 1067 mm of foam gasket from 4 ft. length marked 1264567C1

2шт.

5

109257C1

SEALING STRIP

sub frame rear, seal

1шт.

6

104753C1

SEAL

sub frame front

2шт.

7

104165C2

PLATFORM

sub-frame

1шт.

30301R1

SCREW,Cross Pan Hd, M8 x 20

M8 x 20 mm znp p/hdcr mach

1шт.

8

143999C3

COVER

ASSY, seat support

1шт.

130287C1

NUT

M8 x 1.25 cage

3шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 class 8.8

5шт.

9

1251738C3

COVER

park lock control

1шт.

30601R1

SCREW,Cross Pan Hd, M10 x 20

M10 x 20 phc class 4.8 p/hdcr

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

10

1252954C2

PLATE

ASSY, LH control

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

2шт.

10

1252994C92

PLATE

ASSY, LH control, tractors w/all wheel drive with one-piece drive shaft only

1шт.

379748R1

BUSHING

hub

1шт.

11

STRIP, seat support dust, Furnish 660 mm of foam gasket from a 4 ft. length marked 73320C1

2шт.

12

1252891C1

SUPPORT

shift linkage

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

13

1252982C2

SECTOR

shift console RH

1шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 pln class 8.8

5шт.

14

1252957C6

PANEL

CONSOLE ASSY, RH

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

3шт.

15

1252983C1

BRACE

console

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

1шт.

16

1251647C3

BRACKET

RH console

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

17

1253017C5

COVER

RH console, tractors w/o torque amplifier

1шт.

17

1252984C5

COVER

RH console, tractors w/torque amplifier

1шт.

1264518C1

SCREW,#10 - 16 x 1/2"

10-16 x 1/2 console mtg

7шт.

18

NOT USED THIS APPLICATION

1шт.

19

487139R1

BUSHING,28.65mm ID x 31.77mm OD x 12.7mm L

part of RH console assy

2шт.

20

1253116C3

ANGLE

ASSY, sub frame rear

1шт.

21

143565C1

COVER

draft control opening, tractors w/o draft control

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3 mm phc

2шт.

22

1252877C2

COVER

flow control 3088, 3288 and 3688HC tractors

1шт.

Выбрано товаров: 45
