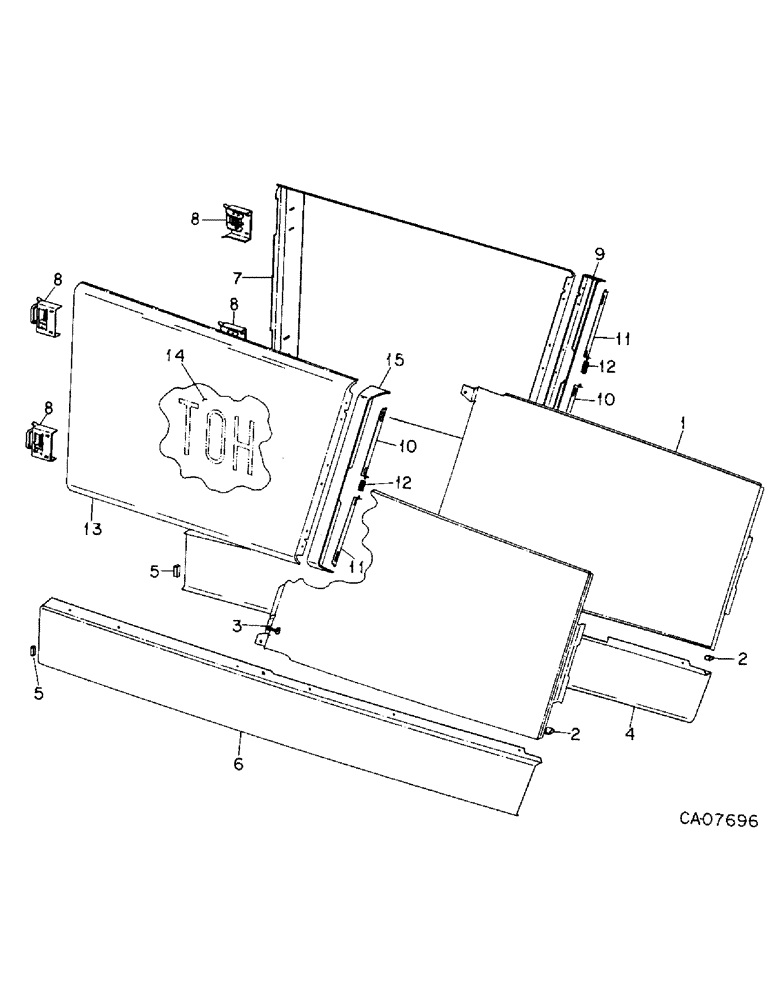

Запчасти Case IH 3688HC (13-01) - SUPERSTRUCTURE, SIDE PANEL AND RELATED PARTS (05) - SUPERSTRUCTURE

1

149053C2

PANEL

ASSY, side fornt center LH

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

2шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

2шт.

1270584C1

PREV TORQUE BOLT,Hex, M8 x 16mm

SCREW, M8 x 16 hex hd w/washer, polyseal

1шт.

2

1251885C1

SEAL

front side panel

2шт.

3

149054C2

PANEL

ASSY, side front center RH

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

2шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

2шт.

1270584C1

PREV TORQUE BOLT,Hex, M8 x 16mm

SCREW, M8 x 16 hex hd w/washer, polyseal

1шт.

4

130190C1

PANEL

lower LH side

1шт.

130286C1

NUT

M8 x 1.25 cage

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc clas 8.8

3шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

3шт.

5

1253139C1

PAD

lower side panel bumper

2шт.

6

130191C1

PANEL

lower RH side

1шт.

130286C1

NUT

M8-1.25 cage

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc clas 8.8

3шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

3шт.

7

130594C2

PANEL ASSY.

PANEL ASSY, side rear center LH

1шт.

8

1251816C1

HINGE

ASSY, latch

4шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

8шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

8шт.

1270485C1

NUT,M6 x 1, Flg, Cl 8

M6 flange thread clearing

8шт.

9

148966C1

MOLDING

side rear center LH

1шт.

10

1251707C2

SLIDE

ASSY, side panel latch LH

2шт.

11

1251708C2

SLIDE

ASSY, side panel latch RH

2шт.

12

149076C1

SPRING

front latch

2шт.

148526C2

BOLT,Shldr, Wshr Hd, M6 x 1 x 14mm, Cl 8.8

washer hd shoulder

8шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

8шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

16шт.

931479R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 phc class 8.8

4шт.

30281R1

NUT,M6, Cl 10

M6 CLASS 10

2шт.

13

130595C2

PANEL

ASSY, side rear center RH

1шт.

130285C1

NUT

M8 x 1.25 cage

4шт.

14

1251713C1

SHIELD

right side heat

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

15

148967C1

MOLDING

side rear center RH

1шт.
