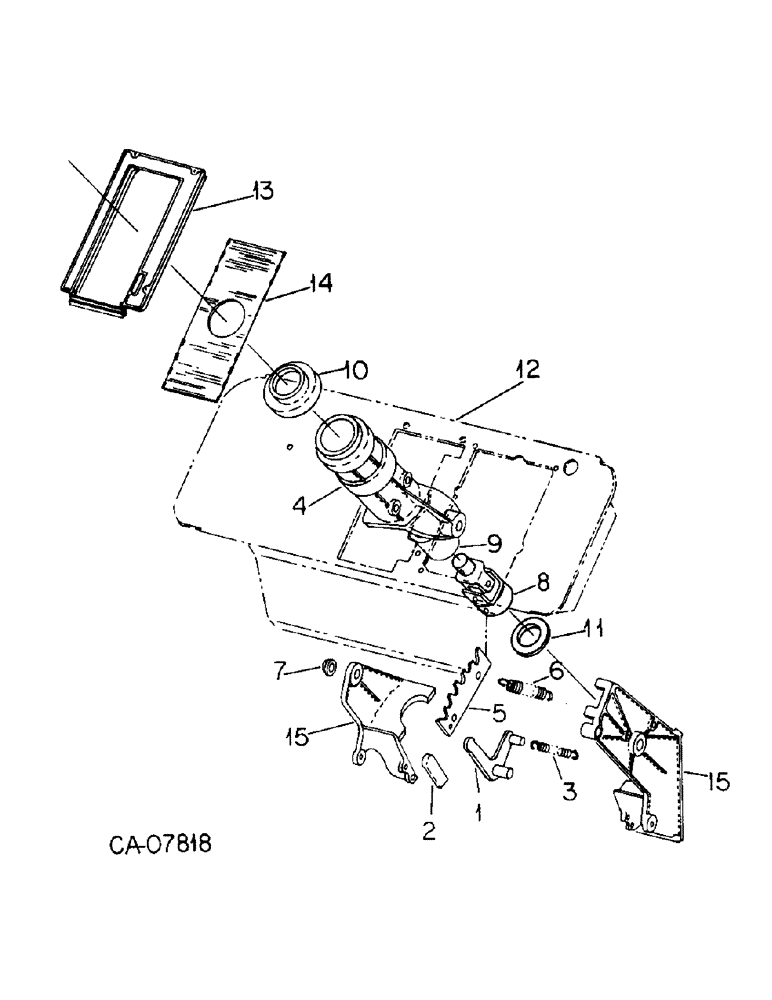

Запчасти Case IH 3688HC (05-02) - STEERING, TILT-TELESCOPING STEERING (04) - STEERING

1

148904C1

LEVER

ASSY, tilt steering lock

1шт.

2

1259793C1

GRIP

tilt steering lock, knob

1шт.

3

538321R1

SPRING

lever detent

1шт.

4

148422C3

HOUSING

tilt steering support

1шт.

5

148915C1

PLATE

tilt steering detent

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

6

148480C1

SPRING

tilt wheel support

1шт.

7

148920C1

BUSHING

tilt wheel support

2шт.

931492R1

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

M12 x 50 pln class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

8

148431C1

JOINT

steering universal

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

9

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

steering tube inner

2шт.

10

148921C1

CAP

steering column

1шт.

11

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft

1шт.

12

PANEL ASSY, instrument, See group 11

1шт.

13

148409C1

SUPPORT

TRACK, tilt wheel support

1шт.

14

148411C2

COVER

tilt wheel

1шт.

103957C1

NUT

speed type J

3шт.

26304R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc p/hdcr tap

3шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

934309R1

LOCK WASHER,M8

1шт.

15

148426C91

SUPPORT

ASSY, tilt steering

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30910R1

NUT,M8, Cl 10

M8 class 10

2шт.

1270708C91

PARTS ACCESSORY, tilt telescoping steering, For tractors w/mechanical tach-speedometer, Consists of Ref. 1 - 15 plus

1шт.

148482C1

HOUSING

lower instrument

1шт.

30523R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

M10 x 16 mm class 8.8

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

3шт.

PRODUCT GRAPHIC, lower instr panel (NSS)

1шт.

PRODUCT GRAPHIC, upper instr panel LH (NSS)

1шт.

PRODUCT GRAPHIC, upper instr panel RH (NSS)

1шт.

1252740C1

STOP

governor PTO overspeed

1шт.

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

107330C1

CABLE

ASSY, aux light switch ext.

1шт.

INSTRUCTIONS, installing (NSS)

1шт.

1270709C91

KIT

PARTS ACCESSORY, tilt-telescoping steering, For tractors w/ digital data 1A, Consists of Ref. 1 - 15 plus

1шт.

NSS DECALS LISTED UNDER 1270709C91 ARE 1259890C1, 1259891C1 and 1259892C1

1шт.

148482C1

HOUSING

lower instrument

1шт.

30523R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

M10 x 16 mm class 8.8

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

3шт.

PRODUCT GRAPHIC, lower instr panel (NSS)

1шт.

PRODUCT GRAPHIC, upper instr panel LH (NSS)

1шт.

PRODUCT GRAPHIC, upper instr panel RH (NSS)

1шт.

1252740C1

STOP

governor PTO overspeed

1шт.

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

107330C1

CABLE

ASSY, aux light switch ext.

1шт.

INSTRUCTIONS, installing (NSS)

1шт.
