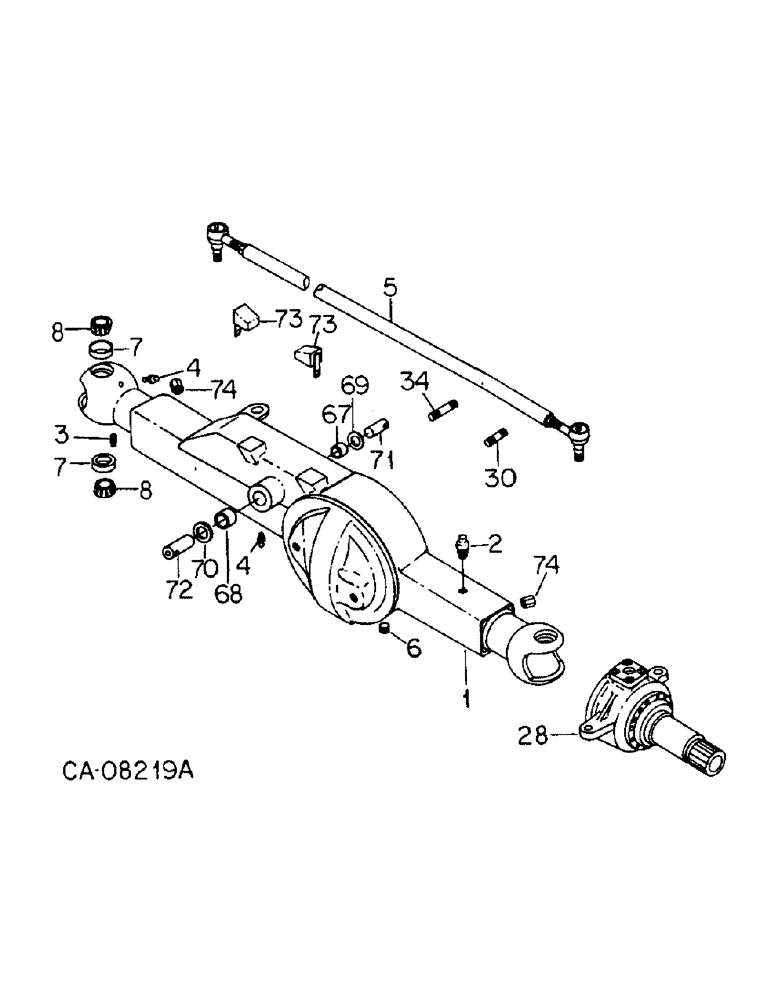

Запчасти Case IH 3688HC (07-44[02]) - DRIVE TRAIN, PLANETARY STEERING AXLE, TRACTORS WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT (04) - Drive Train

1

1264701C1

HOUSING

ASSY

1шт.

2

78787C1

BREATHER

ASSY, air-vent

1шт.

3

444699

PLUG,Hex Soc, 3/8"-18

3/8-18 pln hex/skt auto pipe

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

1264700C1

ROD

ASSY, tie

1шт.

6

445751

1/2-14 pln sq/skt auto pipe

1шт.

7

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

4шт.

8

503098C91

BEARING ASSY,35.72mm ID x 25.4mm W

4шт.

28

78805C2

KNUCKLE JOINT

KNUCKLE, LH steering, knuckle only

1шт.

See Figure 07-44[01] for RH steering knuckle

1шт.

30

78839C1

STUD

dowel

6шт.

34

78840C1

STUD

dowel

4шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT, 7/16-NF phc p/t lock type 8

10шт.

67

1264696C2

BUSHING

rear pivot pin

1шт.

68

1264695C2

BUSHING

front pivot pin

1шт.

69

1251736C1

WASHER

pivot tube rear

1шт.

70

1251735C1

WASHER

pivot tube front

1шт.

71

1264698C1

PIN

rear axle pivot

1шт.

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN, 3/8 x 4.125 pln hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

72

1280706C1

PIN

front axle pivot, tractors w/front bolster 1280705C1

1шт.

1280683C1

AXLE PIN,12.7mm OD x 178mm L

PIN, retaining

1шт.

934792R1

COTTER PIN,M3.2 x 20

PIN, 3.2 x 20 mm pln cot.

1шт.

72

1264697C1

PIN

front axle pivot, tractors w/front bolster, 130115C2

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 x 5.984 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

73

1270894C1

STOP

6 deg oscillation

1шт.

74

1270895C1

STOP

28 deg steering

1шт.
