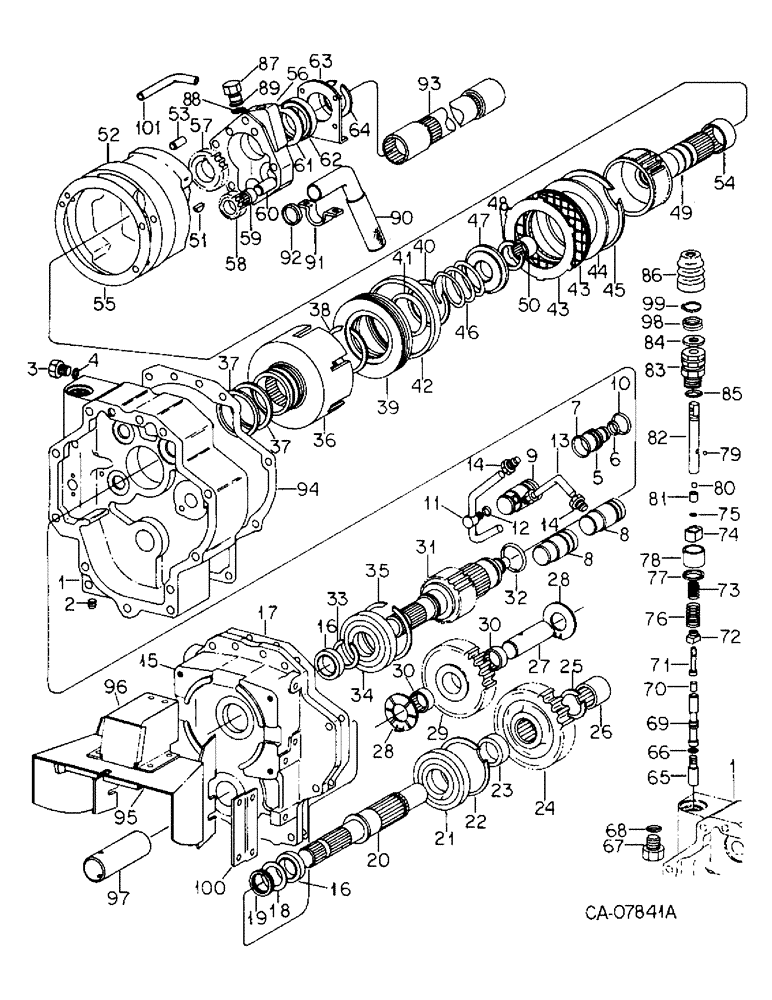

Запчасти Case IH 3688HC (07-25) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF, DUAL SPEED (04) - Drive Train

1

69065C93

HOUSING

ASSY, IPTO valve, Consists of Ref. 2 and 69 - 86

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

2

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 pln sq/skt auto pipe

1шт.

3

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/16 C-Z str thd o-ring boss gauge hole

2шт.

4

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Gauge hole plug

2шт.

5

67340C1

PISTON

ASSY, anti-creep brake

3шт.

6

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 class 5, brake piston rod

3шт.

7

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 class 5, brake piston

3шт.

8

68074C1

CYLINDER

anti-creep brake

2шт.

9

68073C1

CYLINDER

anti-creep brake

1шт.

10

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

1-1/2 x 1-5/8 class 5, brake cyl

3шт.

11

68075C1

TUBE

ASSY, brake supply

1шт.

12

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 class 5, brake supply connector

1шт.

13

68077C1

TUBE

brake supply

1шт.

14

222-502

TUBE NUT,7/16"-24

NUT, 1/4 tube, brake supply tube

4шт.

15

64785C92

COVER

ASSY, w/product graphic, IPTO housing

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1.250 pln hdn dowel

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

187201

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 x 4-3/4 pln type 5

8шт.

70129R1

PLUG,Cup, 2"

2.0 cup

1шт.

64553C2

PRODUCT GRAPHIC

warning IPTO

1шт.

16

381480R91

OIL SEAL

output shaft oil

2шт.

17

381481R1

GASKET

independent power take off housing cover

1шт.

18

393211R1

SHIELD

independent PTO shaft seal, Use w/540 RPM shaft oil seal

1шт.

19

398739R1

RING

external retaining housing cap

1шт.

20

393111R2

SHAFT

independent power take-off 540 RPM output

1шт.

21

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, independent power take-off 540 RPM output shaft rear

1шт.

22

357201R1

RING

independent power take-off 540 RPM shaft rear brg retaining

1шт.

23

381505R1

SPACER,44.7mm ID x 57.15mm OD x 16.76mm L

independent power take-off 540 RPM output shaft

1шт.

24

381506R1

GEAR

independent power take-off driven

1шт.

25

359894R1

RING, SNAP

RING, independent power take-off driven gear retaining snap

1шт.

26

576539R91

NEEDLE BEARING

ASSY, 540 RPM output shaft front needle

1шт.

27

381507R1

SHAFT,31.74mm OD x 98.81mm L

independent power take-off idler

1шт.

28

381508R1

THRUST WASHER,32.26mm ID x 57.15mm OD x 2.39mm Thk

independent power take-off idler gear thrust

2шт.

29

381509R1

GEAR

independent power take-off idler

1шт.

30

287057R91

BEARING, NEEDLE

BEARING, independent power take-off idler gear

2шт.

31

120985C1

SHAFT

independent power take-off 1000 RPM output

1шт.

32

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2-1/8 x 2-5/16 x 3/32, independent power take-off 1000 RPM output shaft

1шт.

33

359894R1

RING, SNAP

RING, 1000 RPM shaft locating snap

1шт.

34

381483R91

ROLLER BEARING,1.7717" ID x 3.337" OD x 0.9843"

1000 RPM output shaft rear

1шт.

35

357201R1

RING

1000 RPM shaft rear bearing retaining snap

1шт.

36

381484R2

CUP

clutch

1шт.

37

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup seal

2шт.

38

68625C1

RING

clutch cup retaining snap

1шт.

39

68080C2

PISTON

clutch

1шт.

40

258400C1

SNAP RING,#187, Ext

RING, 1.735 ext ret

1шт.

41

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1-7/8 x 2-1/4 class 5, clutch piston

1шт.

42

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL, clutch piston oil

1шт.

43

68803C92

KIT

PACKAGE, IPTO clutch plate and disc, Consists of

1шт.

DISC (NSS)

9шт.

PLATE (NSS)

7шт.

44

381491R1

RETAINER

clutch driven disc

1шт.

45

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING, clutch driven disc retainer snap

1шт.

46

381493R1

SPRING

clutch release

1шт.

47

381494R1

RETAINER

clutch release spring

1шт.

48

370504R1

RING

clutch release spring retainer snap

1шт.

49

68081C2

SHAFT

drive

1шт.

50

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, 1000 RPM drive shaft front

1шт.

51

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive shaft #5, 1/8" x 5/8", HT

1шт.

52

68082C2

HOUSING

CARRIER ASY, IPTO clutch w/cast lube tube

1шт.

52

148474C92

CARRIER

ASSY, IPTO clutch w/loose lube tube, Includes Ref. 53 and 101

1шт.

27907R1

CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel

SCREW, 3/8 x 2.500 pln ast 12pt flg

4шт.

53

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x .750 pln hdn dowel

2шт.

54

359950R91

NEEDLE BEARING

BEARING, drive shaft rear

1шт.

55

529565R1

GASKET

IPTO clutch carrier

1шт.

56

67330C1

HOUSING

pump, Use w/carrier assy, 68082C2

1шт.

56

148475C1

HOUSING

pump, Use w/carrier assy, 148474C92

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

57

381499R1

PINION

GEAR, pump drive

1шт.

58

381500R1

PINION

GEAR, pump idler

1шт.

59

381501R91

NEEDLE BEARING

pump idler gear needle

1шт.

60

381502R1

SHAFT

pump idler gear

1шт.

61

68084C1

BAFFLE

drive shaft front

1шт.

62

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

BEARING, drive shaft frt

1шт.

63

381503R1

RETAINER

drive shaft front bearing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

64

555570R1

SNAP RING

RING, drive shaft frt brg snap

2шт.

65

68085C1

PLUG

IPTO valve

1шт.

66

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 class 5

1шт.

67

9410360

PLUG

5/8 C-Z str thd o-ring boss

1шт.

68

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

69

70808C1

SPOOL

IPTO valve, Code A

1шт.

69

70809C1

SPOOL

IPTO valve, Code B

1шт.

69

70810C1

SPOOL

IPTO valve, Code C

1шт.

70

26622R1

DOWEL,5/16" x 3/8"

PIN, 5/16 x .375 pln hdn-dowel

1шт.

71

70331C1

ROD

ball actuating

1шт.

72

70807C1

RETAINER

ball actuating rod

1шт.

73

68089C1

SPRING

IPTO regulator

1шт.

74

68090C1

RETAINER

ball act. rod stem end

1шт.

75

268552R1

SNAP RING,#18, .145" Dia, E-Type

Ring, Retaining, #18, .145" Dia, E-Type

1шт.

76

68092C1

SPRING

engagement

1шт.

77

68093C1

SPRING WASHER

WASHR, engagement spring

1шт.

78

68094C1

SPACER

engagement

1шт.

79

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

3шт.

80

17012R1

BALL,3/8" Dia

1шт.

81

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x .625 pln hdn dowel, ball actuating

1шт.

82

68095C1

STEM

control valve

1шт.

83

68096C1

BODY

ASSY, IPTO detent

1шт.

84

68097C1

SEAL

stem

1шт.

85

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

86

68110C2

BOOT

IPTO valve dust

1шт.

87

69040C92

VALVE

ASSY, regulator, 210 PSI, components are

1шт.

69042C2

STRAINER ELEMENT

STRAINER

1шт.

BODY (NSS)

1шт.

POPPET (NSS)

1шт.

SPRING (NSS)

1шт.

SCREW, adj (NSS)

1шт.

PIN (NSS)

1шт.

88

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

1шт.

89

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

90

395120R1

TUBE

ASSEMBLY, suction

1шт.

91

381525R1

SUPPORT TUBE,2.8" Length

SUPPORT, suction tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

92

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

suction tube

1шт.

93

120988C1

SHAFT

ASSY, IPTO ext.

1шт.

94

381467R1

GASKET

IPTO housing and rear frame

1шт.

95

1264503C1

SHIELD

ASSY, IPTO

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

96

1264520C1

COVER

ASSY, IPTO shield

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

97

393116R1

TUBE

IPTO shaft protection

1шт.

98

1252025C1

SPRING

actuator return

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

350515R1

WASHER

.656 x 1.000 x .054 pln

1шт.

99

267805R1

RING

.579 ext ret.

1шт.

100

393115R1

EXTENSION ASSY, IPTO safety shield

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

101

148451C2

TUBE,0.035" OD, 115, 48 mm Length

IPTO lube, Use w/carrier assy, 148474C92

1шт.

222-503

TUBE NUT,1/2"-20

NUT, 5/16 tube

2шт.

77720C92

STRIPPER PACKAGE

PACKAGE, seal and gasket, Consists of

1шт.

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

SEAL

2шт.

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL

1шт.

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

1шт.

392382R1

O-RING,0.551" ID x 0.07" Width

1шт.

529565R1

GASKET

1шт.

574069R1

O-RING,0.750" ID x .062"

3шт.

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

3шт.

68097C1

SEAL

1шт.

68110C2

BOOT

1шт.

199474H1

OIL SEAL

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

355967R1

O-RING,0.364" ID x 0.003" Width

1шт.

356005R1

O-RING,1.109" ID x 0.139" Width

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

381467R1

GASKET

1шт.

381481R1

GASKET

1шт.

381480R91

OIL SEAL

2шт.
