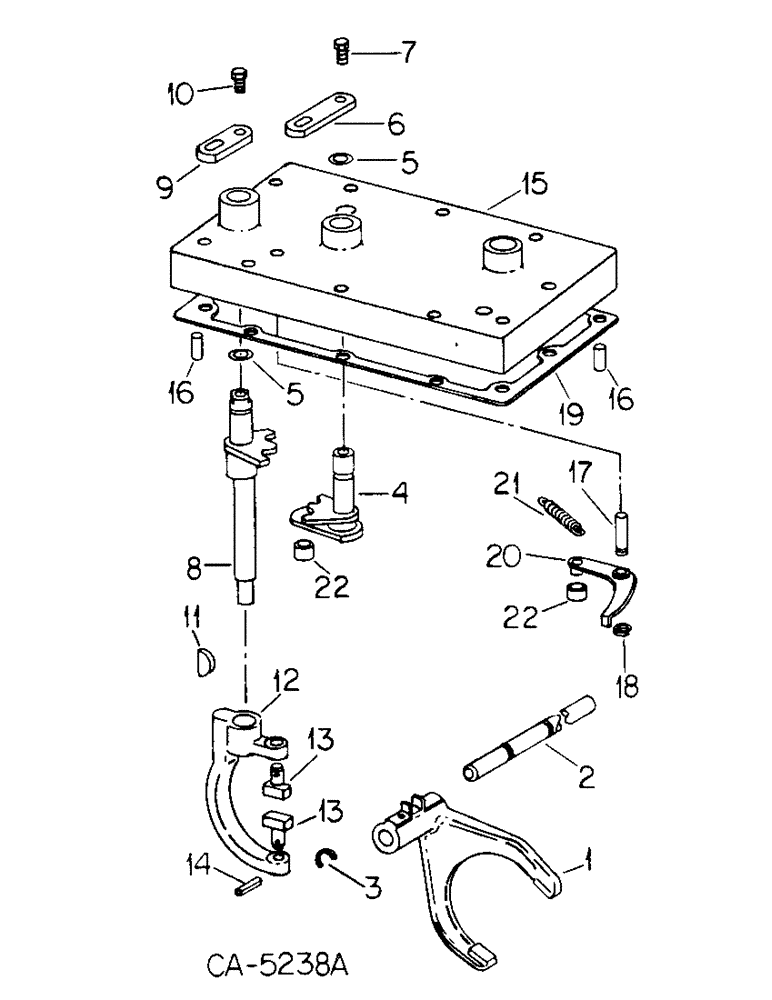

Запчасти Case IH 3688HC (07-13) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
398279R2
FORK
hi-lo shift
1шт.
2
148503C1
PIN,19mm OD x 201.4mm L
hi-lo shift fork, Replaces104325C2 by also ordering two rings 148501C1
1шт.
3
148501C1
RING, SNAP
RING, retaining, Replaces 148714C1 by also ordering pin 148503C1
2шт.
4
71526C1
SHAFT
ASSY, hi-lo shift
1шт.
615168R1
WASHER
.781 x 1.500 x .105 pln
1шт.
5
128359
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
5/8 x 3/4 class 5
2шт.
6
120261C1
BAR
hi-lo shift, lever
1шт.
7
71532C1
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hi-lo shift arm
1шт.
25552R1
WASHER,.344" x 1" x .098", HDN
.344 x 1.000 x .098 phc hdn
1шт.
8
120262C1
SHAFT
ASSY, reverse shift upper
1шт.
615168R1
WASHER
.781 x 1.500 x .105 pln
1шт.
9
120263C1
BAR
reverse shift, lever
1шт.
10
71532C1
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
reverse shift arm
1шт.
25552R1
WASHER,.344" x 1" x .098", HDN
.344 x 1.000 x .098 phc hdn
1шт.
11
431787
WOODRUFF KEY,#61, 3/16" x 5/8", HT
KEY, 3/16 x 5/8 SAE 61 Woodruff
1шт.
12
380308R2
FORK
reverse shift
1шт.
13
380309R1
PAD
reverse shift fork
2шт.
14
19371R1
PIN,1/8" x 3/4", Coiled
2шт.
15
398298R41
COVER
ASSY, rear frame front, Consists of
1шт.
COVER (NSS)
1шт.
104731C1
PLUG
1шт.
386194R1
PLUG,Cup, 3/4"
1шт.
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
1шт.
19962R1
DOWEL,3/8" x 3/4"
PIN
2шт.
398299R1
PIN
1шт.
382563R1
PIN
1шт.
386450R1
GUIDE
1шт.
445084
PLUG
1шт.
371544R1
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
10шт.
16
19962R1
DOWEL,3/8" x 3/4"
PIN, 3/8 x .750 pln hdn dowel
2шт.
17
398299R1
PIN
shift control pivot
1шт.
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
1/8-27 pln h/hd auto pipe
1шт.
18
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, #50, .392" Dia, E-Type
1шт.
19
380315R1
GASKET
rear frame front cover
1шт.
20
398300R3
ARM
ASSY, shift control
2шт.
21
398304R1
SPRING
shift control arm
1шт.
22
380115R2
ROLLER
detent
2шт.
Выбрано товаров: 38
