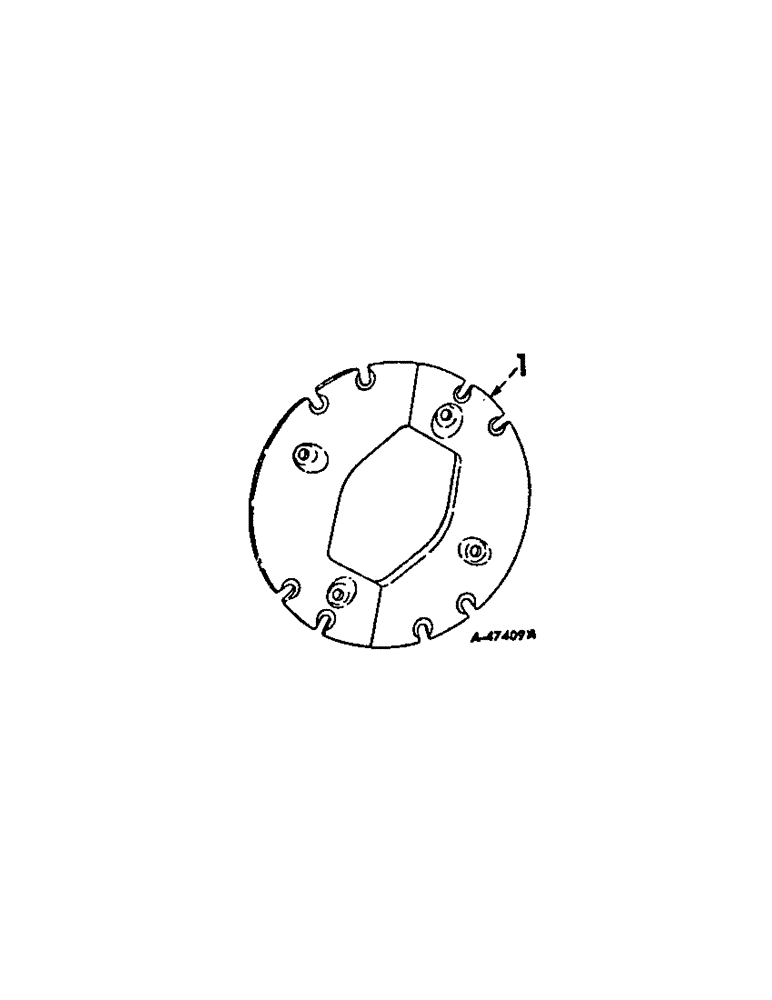

Запчасти Case IH 3688HC (15-5[A]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS Wheels & Traction

1

400078R2

WEIGHT

rear wheel, half weight approx. 75 lbs. each, (4) for first, second or third position

1шт.

401918R1

BOLT (SPREADER),3/4" - 10 x 6 1/2"

BOLT, 3/4-10 x 6-1/2 C-Z sq-hd mach, (8) used w/34 and 38 in. heavy duty wedge lock wheels, First position only

1шт.

375116R1

BOLT,3/4" - 10 x 4"

3/4-10 x 4 C-Z sq-hd mach, (8) used w/34 and 38 in. rear wheels, First position only

1шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1st position only

8шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

3/4-10 x 3-1/4 C-Z sq-hd mach, Second and third position only

8шт.

366112R1

WASHER

.781 x 1.250 x .105, Second and third position only

16шт.
