(15-2) - WHEELS AND TRACTION, FRONT WHEELS, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE SHAFT

Запчасти Case IH 3688HC (15-2) - WHEELS AND TRACTION, FRONT WHEELS, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE SHAFT Wheels & Traction

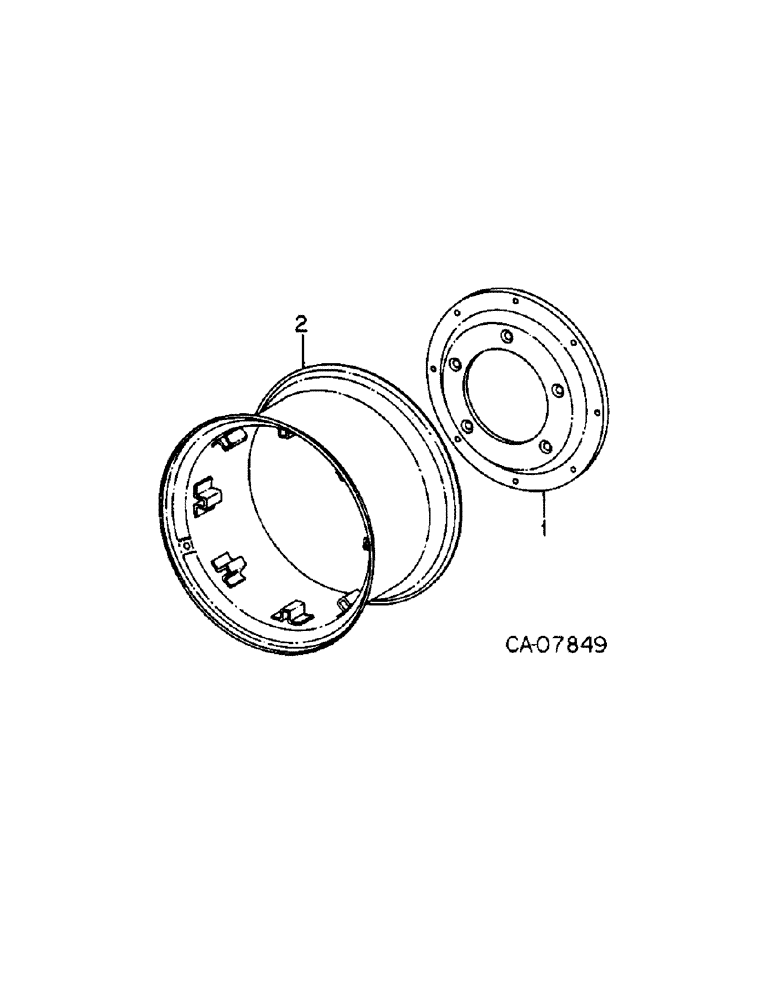

Схема запчастей Case IH 3688HC - (15-2) - WHEELS AND TRACTION, FRONT WHEELS, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE SHAFT Wheels & Traction
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1264531C1

DISC

ASSY, wheel, center

2шт.

2

1251882C1

DISC, WHEEL

RIM ASSY, front, 76-84 in. tread, 78-82 in. tread, 72-88 in. tread, 70-90 in. tread, For 13.6 x 24 x 14.9 x 24 tires

2шт.

890858R1

BOLT,Hex, 5/8" - 18 x 4", Gr 8

5/8-NF x 4 type 8

16шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

16шт.

225861

NUT,5/8"-18, G8

16шт.
