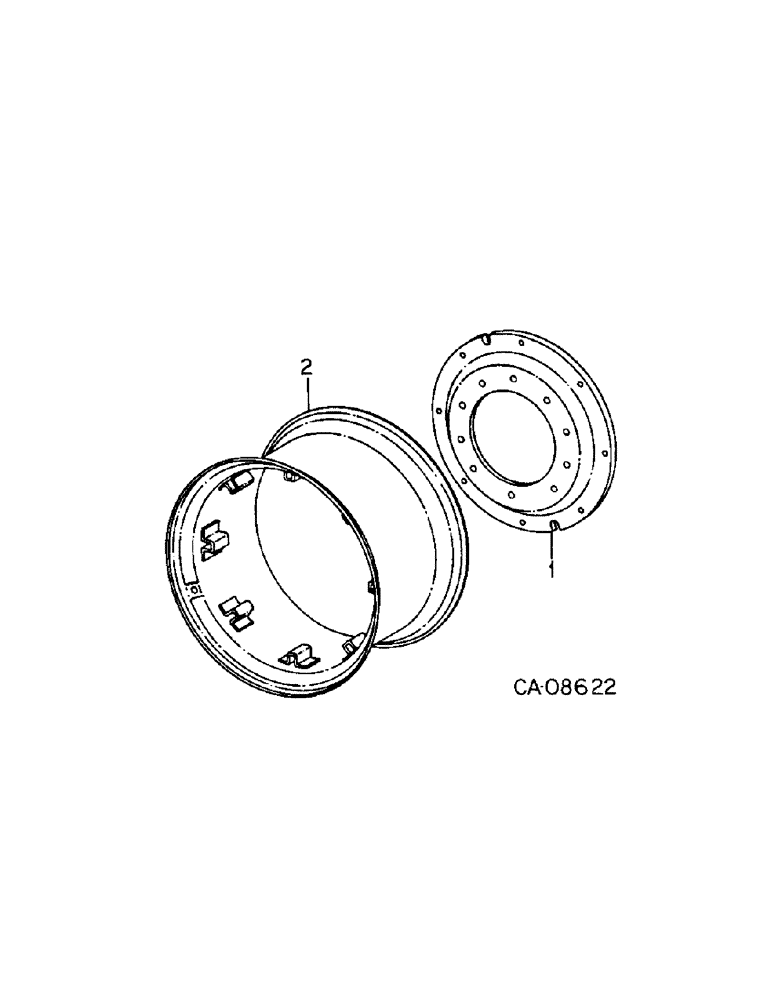

Запчасти Case IH 3688HC (15-2[A]) - WHEELS AND TRACTION, FRONT WHEELS, TRACTORS WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT Wheels & Traction

1

1280983C1

WHEEL

DISC ASSY, wheel center, 10 bolt hole, Replaces (5) countersunk bolt hole disc, 1264664C1 and (5) bolt hole disc, 1270959C1 by also ordering (20) bolts, 1277272C1

2шт.

2

1264666C2

RIM

ASSY, 12 inch, For 13.6-28 and 14.9-28 front tire, The following tread settings can be obtained, 62, 68, 72, 74, 78, 80 or 86

2шт.

890858R1

BOLT,Hex, 5/8" - 18 x 4", Gr 8

5/8-NF x 4 type 8

12шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

24шт.

225861

NUT,5/8"-18, G8

12шт.
