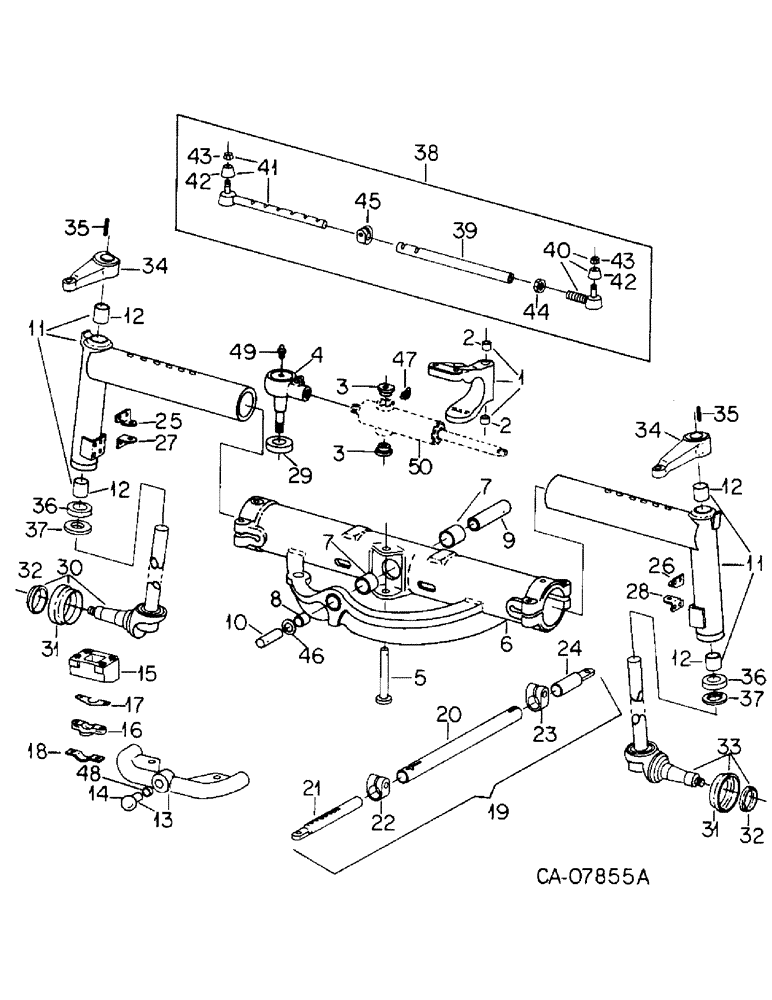

Запчасти Case IH 3688HC (14-4) - SUSPENSION, ADJUSTABLE FRONT AXLE, 3688HC TRACTORS Suspension
№
Артикул
Название
Примечание
Количество
1
71787C91
ARM
ASSY, center steering, Includes Ref. 2
1шт.
2
71788C1
BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L
2шт.
3
531237R1
CAP
trunnion
2шт.
531238R1
BOLT,Hex, 5/8" - 18 x 1.6", Cl 8
trunnion cap
2шт.
1270887C1
WASHER
trunnion cap bolt
2шт.
4
71820C91
END
ball joint rod
1шт.
614451R1
WASHER
1.031 x 1.750 x .105
1шт.
272322
WASHER
7/8-NF pln slt-thick type 5
1шт.
103399
PIN,5/32" x 1 3/4"
Split (Cotter), 5/32" x 1 3/4"
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
69981R1
LOCK NUT,3/8"-16, GB
NUT, 3/8 p/t lock type 5
1шт.
5
531239R1
PIN,50.8mm OD x 193.42mm L
center arm pivot
1шт.
19534R1
PIN,1/4" x 1 1/2", Coiled
1шт.
350818R1
O-RING,0.984" ID x 0.139" Width
1 x 1-1/4 class 5
2шт.
71421C1
WASHER
1.031 x 1.750 x .156 (Or as required)
3шт.
Q175
WASHER
1.031 x 1.750 x .042 pln (Or as required)
1шт.
6
120733C91
AXLE, REAR
AXLE ASSY, front w/stay rod
1шт.
24998R1
BOLT,Hex, 3/4" - 16 x 4", Gr 8
3/4-16 x 4 hex-hd type 8
4шт.
218404
NUT,3/4"-16, G8
3/4-NF pln type 8
4шт.
650247R1
HEADED PIN,19.05mm OD x 165.1mm L
PIN, 3/4 x 6.500 pln hd type 1
2шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
2шт.
7
531242R1
BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L
2шт.
8
482669R1
BUSHING,31.8mm ID x 34.95mm OD x 26.92mm L
rear pivot
1шт.
9
1280692C1
AXLE PIN
PIN, front axle pivot, tractors w/front bolster, 1280705C1
2шт.
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 hole lub
1шт.
1280683C1
AXLE PIN,12.7mm OD x 178mm L
PIN, 3/8 x 6-1/8 hd type 5
1шт.
934792R1
COTTER PIN,M3.2 x 20
PIN, 3.2 x 20 mm pln cot
2шт.
9
144216C1
AXLE PIN
PIN, front axle pivot, tractors w/front bolster, 130115C2
2шт.
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 hole lub
1шт.
28431R1
HEADED PIN,3/8" x 6 1/8"
PIN, 3/8 x 6-1/8 hd type 5
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
10
120732C1
PIN
axle rear pivot
1шт.
631252R1
HEADED PIN,9.53mm OD x 104.78mm L
PIN, 3/8 x 4.125 pln hd type 5
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
11
1253090C91
EXTENSION
ASSY, front axle
2шт.
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 hole lub
2шт.
12
358958R2
BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L
steering knuckle pivot pin
4шт.
13
1252752C1
ROD
ASSY, stay
1шт.
427546
JAM NUT,Jam, 1 3/8"-12, G5
1-3/8-NF pln jam type 5
2шт.
14
10546D
BALL
stay rod
1шт.
15
382375R1
SOCKET
stay rod ball
1шт.
271568
PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5
5/8 x 3-1/2 pln type 5
2шт.
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
5/8 x 5 pln type 5, Course Threads
2шт.
16
379953R1
CAP
stay rod ball socket
1шт.
17
379954R1
SHIM
stay rod ball socket cap (Or as required)
1шт.
18
380008R1
PLATE ASSY.
PLATE, stay rod ball socket cap lock
1шт.
19
ROD ASSY, auxiliary stay, Not serviced separately, Order Ref. 20 - 24
2шт.
20
382872R1
TUBE,1.25" ID, 1.635" OD, 40.9" Length
auxiliary stay rod
2шт.
21
382378R1
END
stay rod adjustable
2шт.
14-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5
3/4-NF x 2-1/2 pln type 5
2шт.
218197
NUT,3/4"-16, G5
3/4-NF pln type 5
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
22
359003R1
CLAMP
stay rod adj end
2шт.
114-614
BOLT,Hex, 5/8" - 18 x 3", Gr 5
5/8-NF x 3 pln type 5
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
2шт.
23
359004R1
CLAMP
stay rod adj end
2шт.
114-614
BOLT,Hex, 5/8" - 18 x 3", Gr 5
5/8-NF x 3 pln type 5
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
2шт.
24
382376R1
BOLT
END, stay rod threaded
1шт.
14-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5
3/4-Nf x 2-1/2 pln type 5
2шт.
218197
NUT,3/4"-16, G5
3/4-NF pln type 5
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
25
382381R1
SUPPORT
BRACKET, aux stay rod frt upper LH
1шт.
359006R1
BOLT
BOLT, aux stay rod bracket mounting
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
25-118
NUT,1/2"-20, G5
1/2-NF pln type 5
2шт.
26
382382R1
BRACKET
aux stay rod frt upper RH
1шт.
359006R1
BOLT
BOLT, aux stay rod bracket mounting
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
25-118
NUT,1/2"-20, G5
1/2-NF pln type 5
2шт.
27
382383R1
SUPPORT
BRACKET, aux stay rod frt lower LH
1шт.
359006R1
BOLT
BOLT, aux stay rod bracket mounting
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
25-118
NUT,1/2"-20, G5
1/2-NF pln type 5
2шт.
28
382384R1
SUPPORT
BRACKET, aux stay rod frt lower RH
1шт.
359006R1
BOLT
BOLT, aux stay rod bracket mounting
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
25-118
NUT,1/2"-20, G5
1/2-NF pln type 5
2шт.
29
71822C1
SEAL
dust
1шт.
30
384257R93
STEERING KNUCKLE
KNUCKLE ASSY, steering LH, Includes Ref. 31 and 32
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
31
48701D
SHIELD
front wheel dust
2шт.
32
370254R91
OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk
front wheel oil
2шт.
33
384258R93
STEERING KNUCKLE
KNUCKLE ASSY, steering RH, Includes Ref. 31 and 32
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
34
1252755C1
ARM
steering knuckle
2шт.
223815
BOLT,Hex, 5/8" - 18 x 3", Gr 8
5/8-NF x 3 type 8
2шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
225861
NUT,5/8"-18, G8
2шт.
35
40093D
WOODRUFF KEY,#127, 1/4" x 2 1/8", HT
KEY, 1/4 x 2-1/8 SAE 127 Woodruff, steering knuckle arm
2шт.
36
405831R91
BEARING
steering knuckle pivot thrust
2шт.
37
15943DA
SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk
Steering knuckle pivot felt
2шт.
38
ROD ASSY, tie, Not serviced as assembly, Order Ref. 39 - 45
2шт.
39
384257R93
STEERING KNUCKLE
KNUCKLE ASSY, steering LH, Includes Ref. 31 and 32
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
40
384006R92
END
ASSY, tie rod RH thd
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
2шт.
41
359984R93
TIE-ROD
ASSY, tie rod welded end
2шт.
42
358900R1
SEAL
COVER, dust
4шт.
43
125267
NUT
5/8-NF slt type 5
4шт.
44
374062R1
JAM NUT
NUT, tie rod tube jam
2шт.
45
359986R1
CLAMP
tie rod, adj end
2шт.
414-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
1/2-NF x 2-1/4 pln type 5
2шт.
25-118
NUT,1/2"-20, G5
1/2-NF pln type 5
2шт.
46
63101C2
WASHER, axle thrust
1шт.
47
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
FITTING, 3/16 hole 65 deg. lub, trunnion lube
2шт.
48
534015R1
SPACER, stay rod ball socket
1шт.
49
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
50
CYLINDER, power steering, For components see list of parts under details of power steering cylinder, group 10
1шт.
Выбрано товаров: 112
