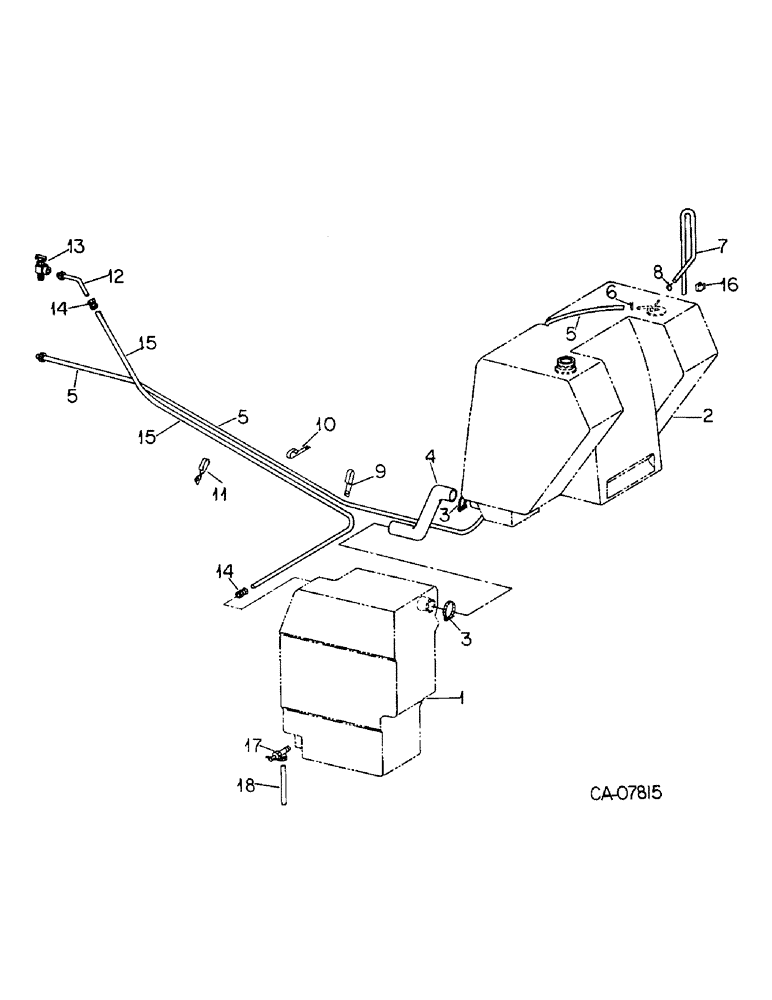

Запчасти Case IH 3688HC (12-15) - POWER, AUXILIARY FUEL TANK CONNECTIONS, 3688 AND 3688HC TRACTORS WITH AUXILIARY FUEL TANK Power

1

TANK ASSY, auxiliary fuel, Refer to auxiliary fuel tank and support in this group

1шт.

2

TANK ASSY, fuel, Refer to main fuel tank and supports in this group

1шт.

3

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 shoe type F hose

2шт.

4

130275C2

FUEL HOSE

HOSE, aux fuel tank

1шт.

5

TUBE, fuel line return, Use 102 in. of 3/8 OD nylon tube from bulk roll marked 74813C1

1шт.

6

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, no. 6 type E spring wire hose

1шт.

7

TUBE, fuel tank vent, Use 48 in. of 1/4 OD nylon tube from bulk roll marked 74812C1

1шт.

8

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, no 4 type E spring wire hose

1шт.

9

120160C2

CLIP

fuel lines

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

10

380053R1

CLIP, fuel lines

1шт.

11

120161C1

CLIP

fuel lines

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

12

120405C1

FUEL TUBE

TUBE ASSY, fuel line

1шт.

13

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE, fuel tank shut-off

1шт.

14

137597C1

ADAPTER,11/16" - 20

fuel line

2шт.

15

TUBE, aux tank shut-off valve to fuel filters, Use 31 in. of 1/2 nylon tube from bulk roll marked 74814C1

1шт.

16

374903R1

CLIP

fuel tank vent tube

1шт.

17

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

18

TUBE, aux tank drain, Use 2.25 in. of 3/8 OD nylon tube from bulk roll marked 74813C1

1шт.
