(12-07) - POWER, FUEL PIPE AND CONNECTIONS, TRACTORS WITHOUT AUXILIARY FUEL TANK

Запчасти Case IH 3688HC (12-07) - POWER, FUEL PIPE AND CONNECTIONS, TRACTORS WITHOUT AUXILIARY FUEL TANK Power

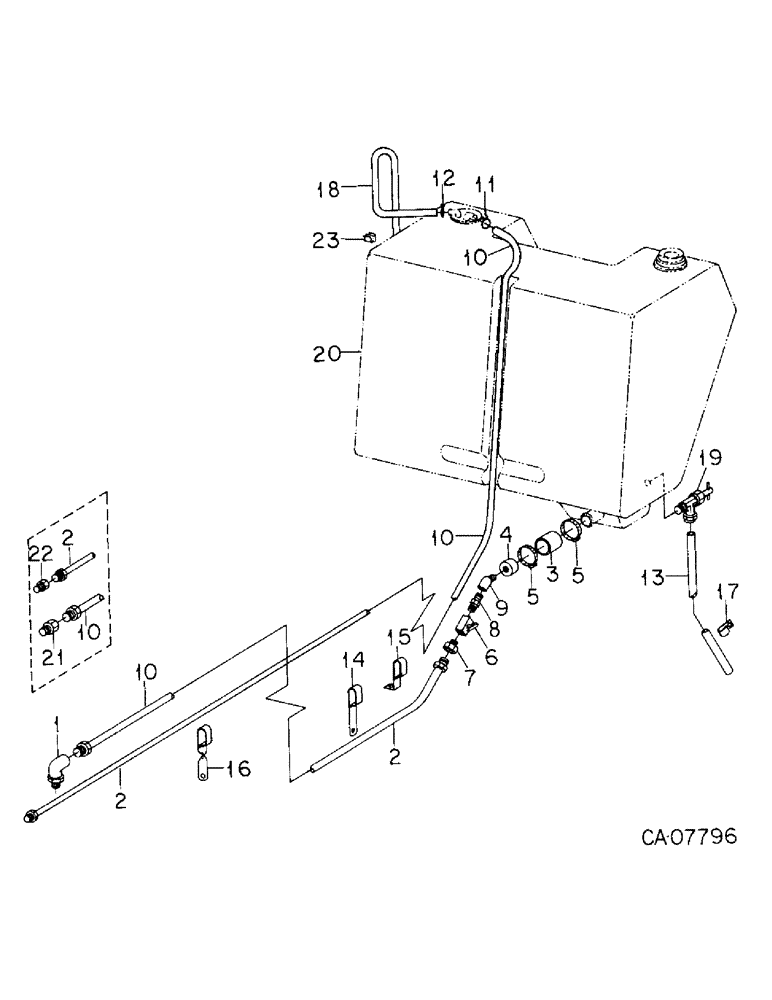

Схема запчастей Case IH 3688HC - (12-07) - POWER, FUEL PIPE AND CONNECTIONS, TRACTORS WITHOUT AUXILIARY FUEL TANK Power
20
10
16
5
14
18
10
8
9
5
11
7
10
2
23
12
2
15
13
3
19
22
6
10
2
21
1
4
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

104469C1

ELBOW

male 90 deg. 1/2 tube, fuel tube filter end, 3688 and 3688HC tractors

1шт.

2

TUBE, tank to filter, Use 56 in. of 1/2 OD nylon tube from bulk roll marked 74814C1

1шт.

3

130345C1

FUEL HOSE

HOSE, fuel outlet

1шт.

4

130346C1

ADAPTER

fuel line

1шт.

5

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, fuel tank outlet hose

2шт.

6

130306C1

VALVE

shut off

1шт.

7

184820H1

CONNECTOR, ELEC

CONNECTOR, 1/2 x 1/4 male

1шт.

8

443978

FITTING,1/4"-18 NPTF, Brass

NIPPLE, 1/4-18 pln auto pipe, or

1шт.

8

443979

HYD CONNECTOR

NIPPLE, 1/4-18 znp auto pipe

1шт.

9

444054

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

1/4-18 pln auto 45 deg. pipe street

1шт.

10

TUBE, fuel line return, Use 102 in. of 3/8 OD nylon tube from bulk roll marked 74813C1

1шт.

11

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, fuel line return

1шт.

12

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, fuel tank vent tube, tractors equipped w/cab or rops

1шт.

12

118028C1

CAP, fuel tank vent seal, tractors equipped w/non-rops

1шт.

13

TUBE, fuel drain line, Use 18 in. of 3/8 OD nylon tube from bulk roll marked 74813C1

1шт.

14

380053R1

CLIP, fuel lines, double

1шт.

15

120160C2

CLIP

fuel lines, angle double

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

16

120161C1

CLIP

fuel lines, twisted double

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

17

384558R1

CLIP

fuel tank drain tube

1шт.

18

TUBE, fuel tank vent, Use 48 in. of 1/4 OD nylon tube from bulk roll marked 74812C1

1шт.

19

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

20

TANK, main fuel, Refer to fuel tank and supports this group

1шт.

21

184820H1

CONNECTOR, ELEC

CONNECTOR, 1/2 x 1/4 male supply, 3088 and 3288 tractors

1шт.

22

133049H1

CONNECTION

CONNECTOR, 3/8 x 1/4 male return, 3088 and 3288 tractors

1шт.

23

374903R1

CLIP

fuel tank vent tube

1шт.
