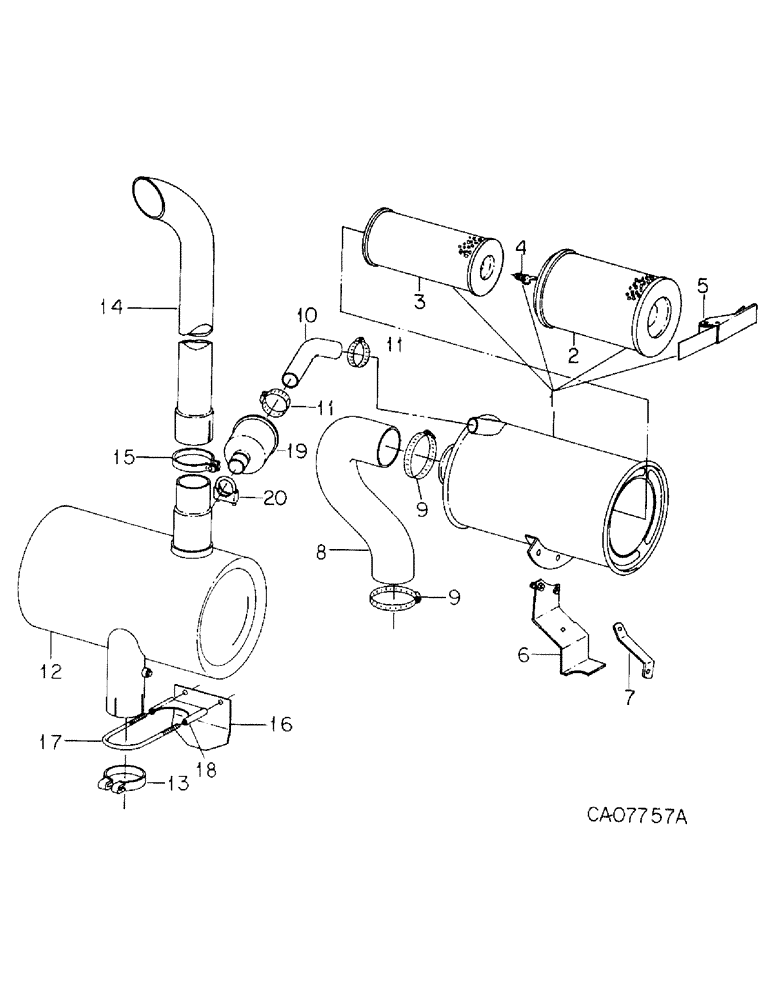

Запчасти Case IH 3688HC (12-03) - POWER, AIR CLEANER AND EXHAUST, 3688 AND 3688HC TRACTORS Power

1

1265513C91

CLEANER

ASSY, air, Replaces 130583C92

1шт.

2

71912C2

AIR FILTER

ELEMENT ASSY, primary

1шт.

3

529852R5

AIR FILTER

ELEMENT ASSY, secondary

1шт.

4

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

5

71913C1

LOCK VALVE

LATCH ASSY

1шт.

6

1264532C1

BRACKET

ASSY

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

9/16 x 1 pln type 5

1шт.

933571R1

WASHER,M14 x 28 x 2.5

15.8 x 28 x 2.5 mm

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

7

148898C2

BRACE

SUPPORT

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

1шт.

933347R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm pln

1шт.

8

130262C1

HOSE

air cleaner outlet

1шт.

9

146569C1

CLAMP

air cleaner outlet hose

2шт.

10

130684C1

HOSE

aspirator, tractor w/o check valve

1шт.

10

1253195C1

HOSE

aspirator, tractor w/check valve

1шт.

11

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, no. 20 type F hose

2шт.

12

1265515C1

MUFFLER

exhaust, Replaces 130452C2

1шт.

13

681515C1

CLAMP,82.55mm

exhaust muffler

1шт.

931537R1

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

M10 x 85 class 8.8

1шт.

30359R1

NUT

M10 pln class 10

1шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

2шт.

933965R1

LOCK WASHER,M10

1шт.

14

146520C2

PIPE

exhaust

1шт.

15

663432C1

CLAMP,69.85mm - 82.65mm

exhaust pipe

1шт.

30483R1

BOLT (SPREADER),Hex, M10 x 40, 8.8, Full Thd

BOLT, M10 x 40 class 8.8

1шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

2шт.

933965R1

LOCK WASHER,M10

1шт.

30359R1

NUT

M10 pln class 10

1шт.

16

1252454C1

SHIELD

1шт.

17

535992R1

BOLT (SPREADER),3/8" - 16 x 4.8"

CLAMP, U-bolt

1шт.

18

535989R1

CLAMP

saddle

1шт.

102635

NUT,3/8"-16, G5

2шт.

19

1265464C1

VALVE

ASSY, check

1шт.

20

117586C1

CLAMP

check valve

1шт.
