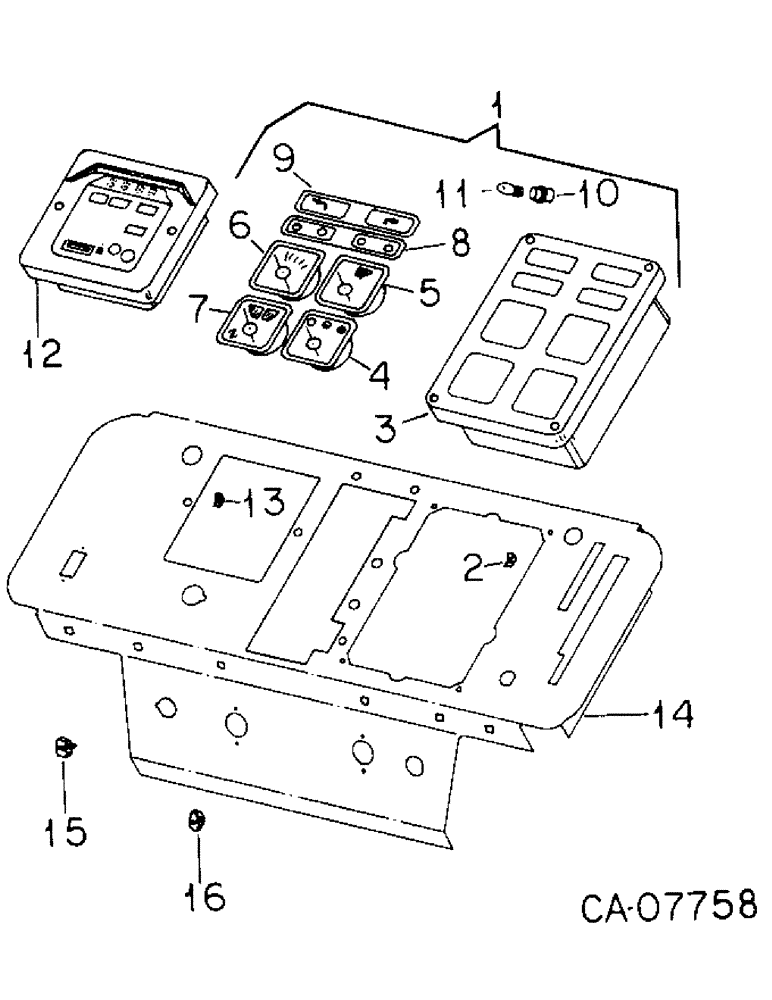

Запчасти Case IH 3688HC (11-02) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES, TRACTORS WITH DATA CENTER IA Instruments

1

1252533C91

CLUSTER

CLUSTER ASSY, instrument, Includes Ref. 3 - 11

1шт.

2

103957C1

NUT

NUT, J-shape spring

2шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, 10-16 x 1 o/hdcr tap w/polyseal finish

4шт.

3

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

4

121604C1

ELECTRICAL GAUGE

GAGE, fuel, receiver

1шт.

5

121605C2

ELECTRICAL GAUGE

GAGE, temperature, receiver

1шт.

6

121606C1

ELECTRICAL GAUGE

GAGE, oil pressure, receiver

1шт.

7

121607C1

METER

VOLTMETER

1шт.

8

1252610C1

LENS

LENS, warning lights

1шт.

9

121610C1

LENS

LENS, turn signal

1шт.

10

121611C1

SOCKET

SOCKET ASSY, instrument cluster

8шт.

11

20627R1

BULB,C2F, #194, 14V

LAMP, type C-2F trade #194

8шт.

1252486C2

ELECTRICAL GAUGE

ELECTRICAL GAUGE, new

1шт.

12

1252488C1

REMAN-ELECT GAUGE

GAGE, digital data center IA, renewed, Also order product graphic

1шт.

1935041C1

CORE-MONITOR

Return Number, ELECTRICAL GAUGE - for N.A. Only

1шт.

1252419C1

PRODUCT GRAPHIC

PRODUCT GRAPHIC, digital data gage

1шт.

13

103957C1

NUT

NUT, J-shape spring

2шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, 10-16 x 1 o/hdcr tap w/polyseal finish

2шт.

14

137860C93

PANEL

PANEL ASSY, instrument, tractors w/o tilt steering

1шт.

14

148433C2

PANEL

PANEL ASSY, instrument, tractors w/tilt steering

1шт.

15

104035C1

FASTENER

FASTENER, upper instr hsg spacer, nut

1шт.

16

104036C1

NUT

NUT, instrument housing mtg

10шт.

160682

SCREW,Cross Pan Hd, 5/16" x 1/2"

SCREW, 5/16 x 1/2 phc p/hd cr mach

4шт.

933233R1

SNAP RING,M45, Int

PLUG, M18 x 1.5 hex

1шт.

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, , Mechanical tach drive M18 x 24 x 1.5

1шт.

432327

HOLE PLUG BUTTON,1"

PLUG, 1.0 hole dia pln button, firewall

1шт.

28441R1

PLUG, 11/16 hole dia ble but, EGT light hole

1шт.
